Diagnostic Procedure

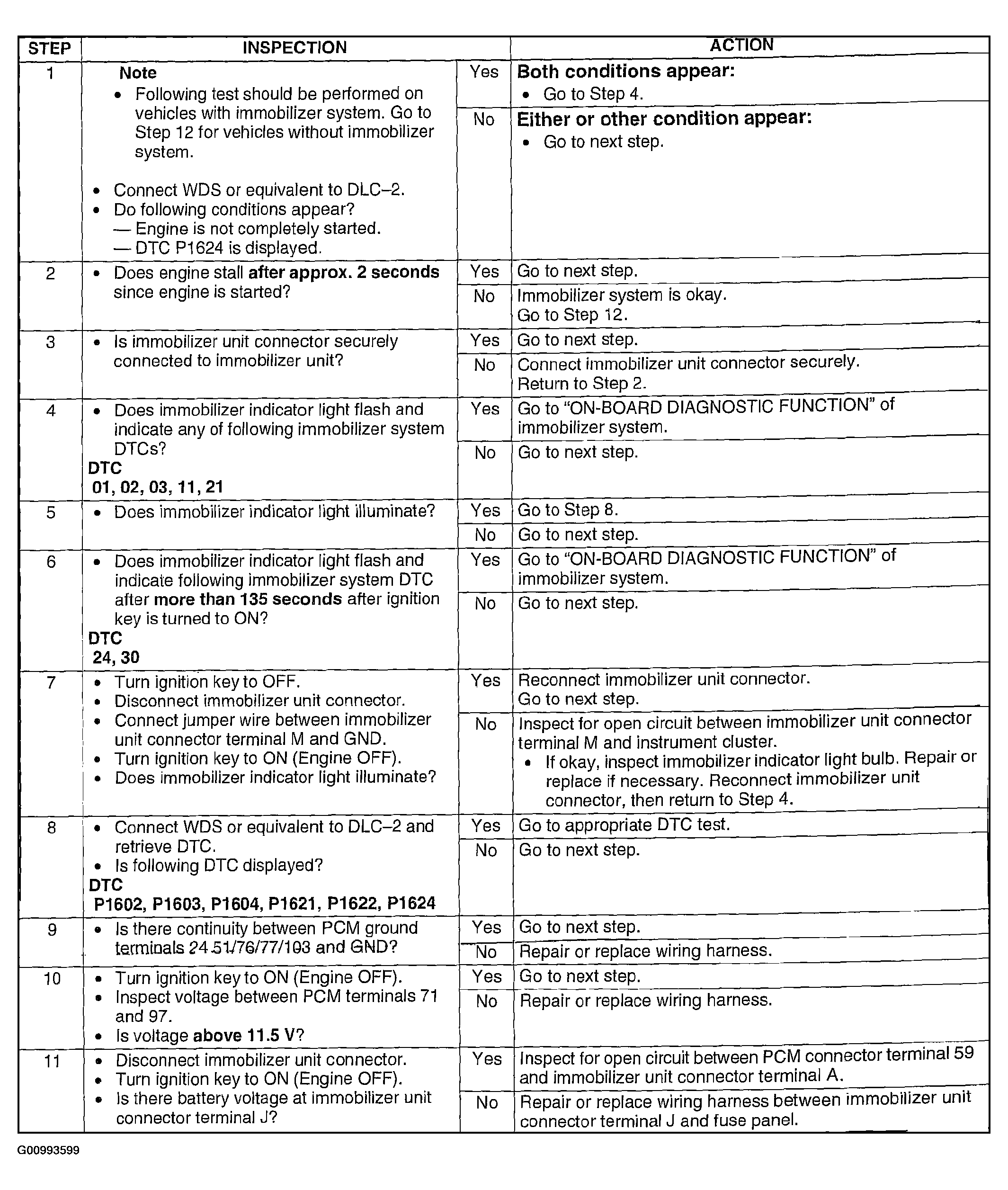

Fig 1: Symptom No.5 Diagnostic Procedure Chart (Step 1-11)
Courtesy of MAZDA MOTORS CORP.

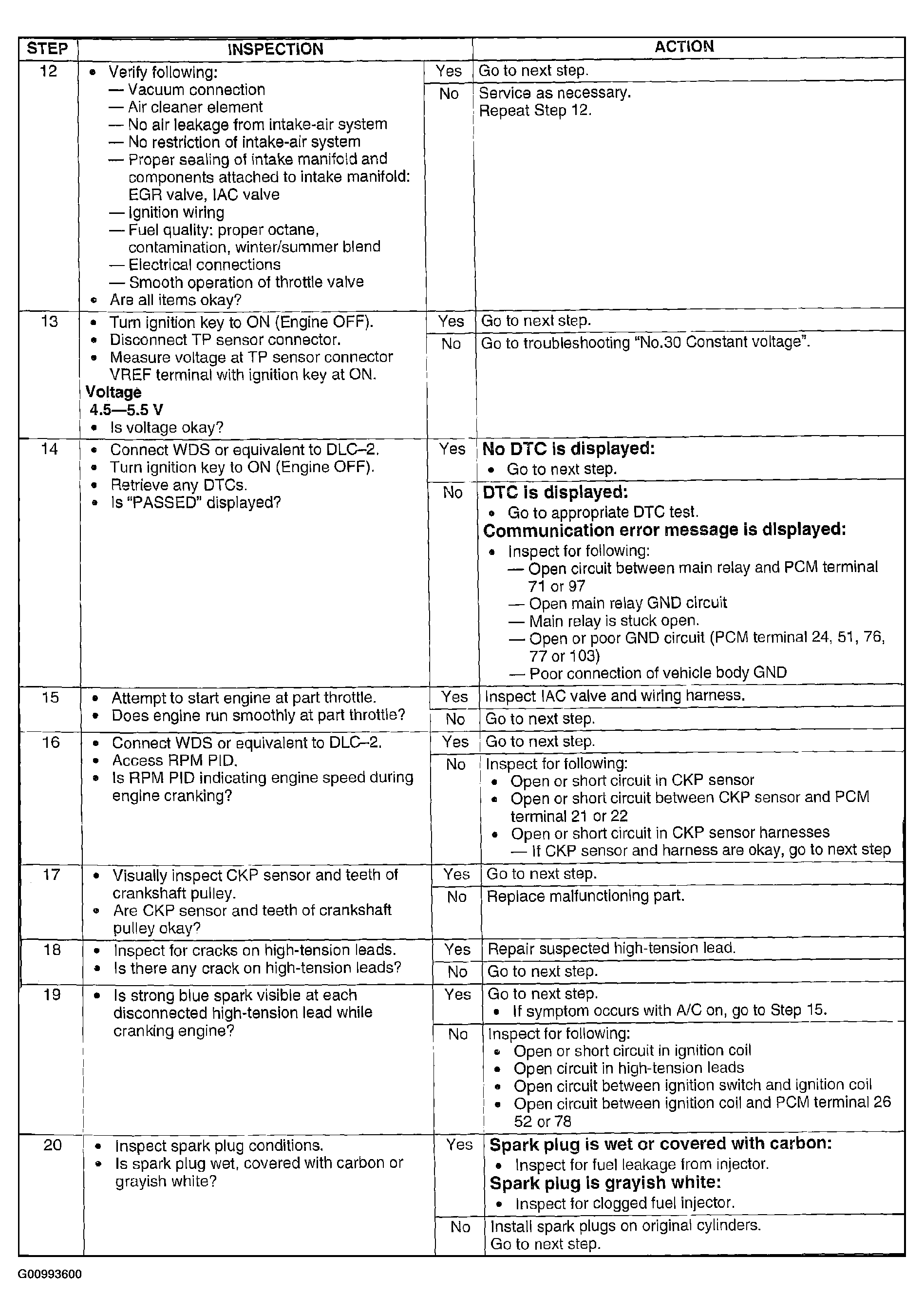

Fig 2: Symptom No.5 Diagnostic Procedure Chart (Step 12-20)
Courtesy of MAZDA MOTORS CORP.

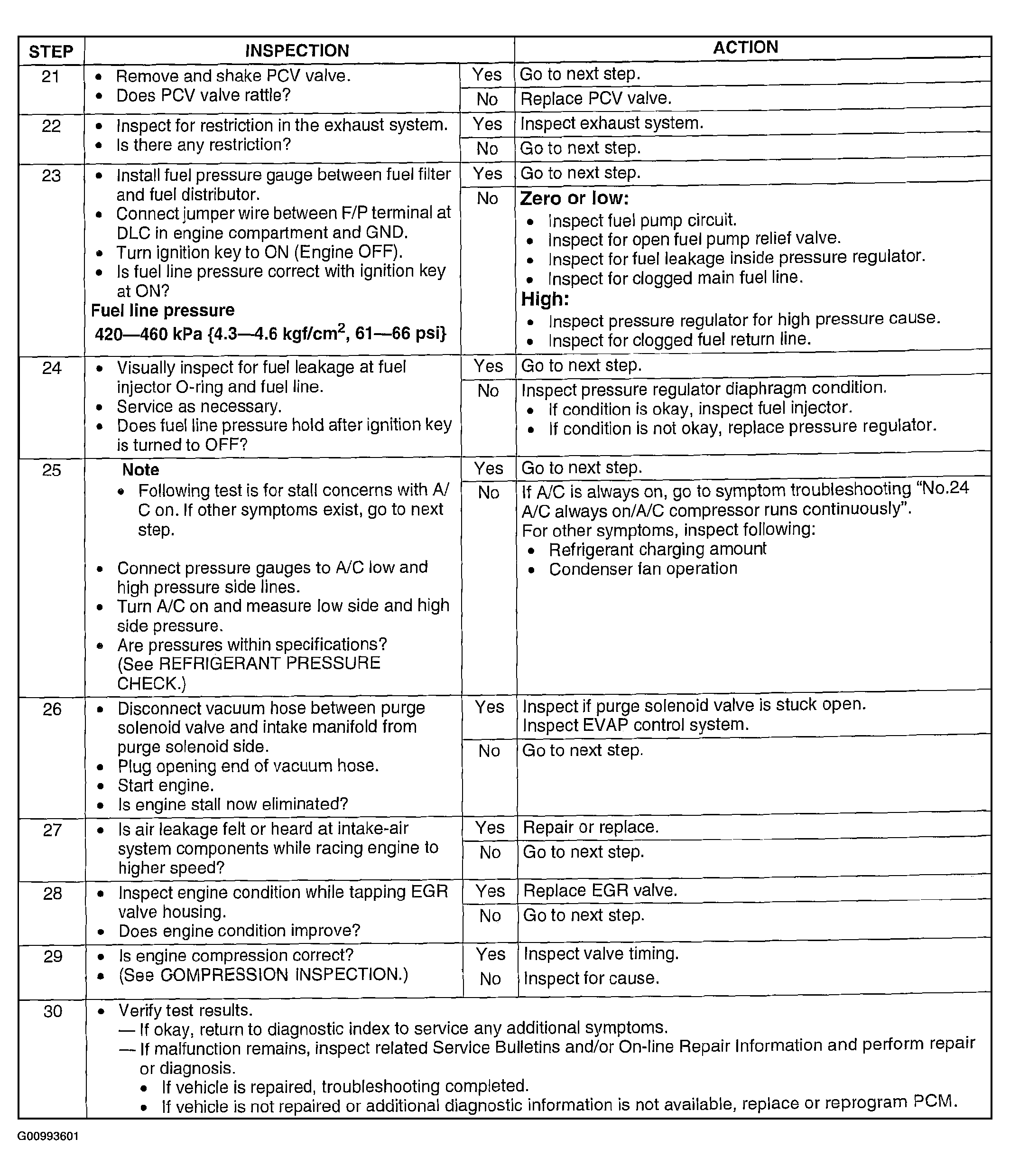

Fig 3: Symptom No.5 Diagnostic Procedure Chart (Step 21-30)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
