Part-Side Connector

NOTE: Part names are shown only when there are multiple connector drawings.

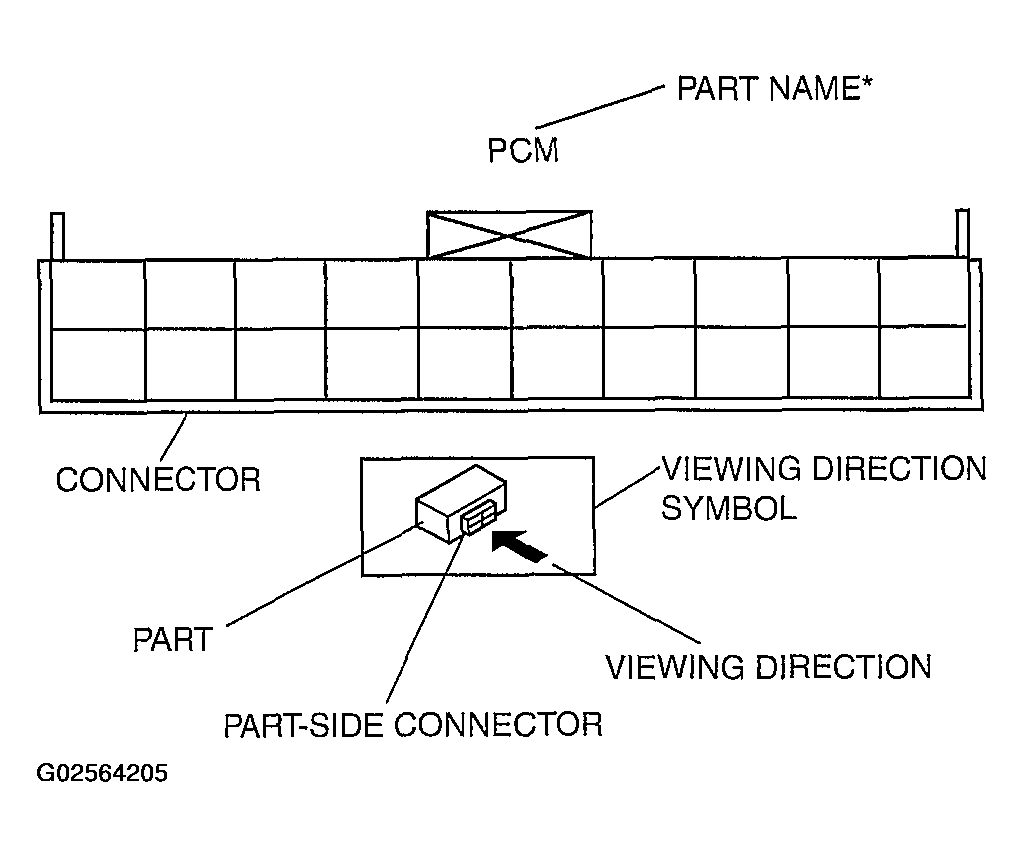

The viewing direction of part-side connectors is from the terminal side.

Fig 1: Viewing Direction Of Part-Side Connector

Courtesy of MAZDA MOTORS CORP.
