Front Climate Control Unit Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the air mix and airflow mode wires from each wire clamp and link.
  3. Remove the meter hood.
  4. After removing the screws, pull the front climate control unit out and disconnect the connectors.
  5. Remove the front climate control unit.

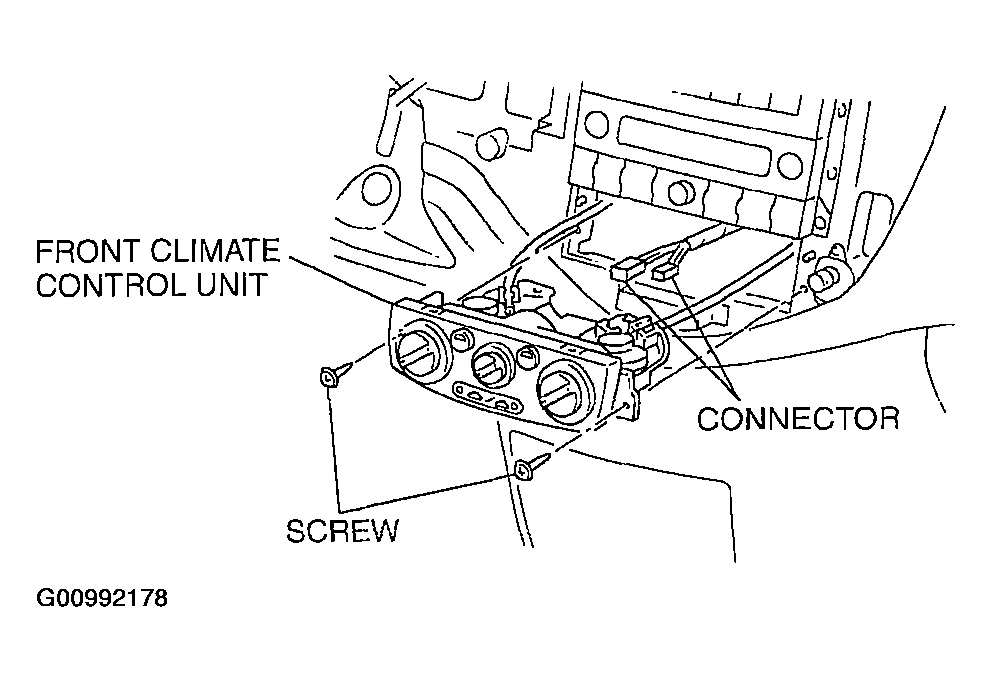

    Fig 1: Removing Front Climate Control Unit
    G00992178Courtesy of MAZDA MOTORS CORP.
