Driver's Seat

Disconnect the buckle switch connector.
Inspect for continuity between the buckle switch terminals using an ohmmeter.
- If not as specified, replace the front buckle.

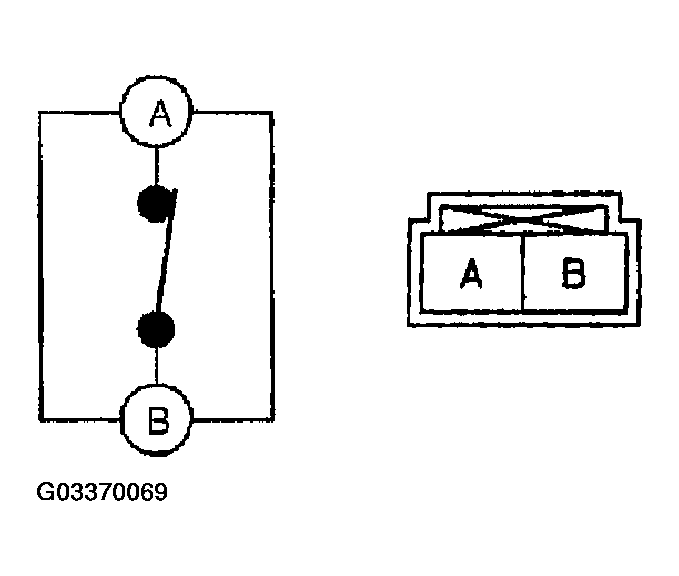

Fig 1: Disconnecting Buckle Switch Connector
Courtesy of MAZDA MOTORS CORP.

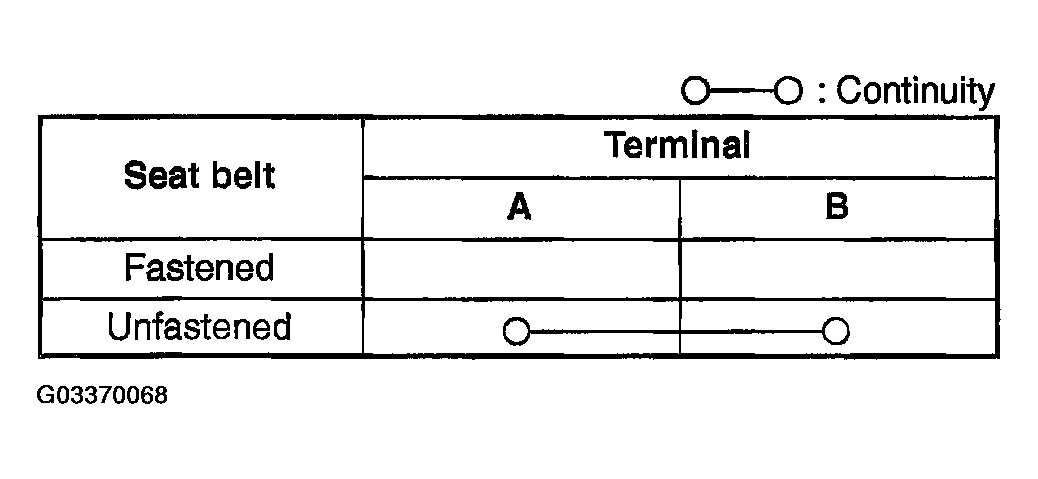

Fig 2: Inspecting For Continuity Between Buckle Switch Terminals
Courtesy of MAZDA MOTORS CORP.
