Shaft Component Assembly Note

  1. Assemble the shaft component using the SST  .

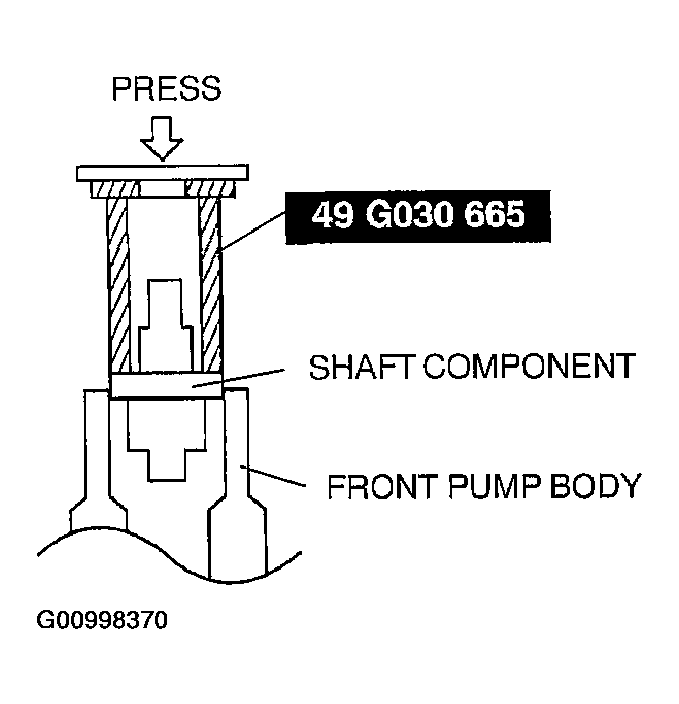

    Fig 1: Assembling Shaft Component
    G00998370Courtesy of MAZDA MOTORS CORP.
