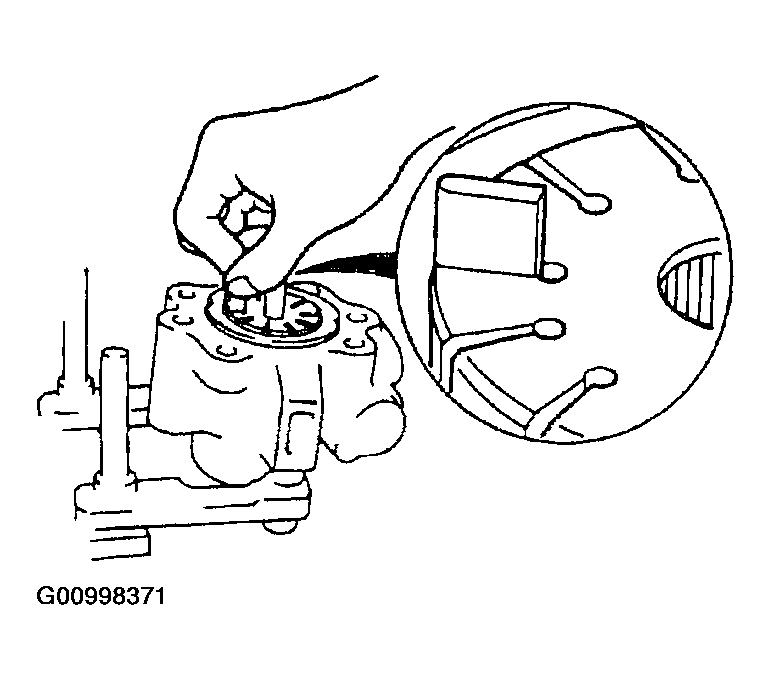

Vane Assembly Note
- Place the vanes in the rotor with the rounded edges contacting the cam.
Courtesy of MAZDA MOTORS CORP.
