Tie-Rod End Boot Assembly Note
- Wipe the grease of the ball joint.
- Put a small amount of lithium-based grease into a new dust boot.

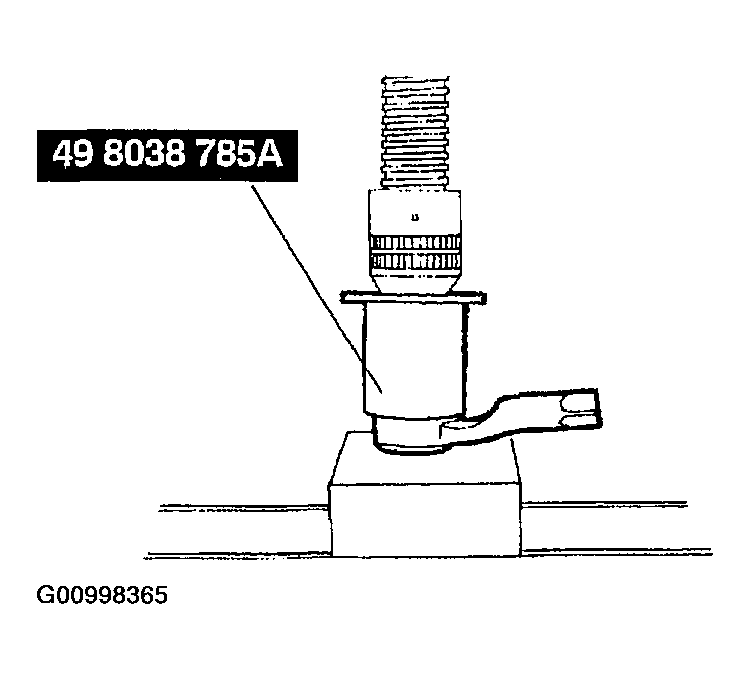

- Install the dust boot onto the tie-rod end using the SST
and a press.
- Wipe away any excess grease.
Courtesy of MAZDA MOTORS CORP.
