Planetary Gear Description: Operation: Notes

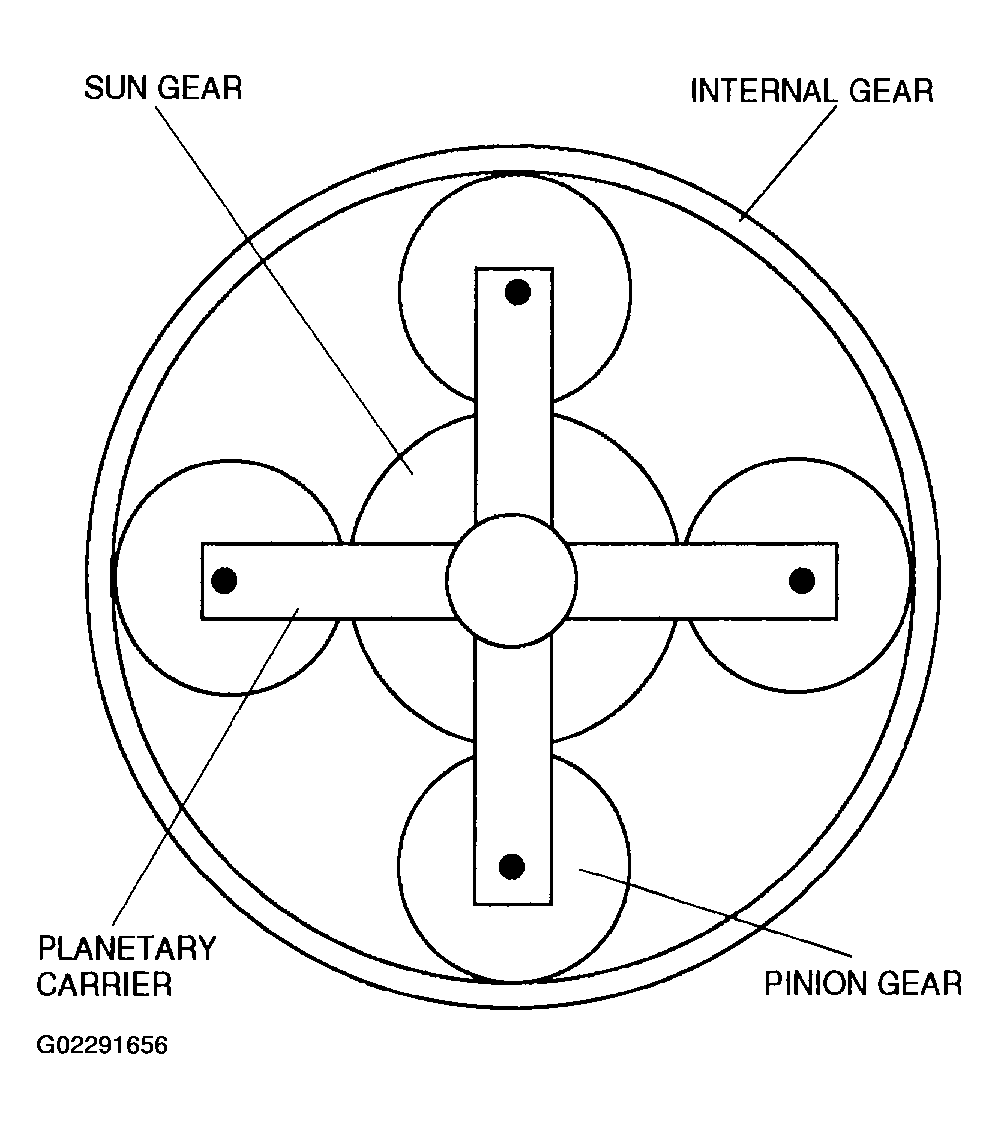

- The planetary gear works as a transmission when the sun gear and the internal gear are engaged.
- The sun gear, installed inside of the pinion gears, and the internal gear, installed outside of the pinion gears, are engaged with their respective gears.
- The sun gear and the internal gear rotate on the center of the planetary gear.
Courtesy of MAZDA MOTORS CORP.

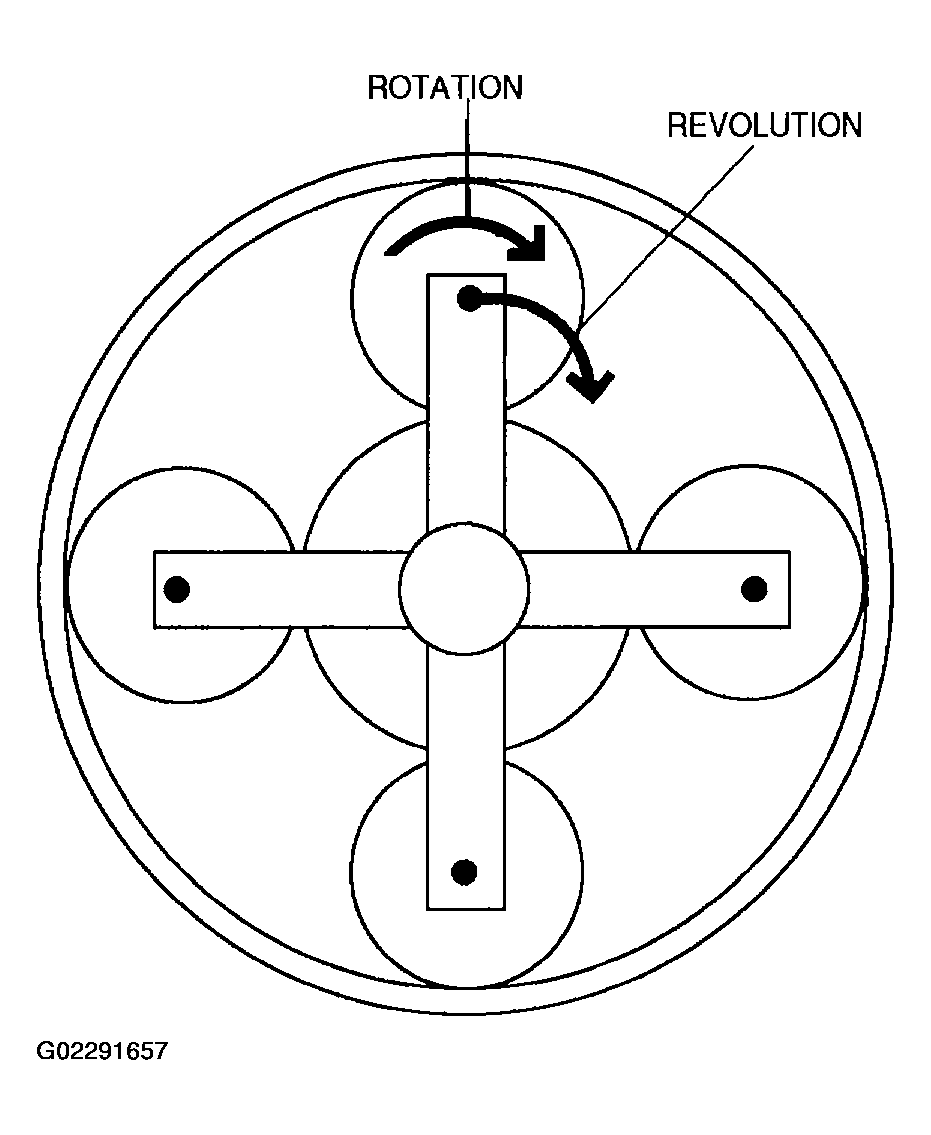

- The pinion gears turn in the following two ways:
- On their own centers ("rotation").
- On the center of the planetary gear ("revolution").
Courtesy of MAZDA MOTORS CORP.
