Automatic Transaxle Basic Inspection

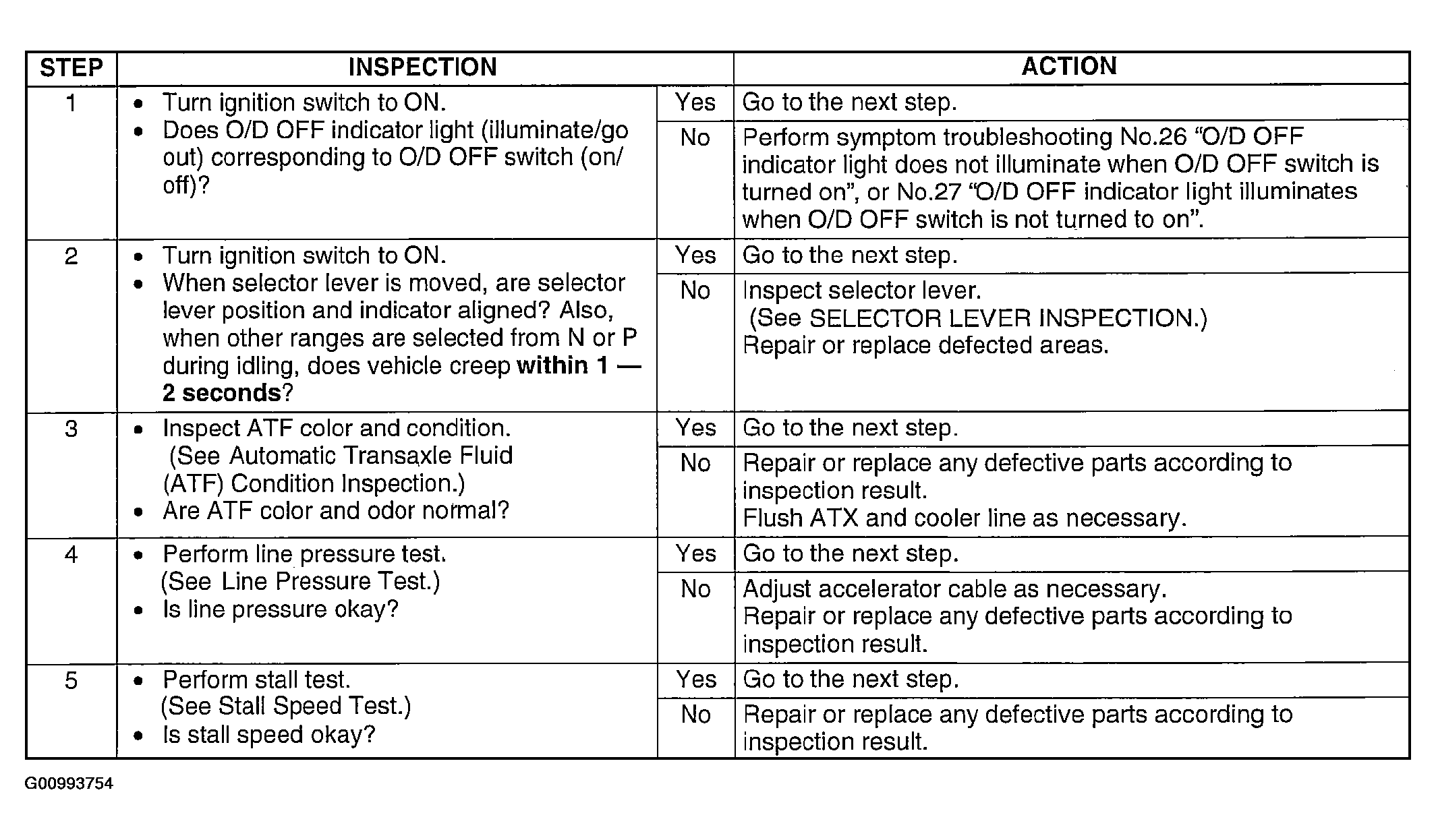

Fig 1: Automatic Transaxle Basic Inspection Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

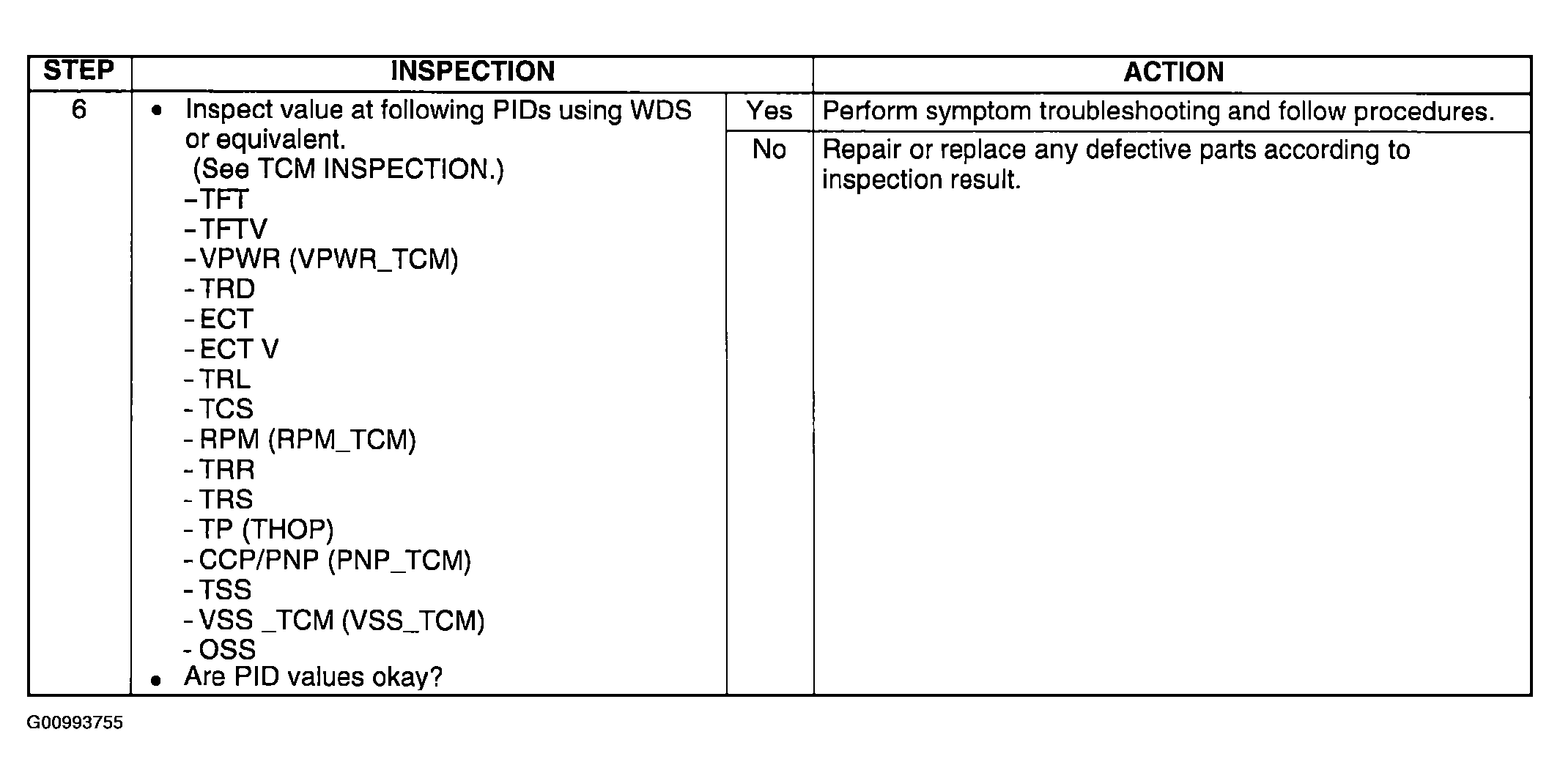

Fig 2: Automatic Transaxle Basic Inspection Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
