Road Test
>>
Shift Schedule Test
>>
Vehicle Speed At Shift Point Table
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

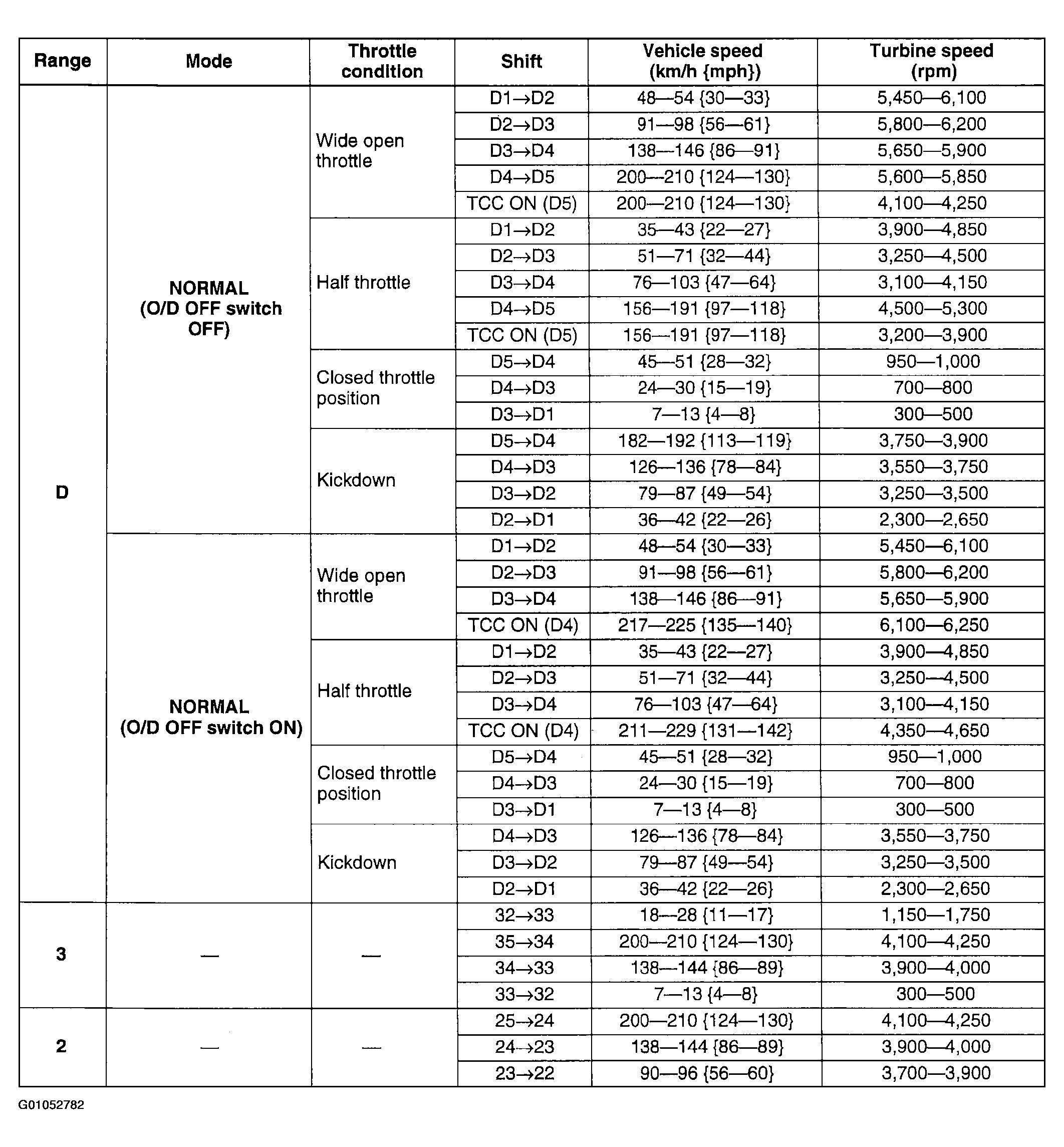

Vehicle Speed At Shift Point Table
Fig 1: Vehicle Speed At Shift Point Table
Courtesy of MAZDA MOTORS CORP.
