Road Test
>>
Typical Shift Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Typical Shift Diagram

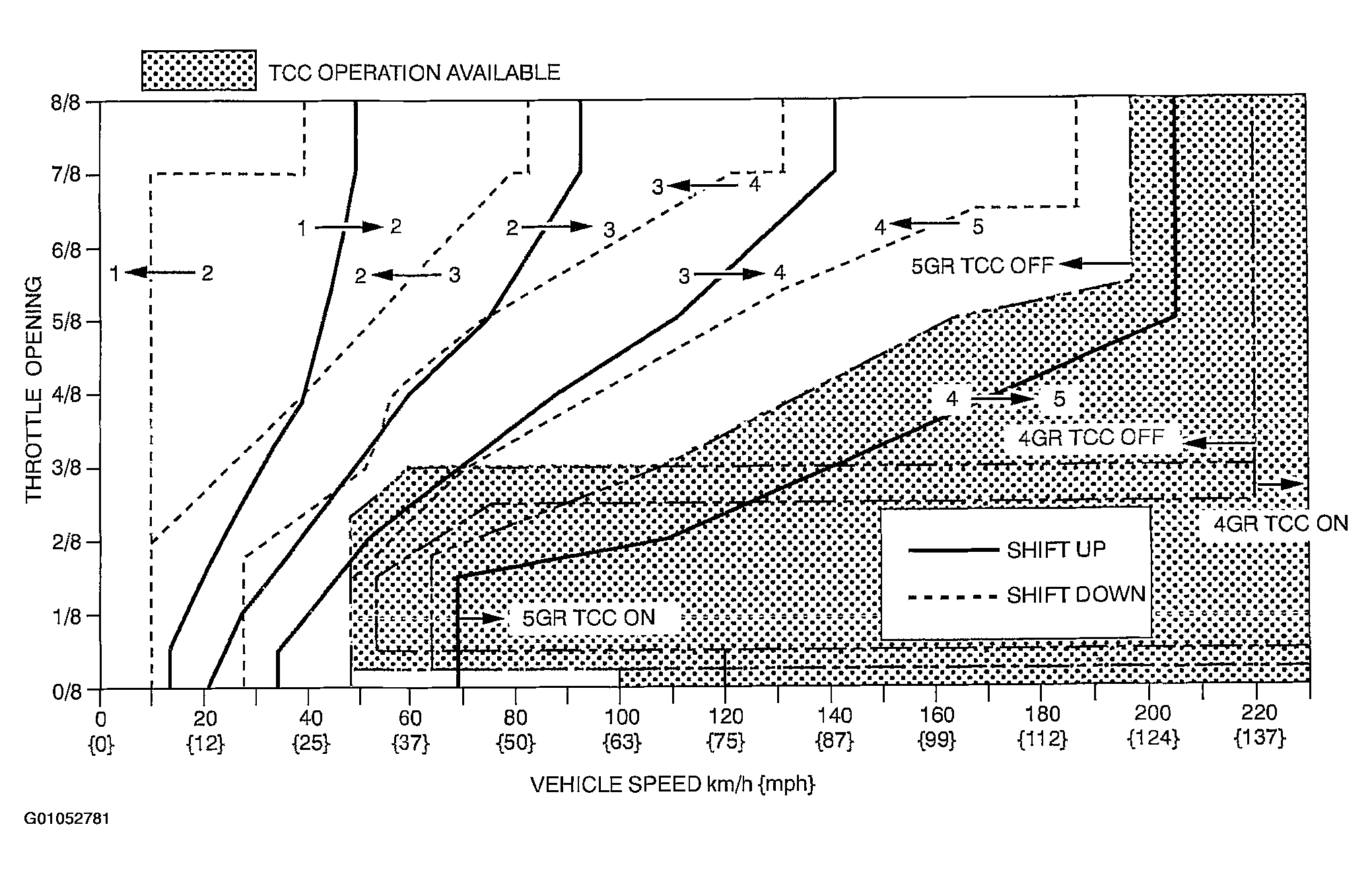

Fig 1: Typical Shift Diagram
Courtesy of MAZDA MOTORS CORP.
