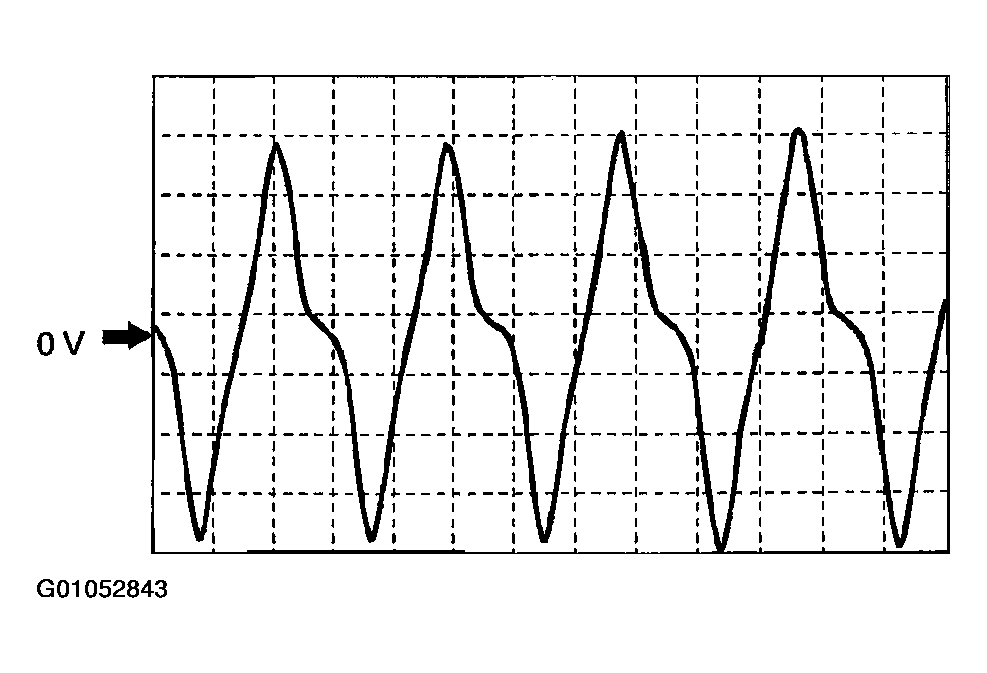

Vehicle Speedometer Sensor Signal
- TCM terminal: 1M (+)-IV (-).
- Oscilloscope setting: 4 V/DIV (Y) 1 ms/DIV (X).
- Measuring condition: Vehicle speed at 40 km/h (25 MPH).
Courtesy of MAZDA MOTORS CORP.
