Normal Scan Data Values

PID/Data Monitor and Record Procedure
1. Connect WDS or equivalent to the vehicle DLC-2 16-pin connector located on the left side of the steering column.
2. Access and monitor PIDs by WDS or equivalent.

Part 1:

Part 2:

Part 3:

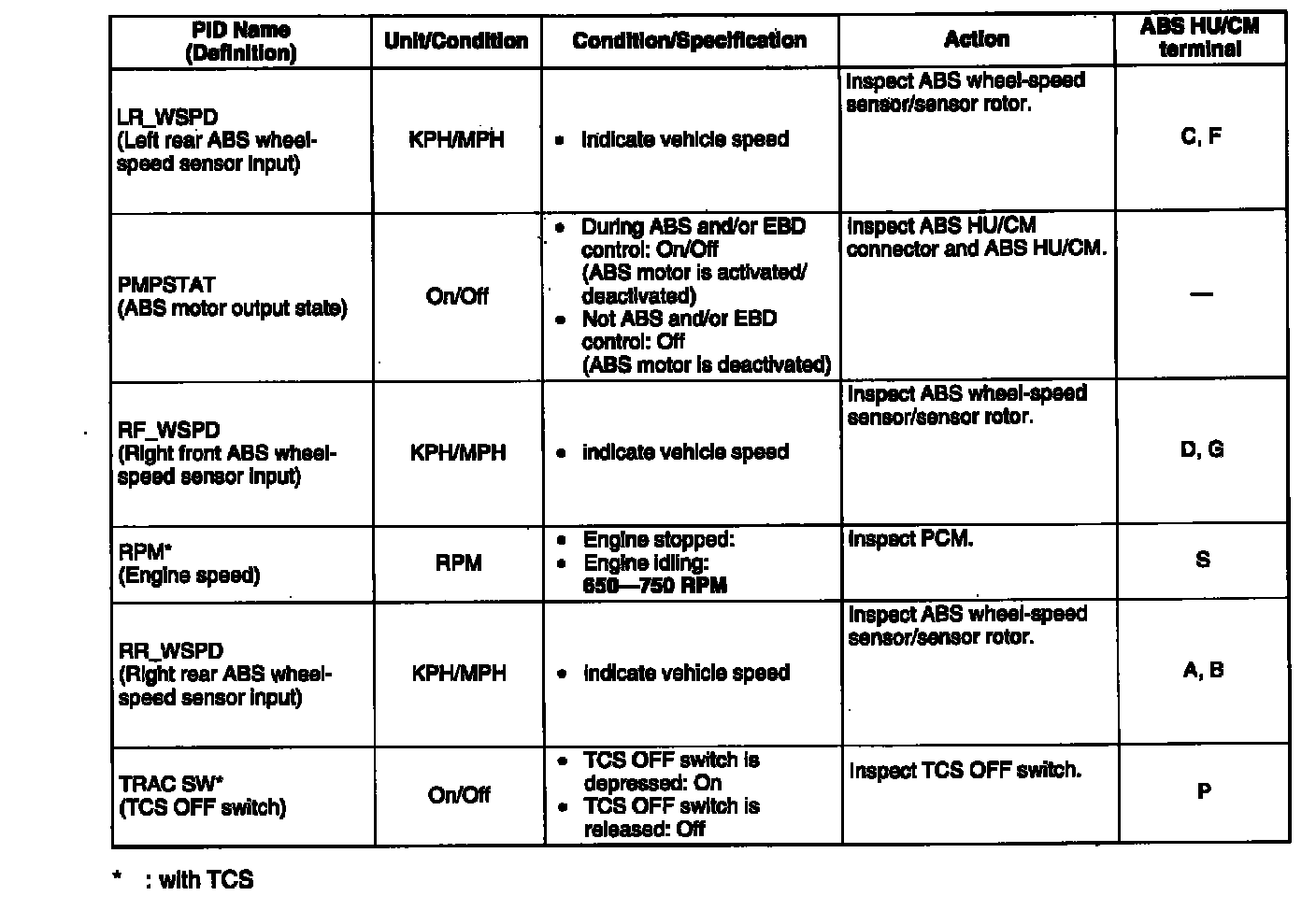

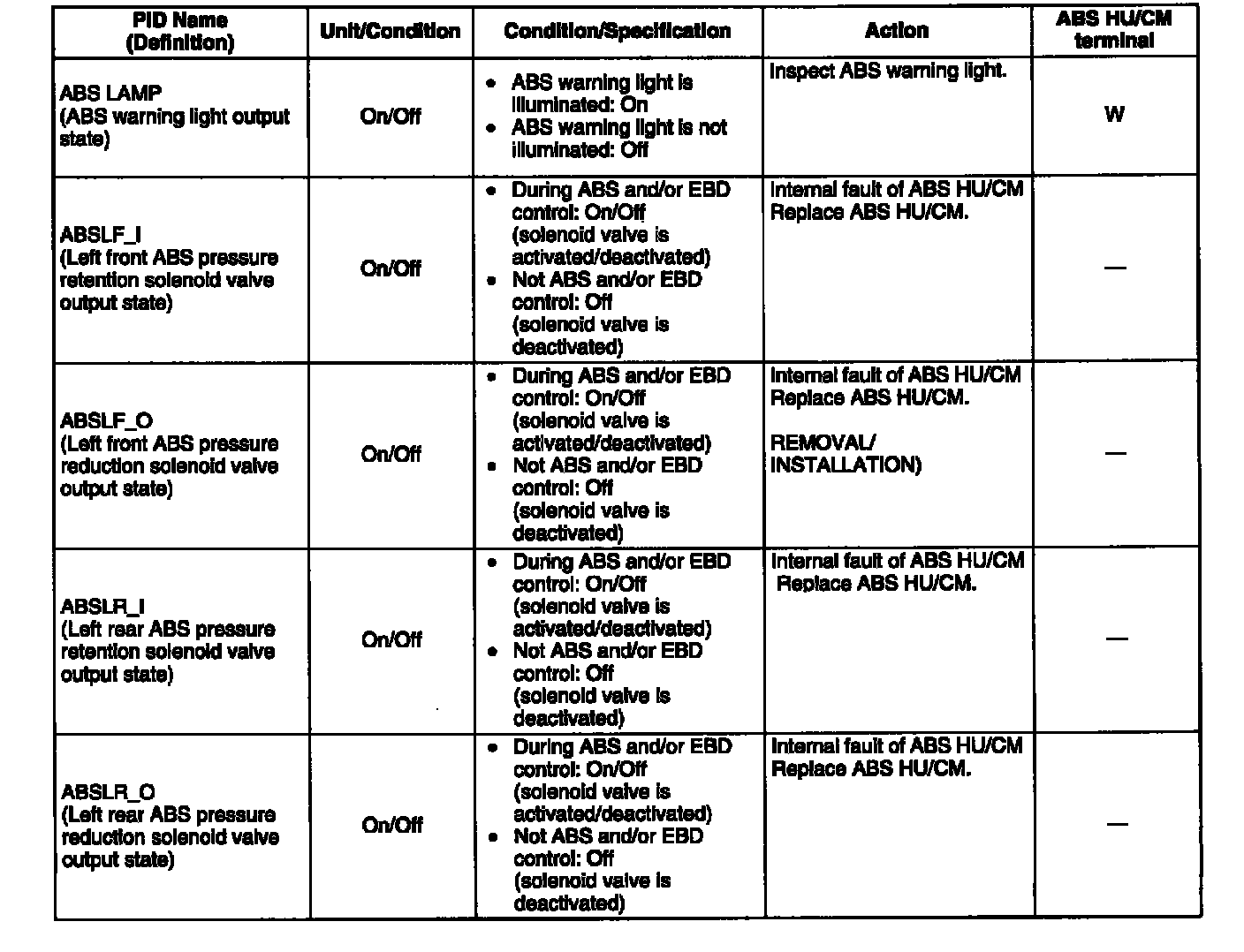

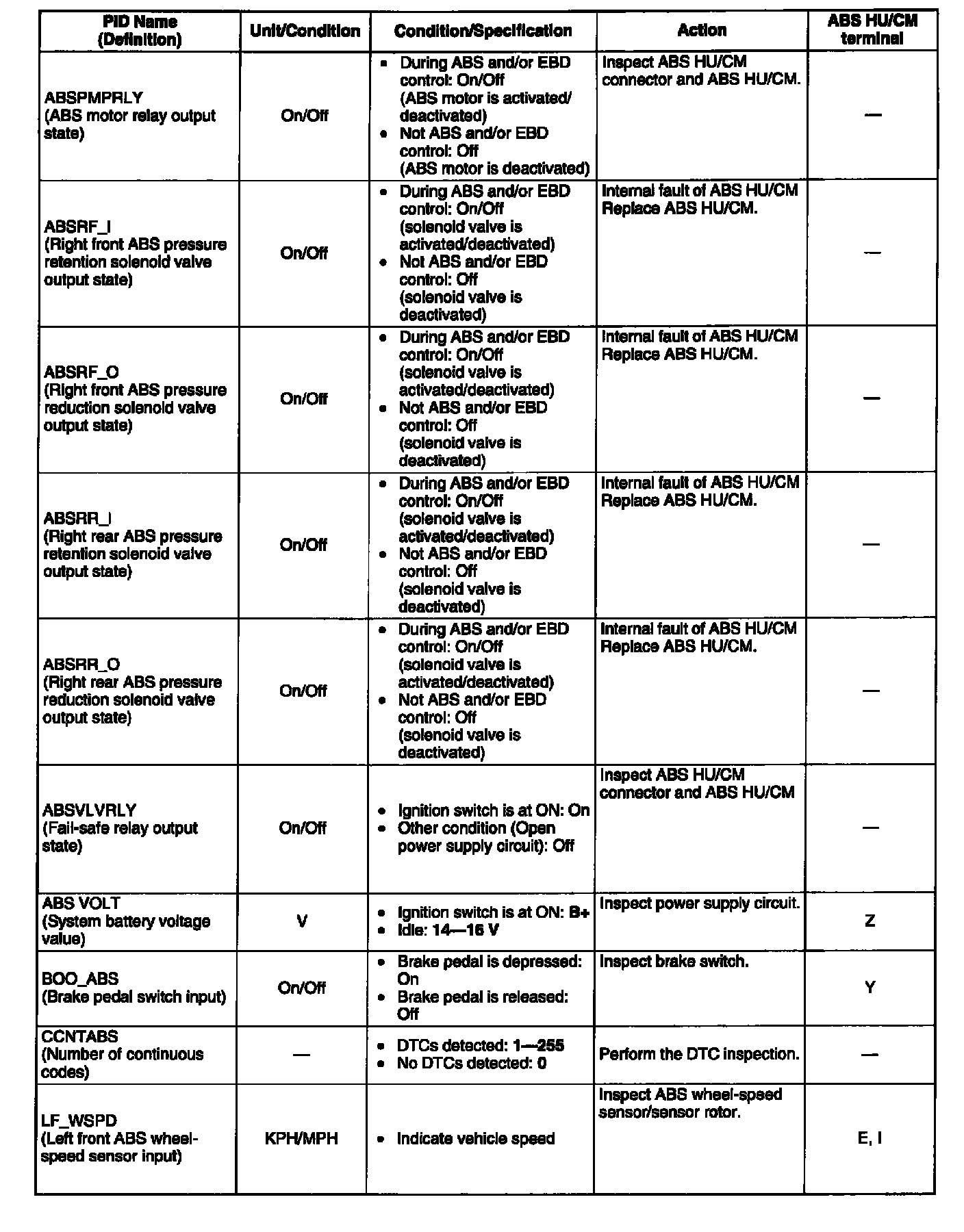

PID/DATA Monitor Table
