DTC P0038: Rear Ho2S Heater Control Circuit High

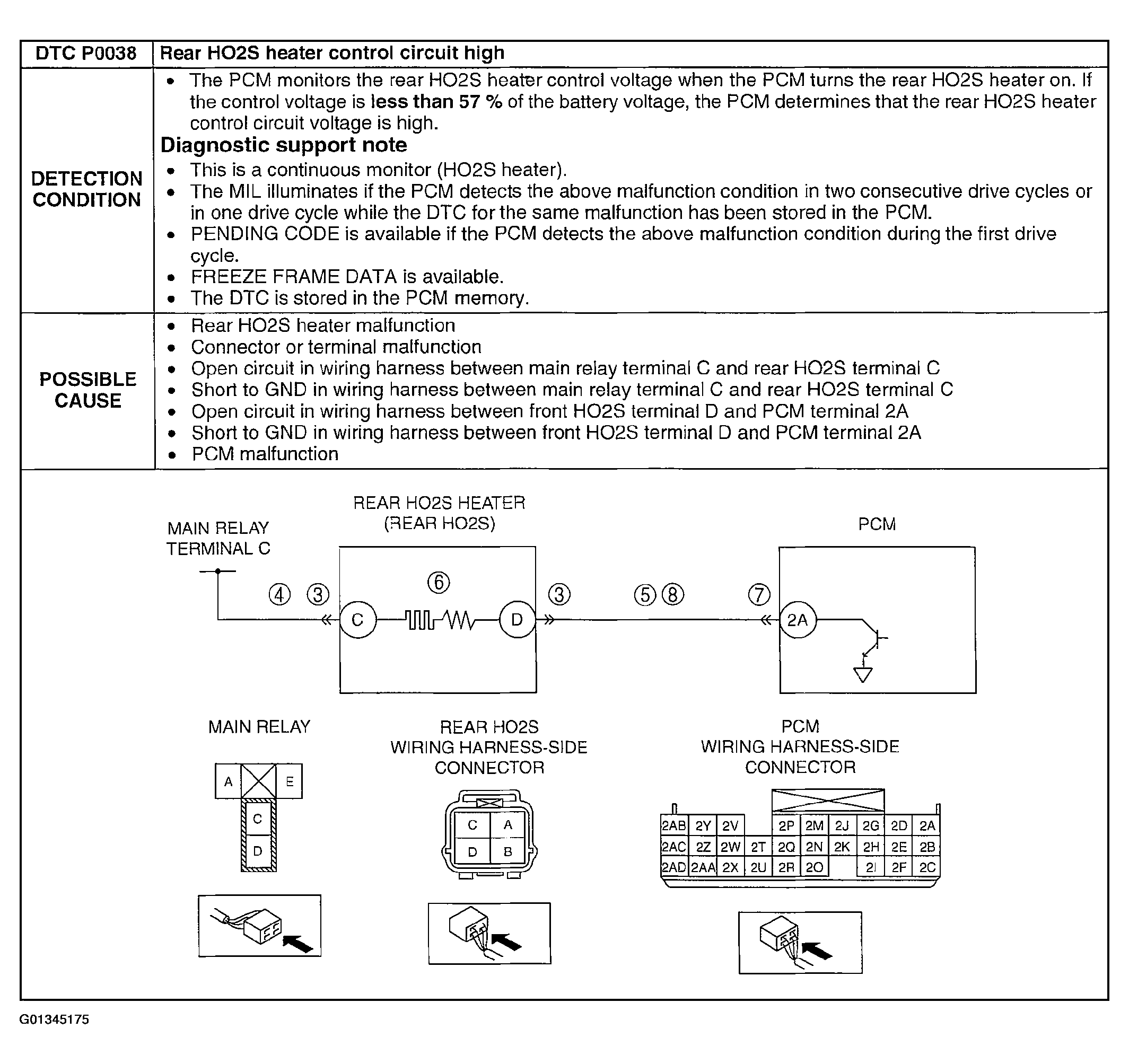

Fig 1: DTC P0038 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Diagnostic Procedure

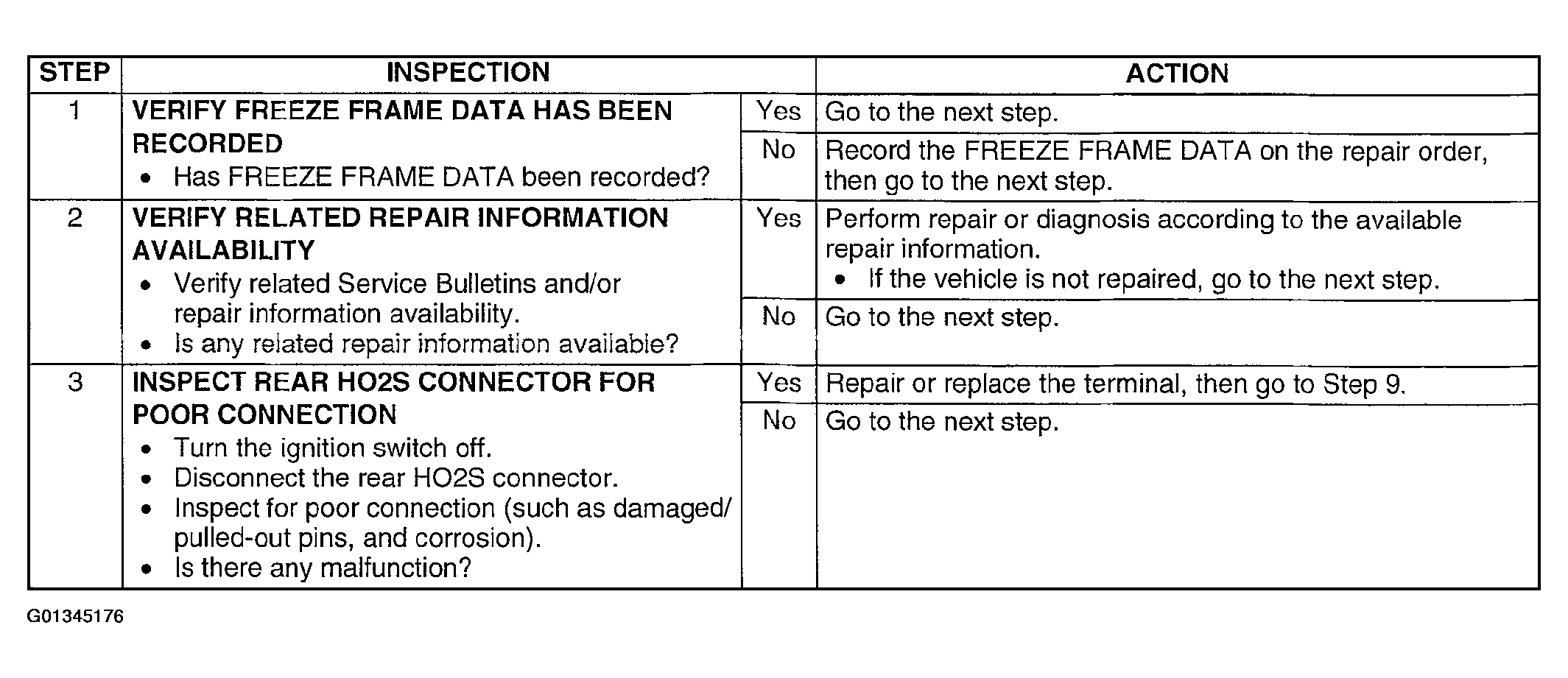

Fig 2: DTC P0038 Diagnostic Procedure Chart (Step 1-3)
Courtesy of MAZDA MOTORS CORP.

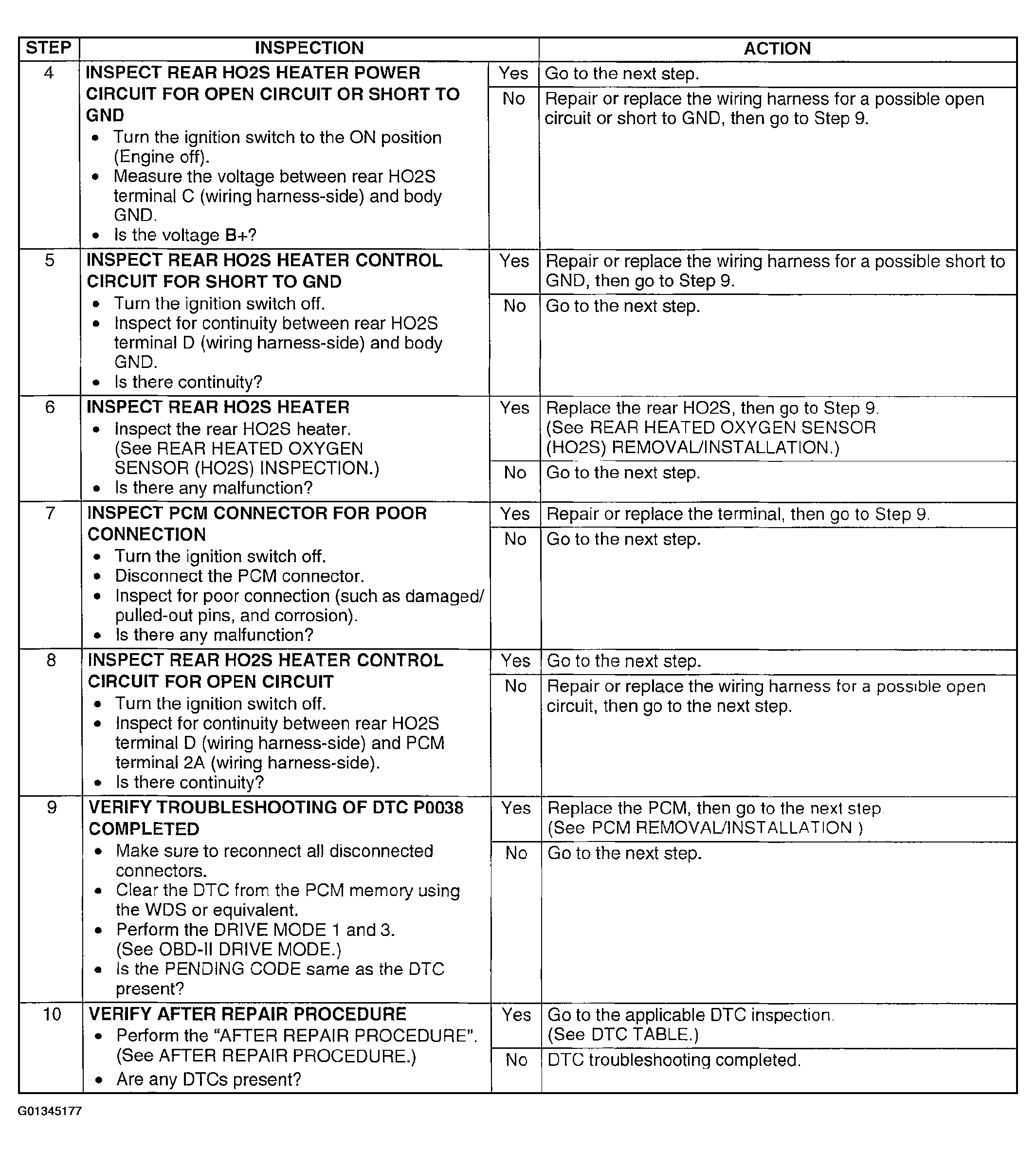

Fig 3: DTC P0038 Diagnostic Procedure Chart (Step 4-10)
Courtesy of MAZDA MOTORS CORP.
