No. 19 Exhaust Smoke

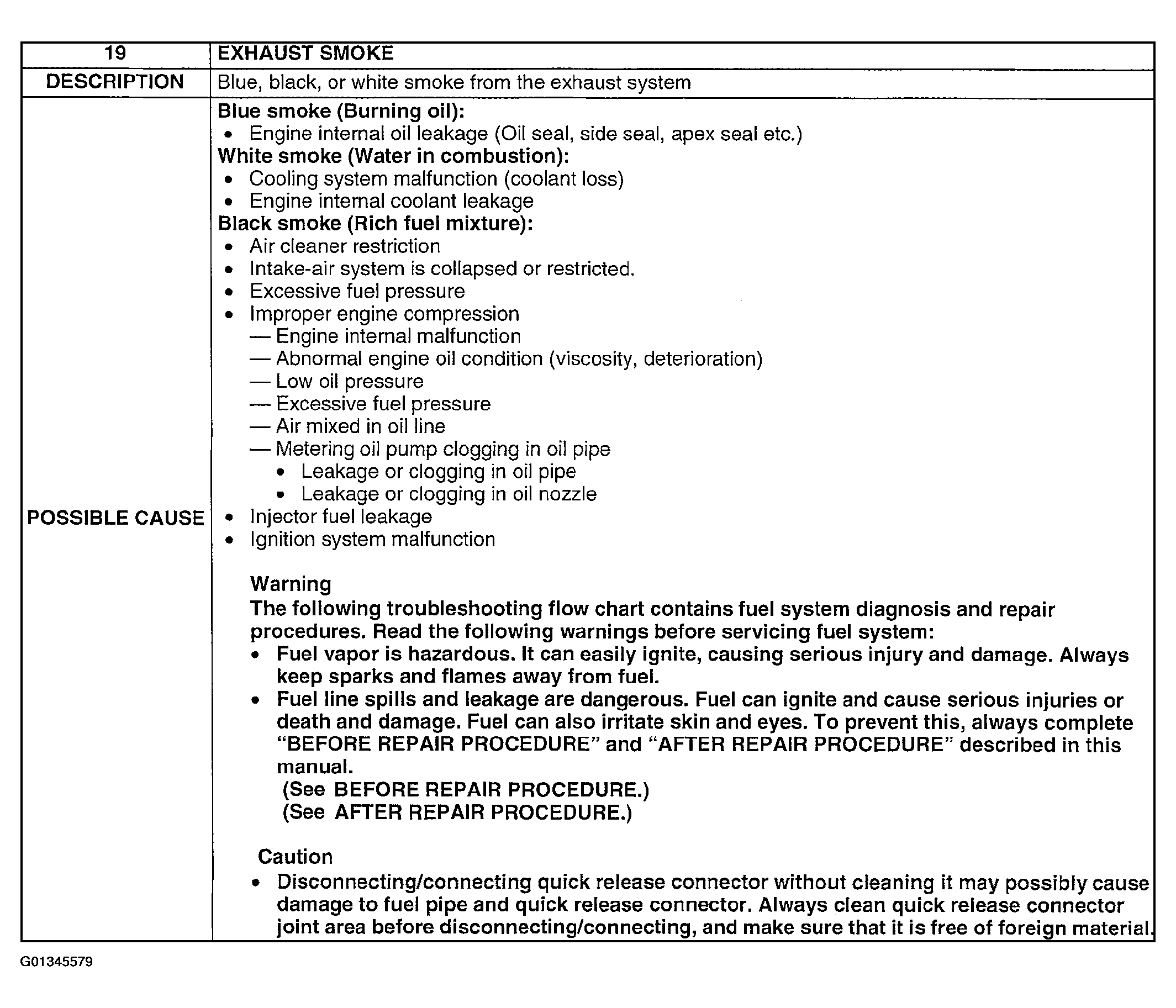

Fig 1: Possible Cause - No. 19 Exhaust Smoke
Courtesy of MAZDA MOTORS CORP.
Diagnostic Procedure

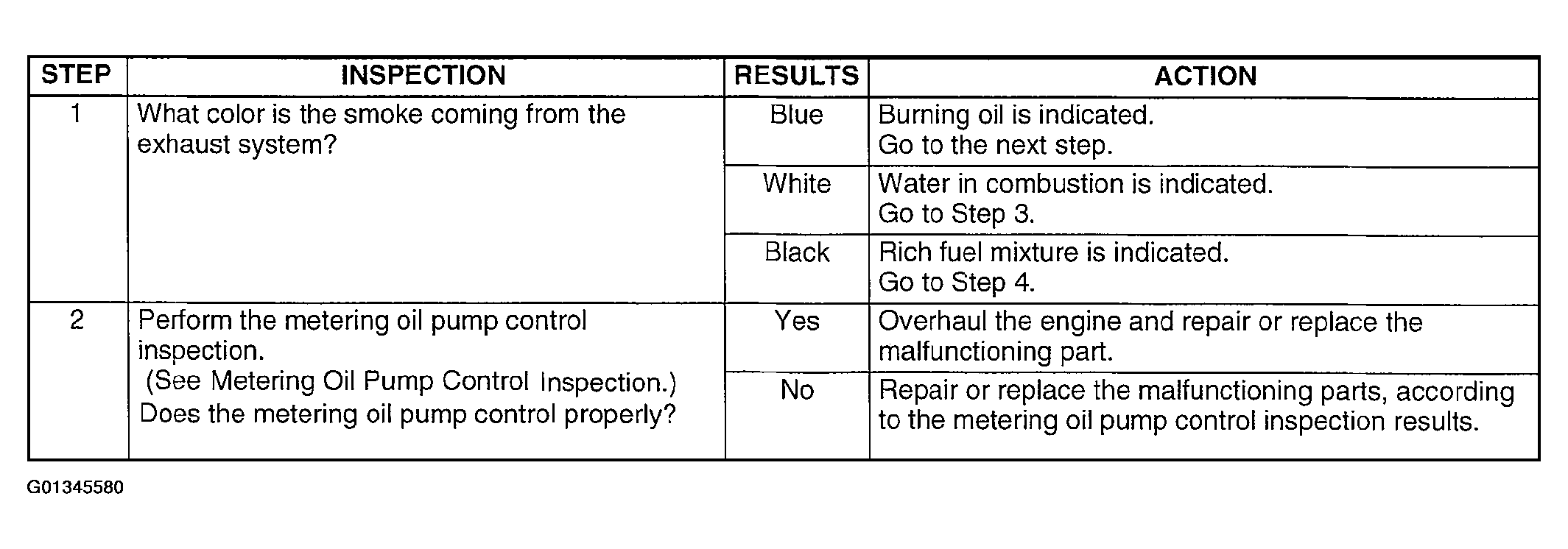

Fig 2: Diagnostic Procedure - No. 19 Exhaust Smoke (Steps 1-2)
Courtesy of MAZDA MOTORS CORP.

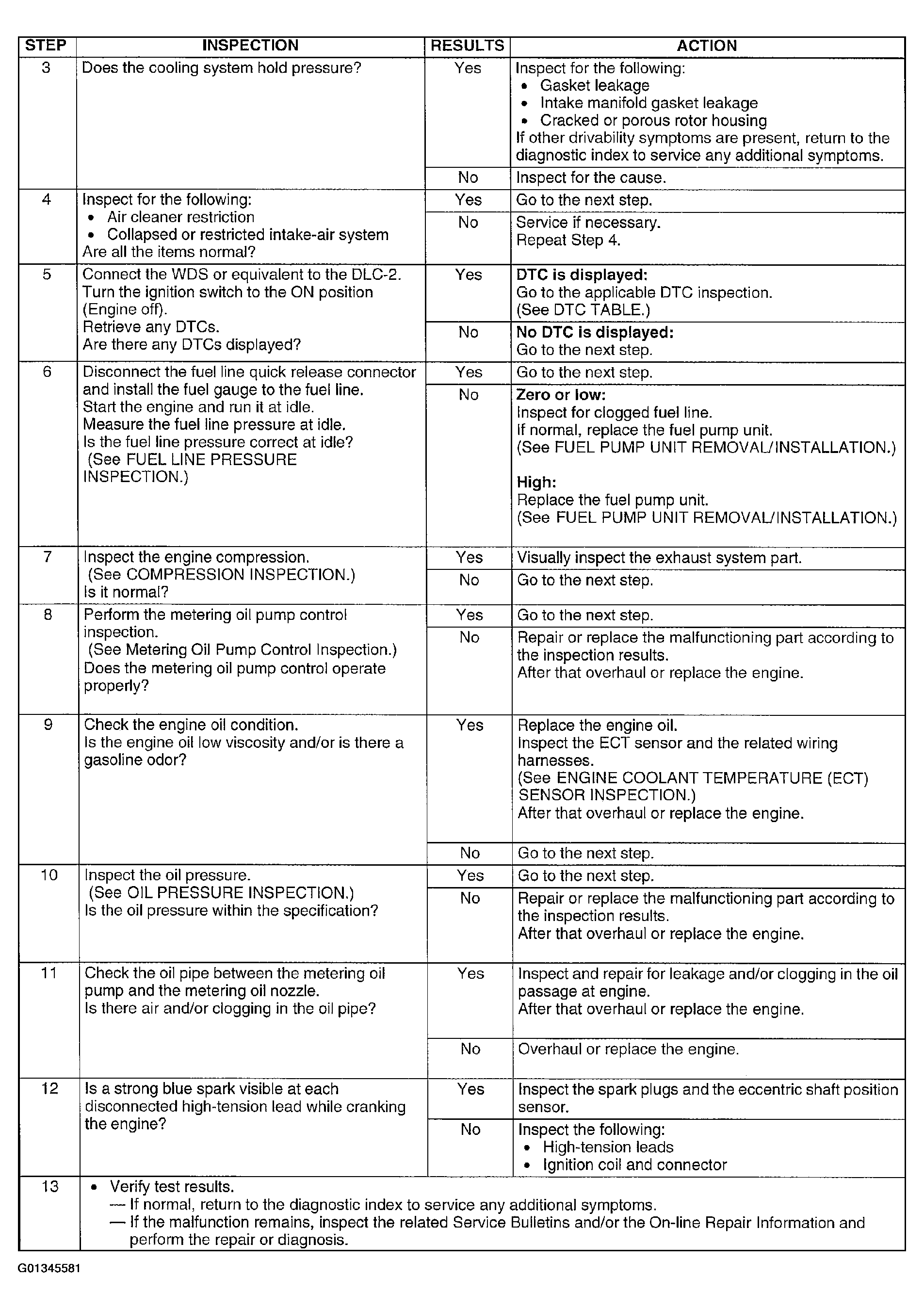

Fig 3: Diagnostic Procedure - No. 19 Exhaust Smoke (Steps 3-13)
Courtesy of MAZDA MOTORS CORP.
