Front

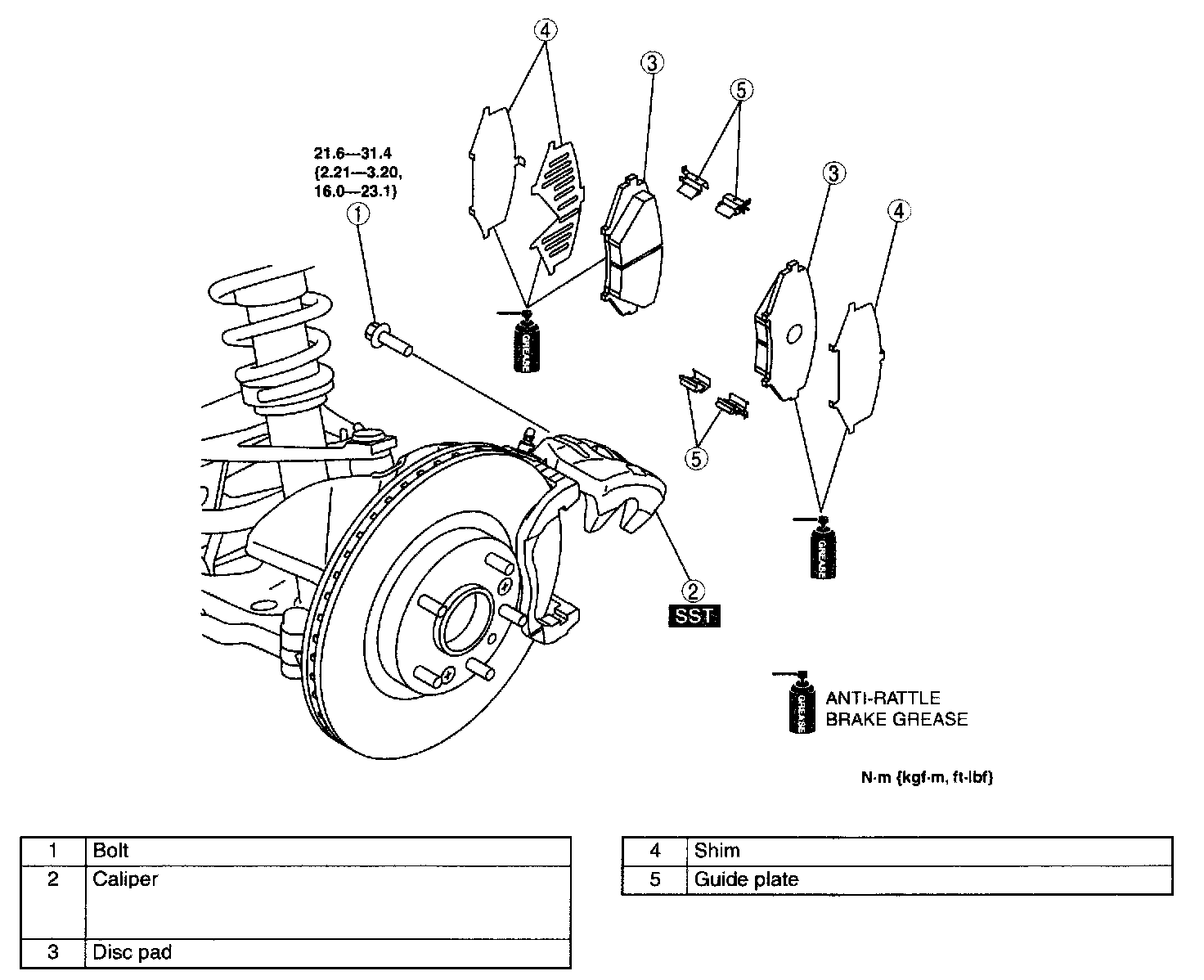

DISC PAD (FRONT) REPLACEMENT





1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.
