Windows

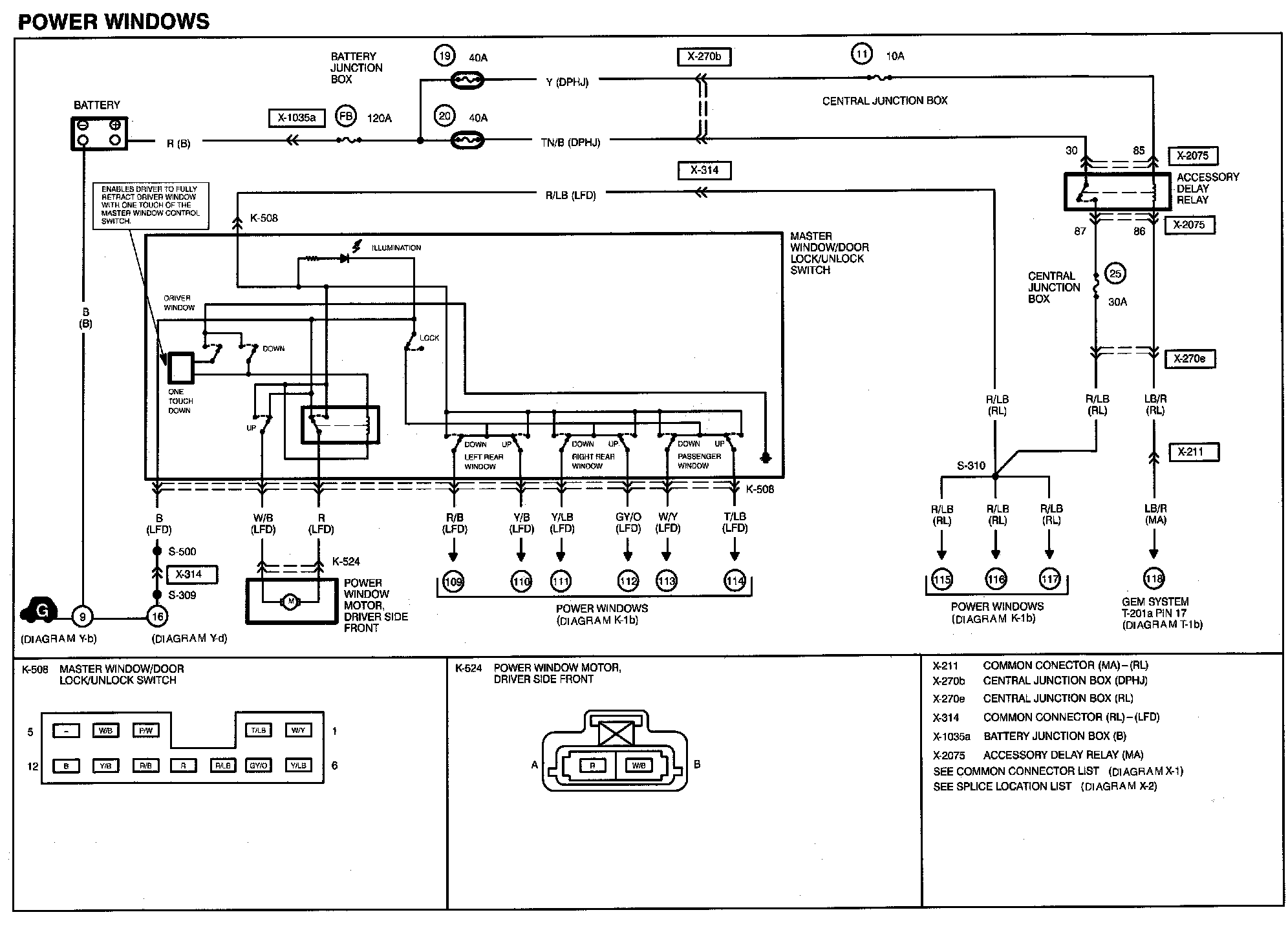

Diagram K-1a:

Routing View K-1a:

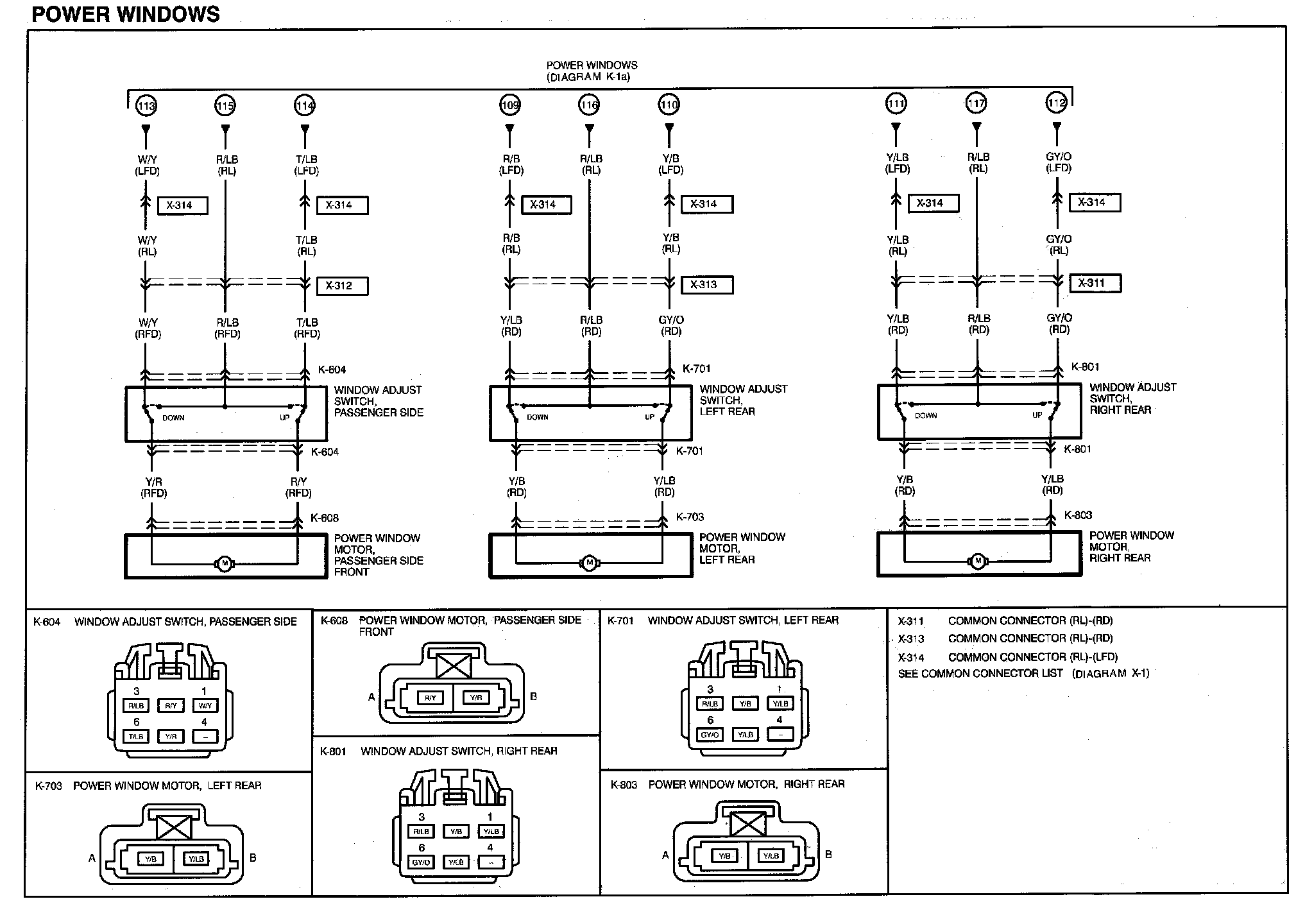

Diagram K-1b:

Routing View K-1b:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
