Vacuum Controller, HVAC
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Vacuum Controller, HVAC

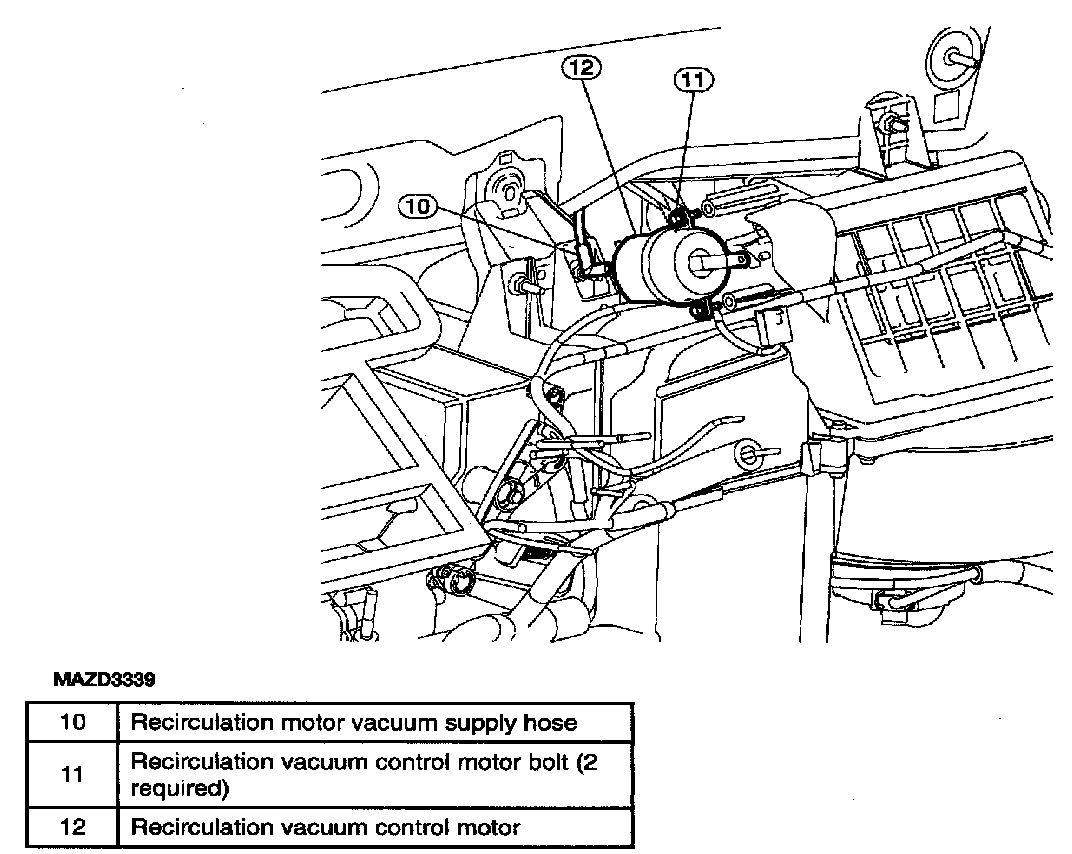

Vacuum Control Motor Part 1:

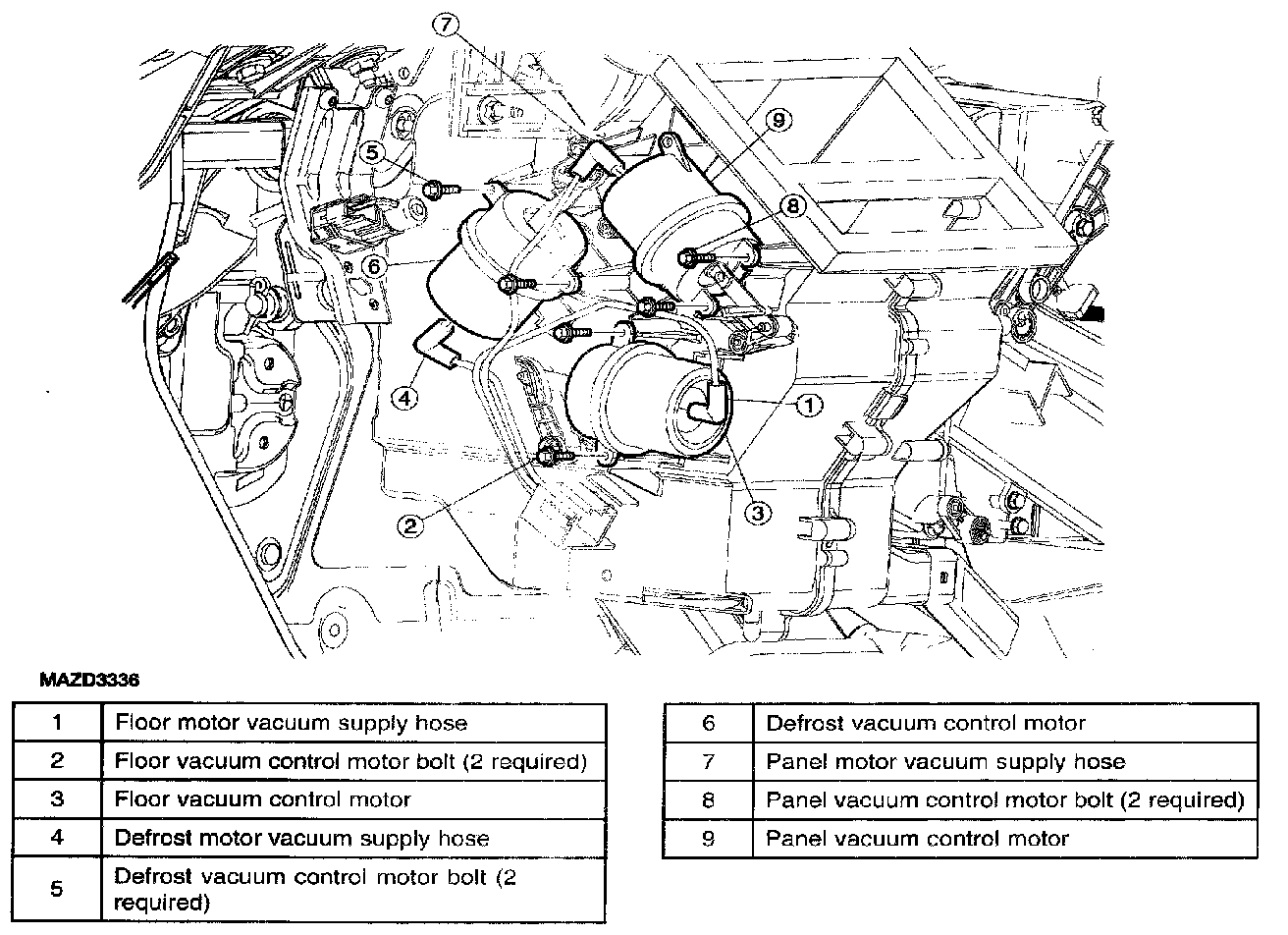

Vacuum Control Motor Part 2:
