Drive Belt: Testing and Inspection

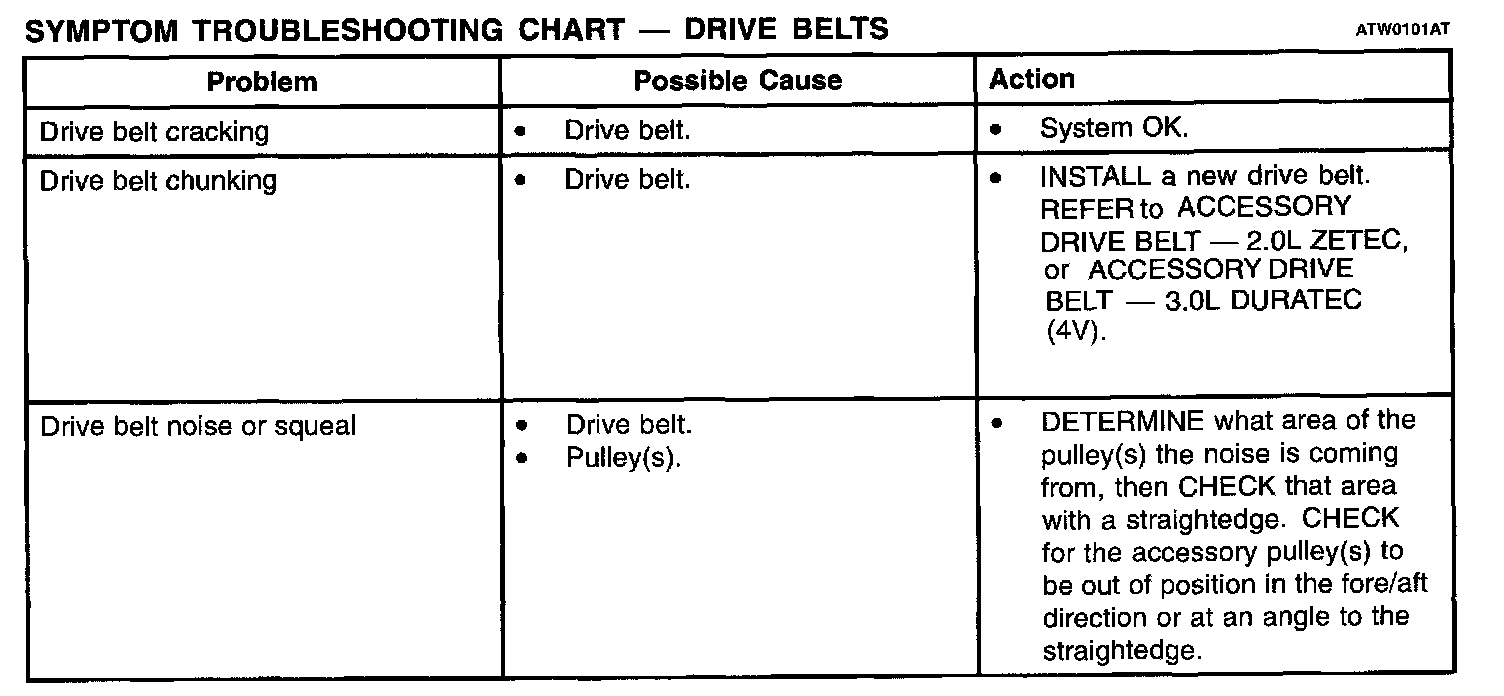

Symptom Troubleshooting Chart - Drive Belts Part 1:



Symptom Troubleshooting Chart - Drive Belts Part 1:

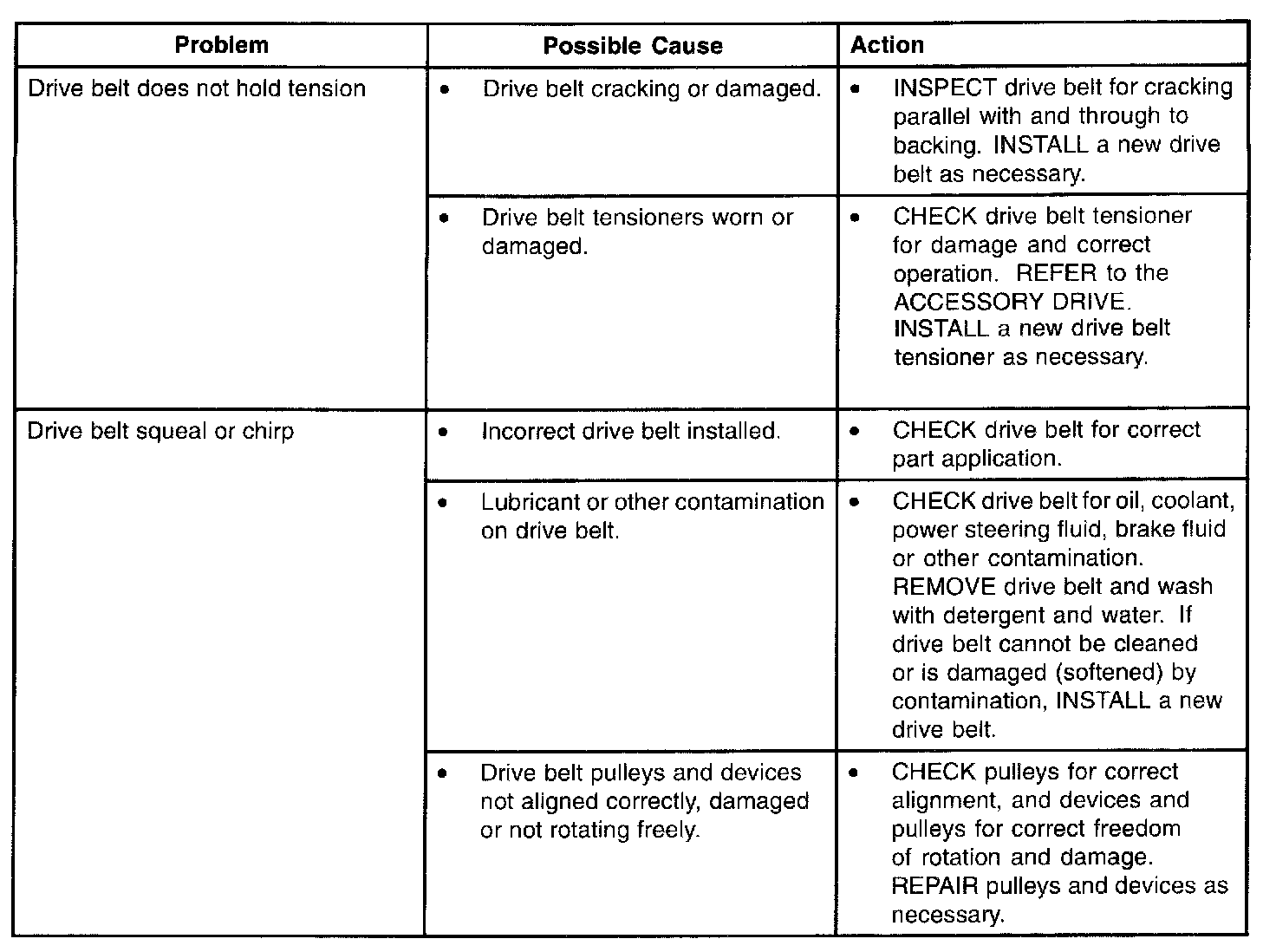

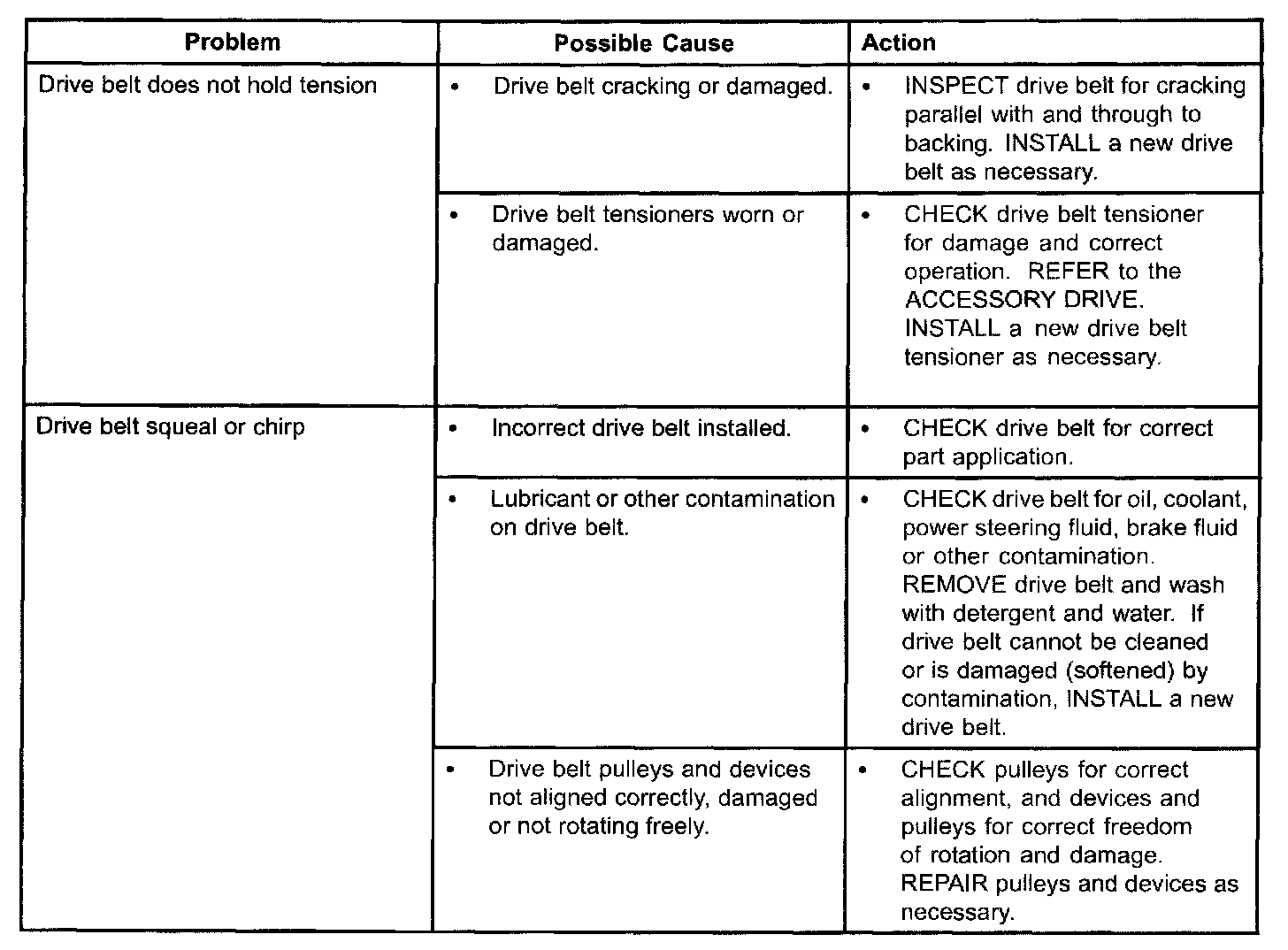

Symptom Troubleshooting Chart - Drive Belts Part 2:



Symptom Troubleshooting Chart - Drive Belts Part 2:
