Assembly Note

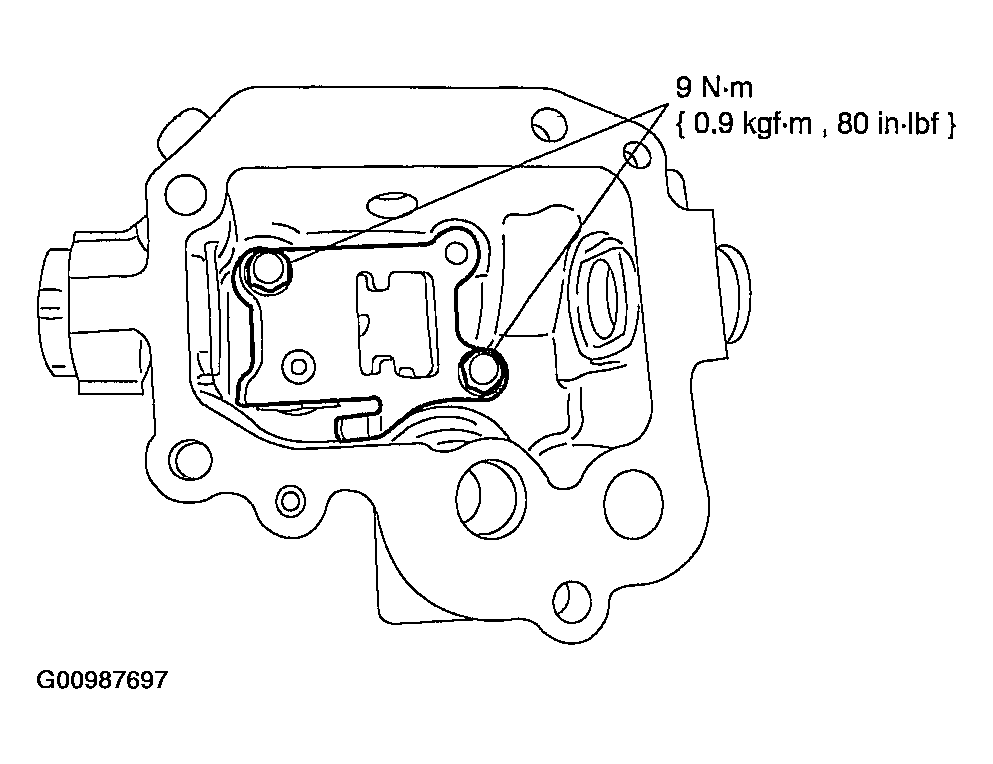

Fig 1: Installing Shift Gate
G00987697Courtesy of MAZDA MOTORS CORP.
  1. Install the shift gate.

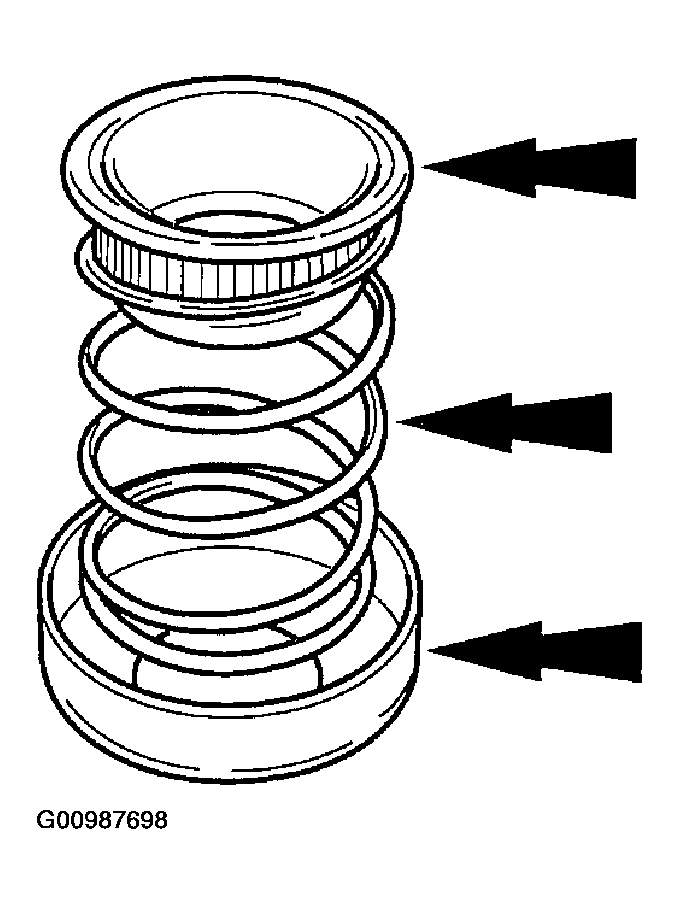

    Fig 2: Assembling Spring & Cap Assembly
    G00987698Courtesy of MAZDA MOTORS CORP.
  2. Assemble the spring and cap assemblies

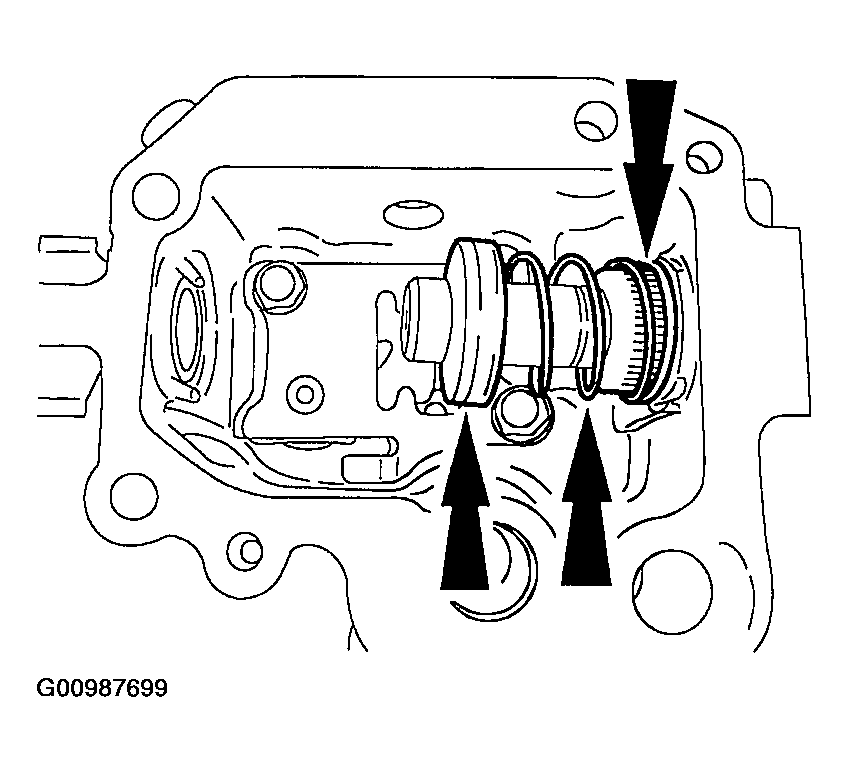

    Fig 3: Positioning Spring Assembly
    G00987699Courtesy of MAZDA MOTORS CORP.
  3. Position the spring assembly and partially install the shift rod.

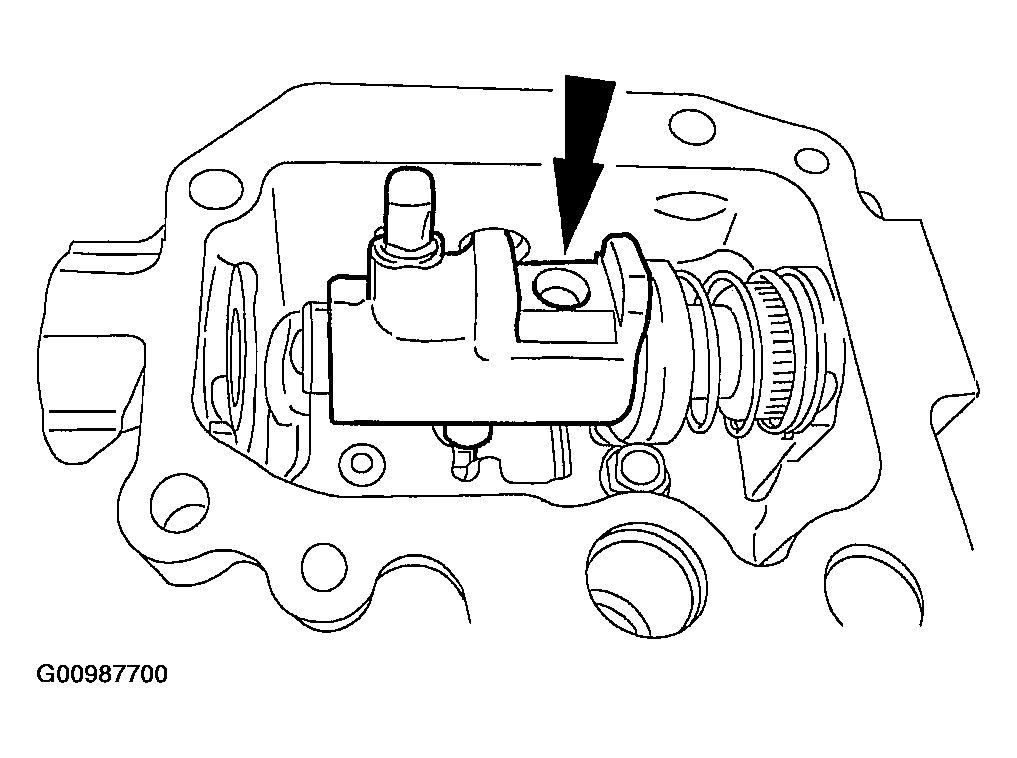

    Fig 4: Installing Shift Cam
    G00987700Courtesy of MAZDA MOTORS CORP.
  4. Install the shift cam.

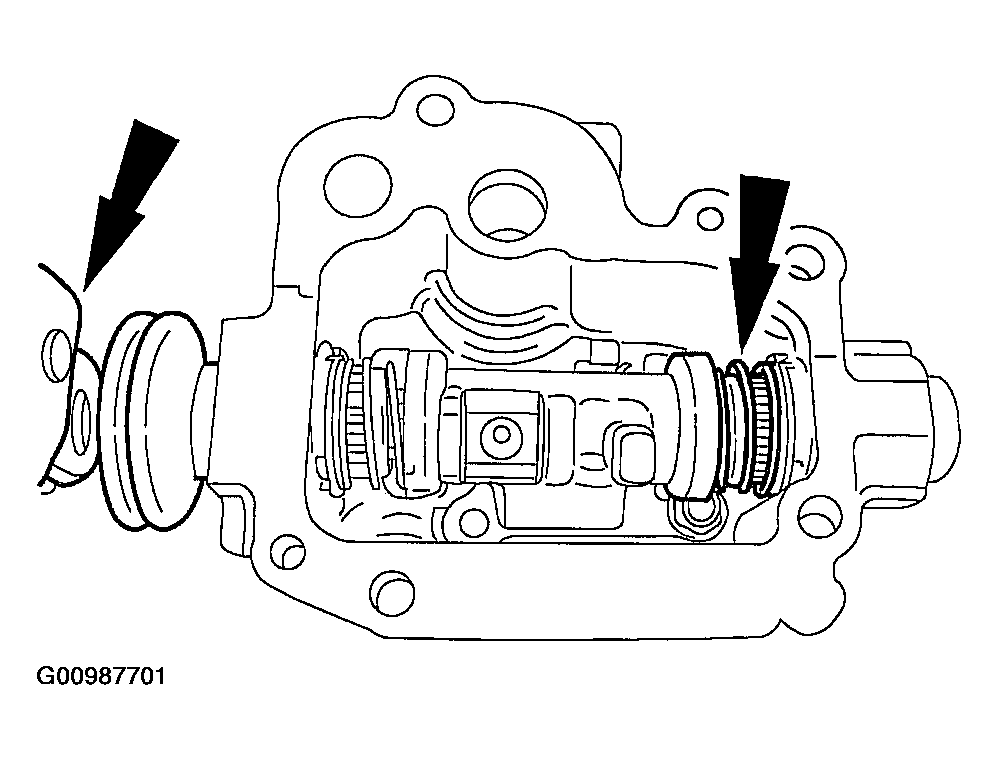

    Fig 5: Installing Remaining Spring Assembly
    G00987701Courtesy of MAZDA MOTORS CORP.
  5. Install the remaining spring assembly and fully install the shift rod.

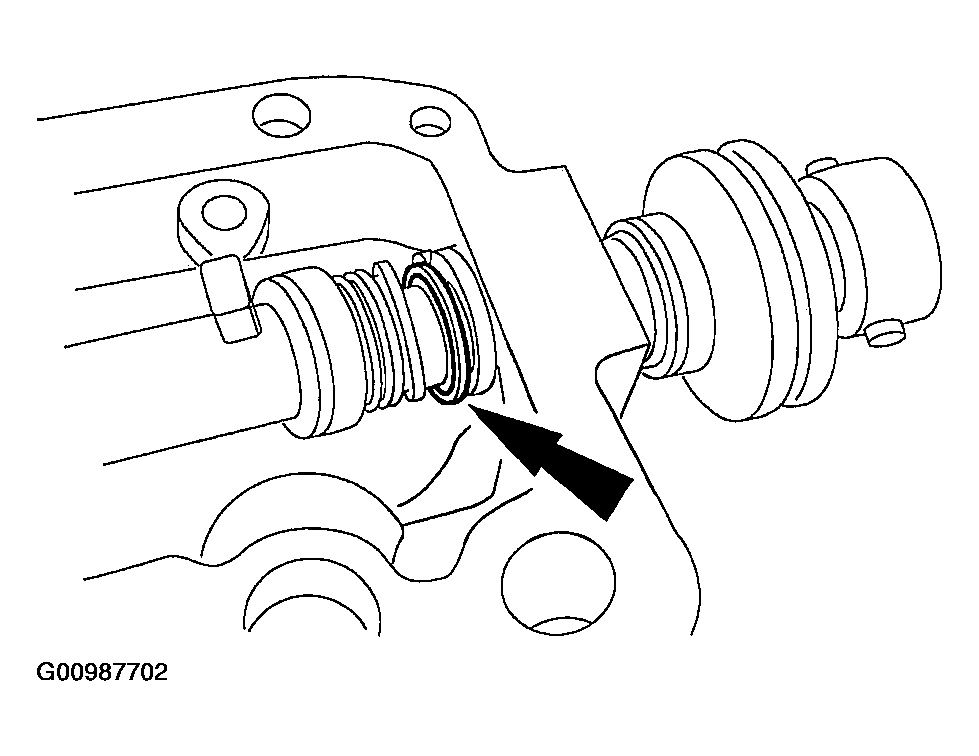

    Fig 6: Installing Circlip
    G00987702Courtesy of MAZDA MOTORS CORP.
  6. Install the circlip.

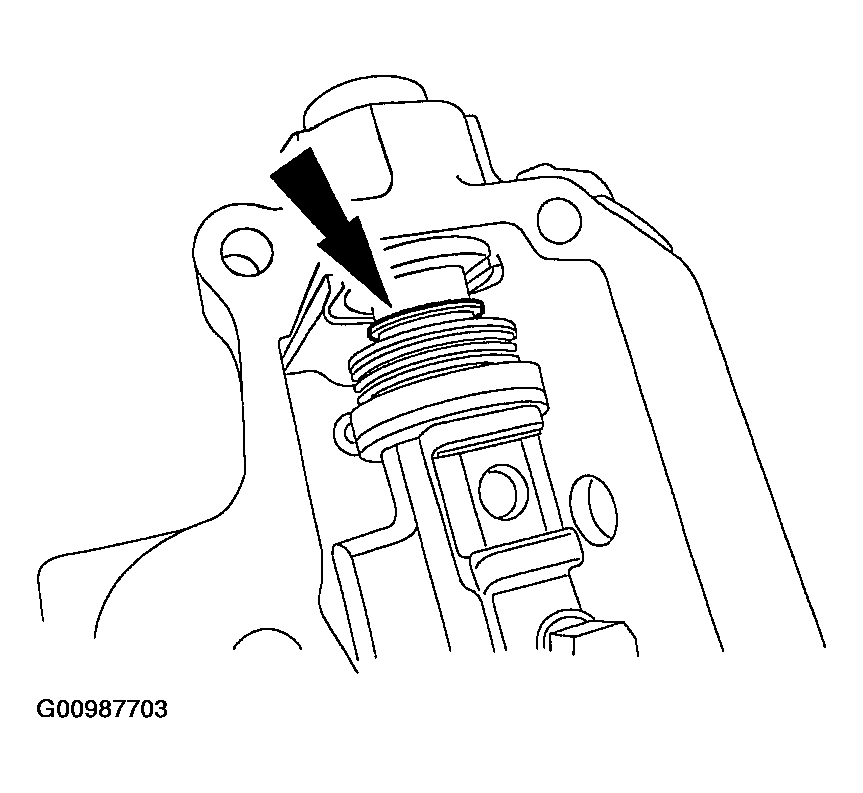

    Fig 7: Installing Circlip
    G00987703Courtesy of MAZDA MOTORS CORP.
  7. Install the circlip.

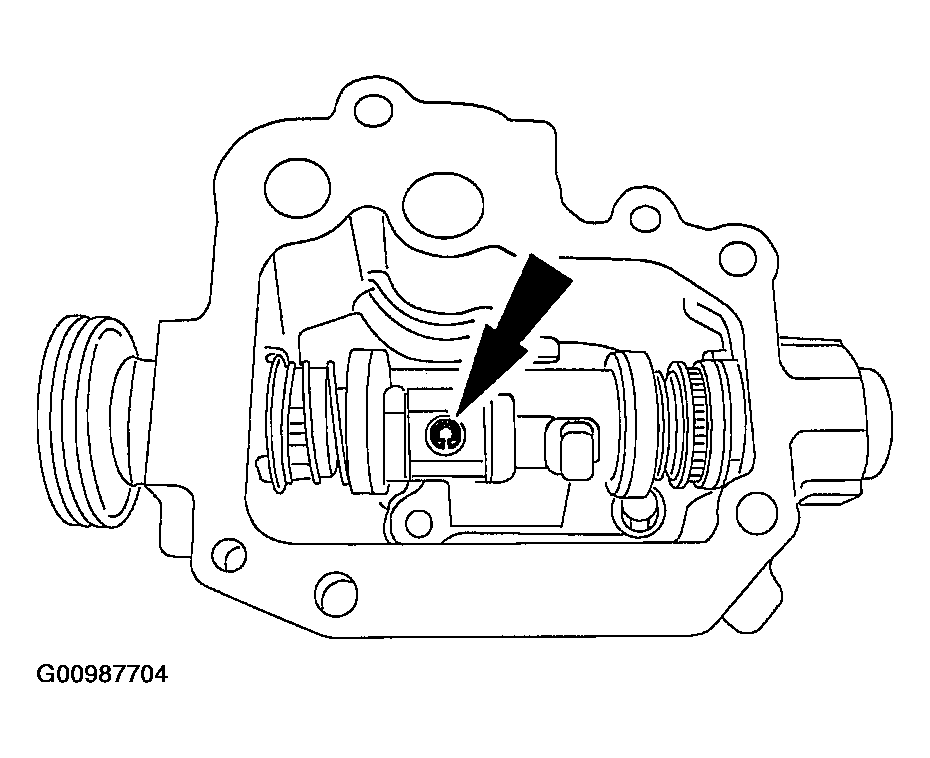

    Fig 8: Installing Roll Pin
    G00987704Courtesy of MAZDA MOTORS CORP.
  8. Install a new roll pin.
    Fig 9: Installing Shift Rod Seal
    G00987705Courtesy of MAZDA MOTORS CORP.
  9. If removed, install the shift rod seal.

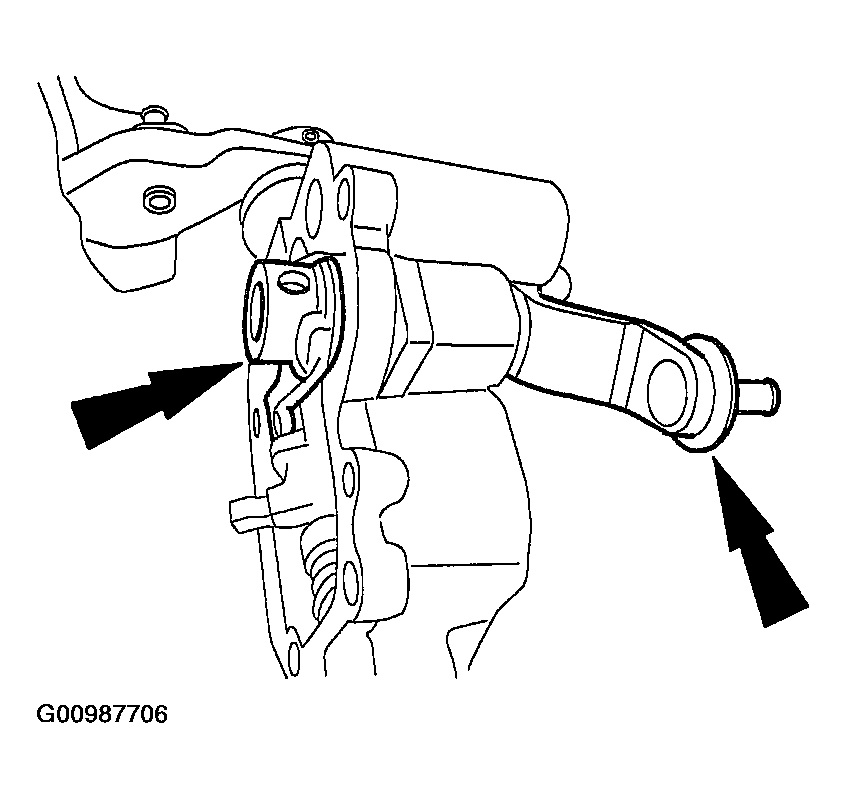

    Fig 10: Installing Shift Shaft & Shift Pawl
    G00987706Courtesy of MAZDA MOTORS CORP.
  10. Install the shift shaft and the shift pawl.
    Fig 11: Identifying New Roll Pin
    G00987707Courtesy of MAZDA MOTORS CORP.
  11. Install the new roll pin.
