GEM Diagnostic Trouble Code (DTC) Index

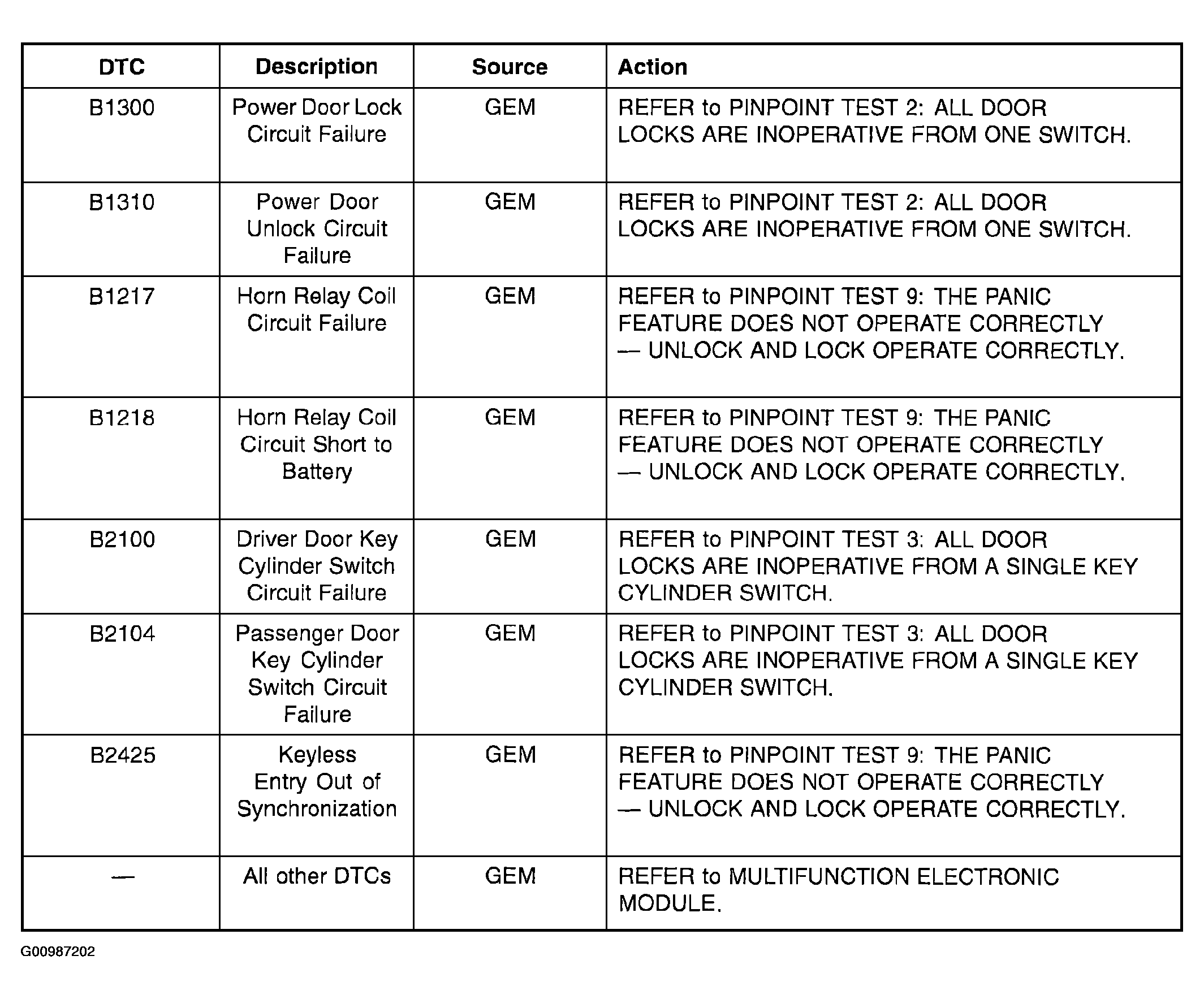

Fig 1: GEM DTC's B1300, B1310, B1217, B1218, B2100, B2104 & B2425 Descriptions
G00987202Courtesy of MAZDA MOTORS CORP.
DTC TABLE

DTC Description
B1300  Power Door Lock Circuit Failure
B1310  Power Door Unlock Circuit Failure
B1217  Horn Relay Coil Circuit Failure
B1218  Horn Relay Coil Circuit Short to Battery
B2100  Driver Door Key Cylinder Switch Circuit Failure
B2104  Passenger Door Key Cylinder Switch Circuit Failure
B2425  Keyless Entry Out of Synchronization
