Symptom Troubleshooting Chart - Anti Theft System: Notes
PINPOINT TEST
| TROUBLESHOOTING CODES | DESCRIPTION |
|---|---|
| PINPOINT TEST 1 | ANTENNA NOT CONNECTED |
| PINPOINT TEST 2 | PATS IGNITION KEY TRANSPONDER SIGNAL IS NOT RECEIVED |
| PINPOINT TEST 3 | PATS RECEIVED INCORRECT KEY-CODE FROM IGNITION KEY TRANSPONDER |
| PINPOINT TEST 4 | PATS RECEIVED INVALID FORMAT OF KEY-CODE FROM IGNITION KEY TRANSPONDER |
| PINPOINT TEST 5 | PATS TRANSCEIVER MODULE SIGNAL IS NOT RECEIVED |
| PINPOINT TEST 6 | ANTI-THEFT NUMBER OF PROGRAMMED KEYS IS BELOW MINIMUM |

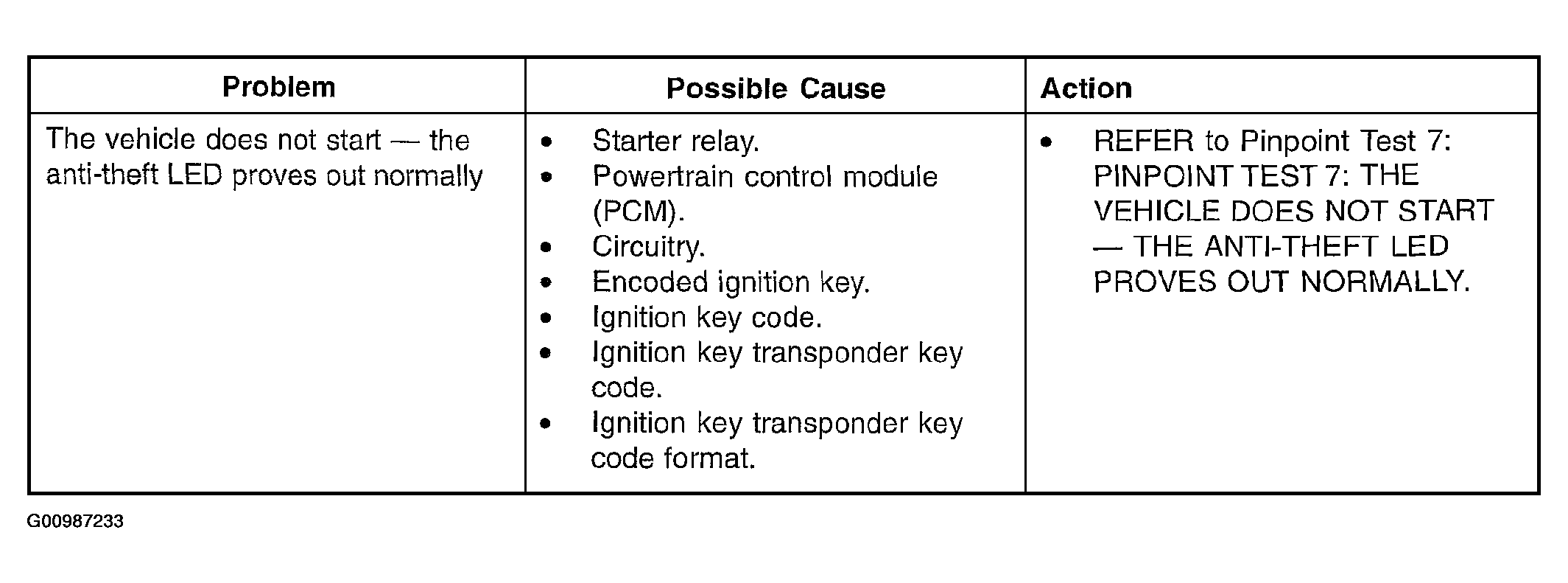

| PINPOINT TEST 7 | THE VEHICLE DOES NOT START - THE ANTI-THEFT LED PROVES OUT NORMALLY |
