Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic

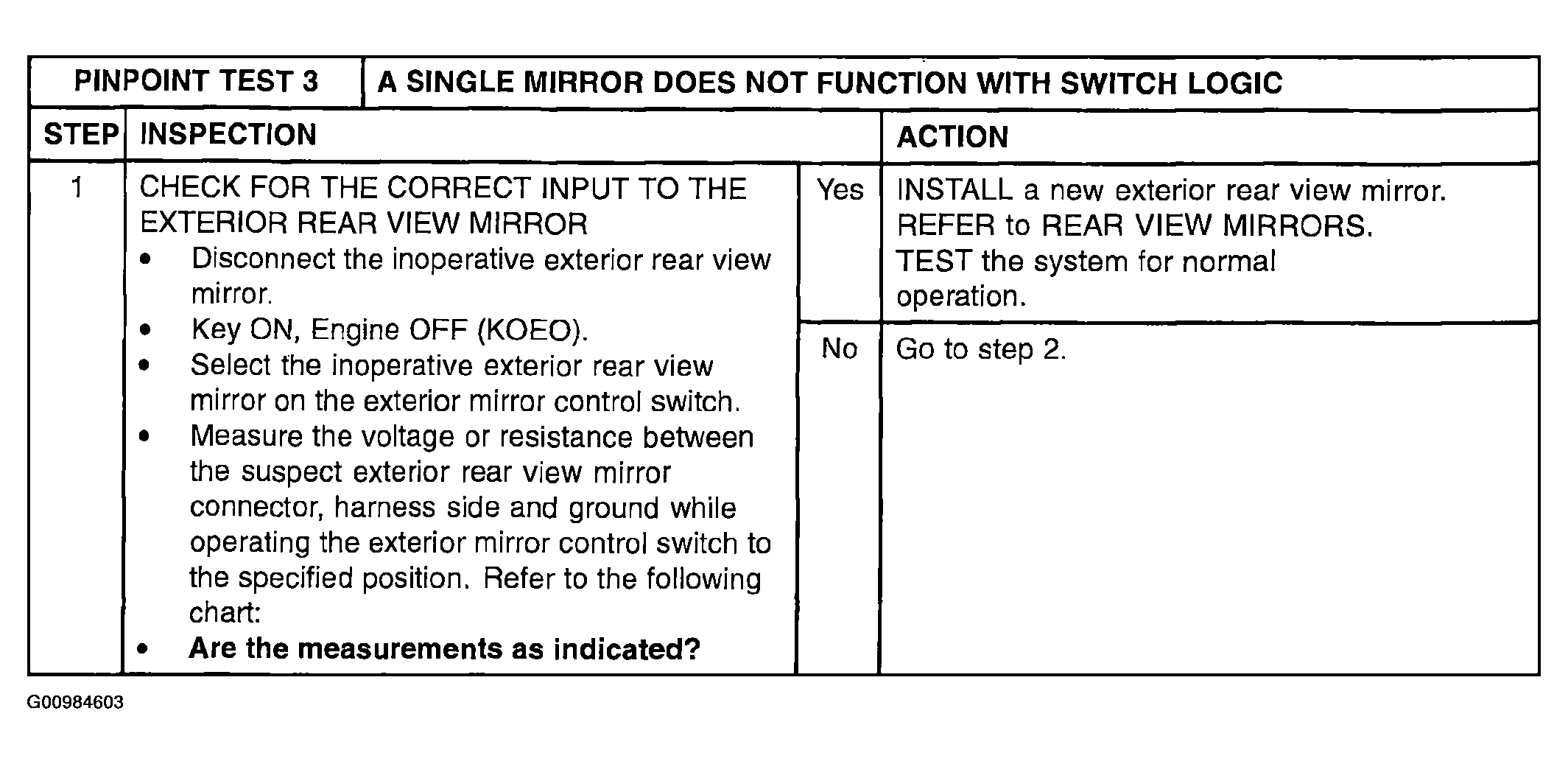

Fig 1: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic - Inspection Procedure Chart (Step 1)

Courtesy of MAZDA MOTORS CORP.

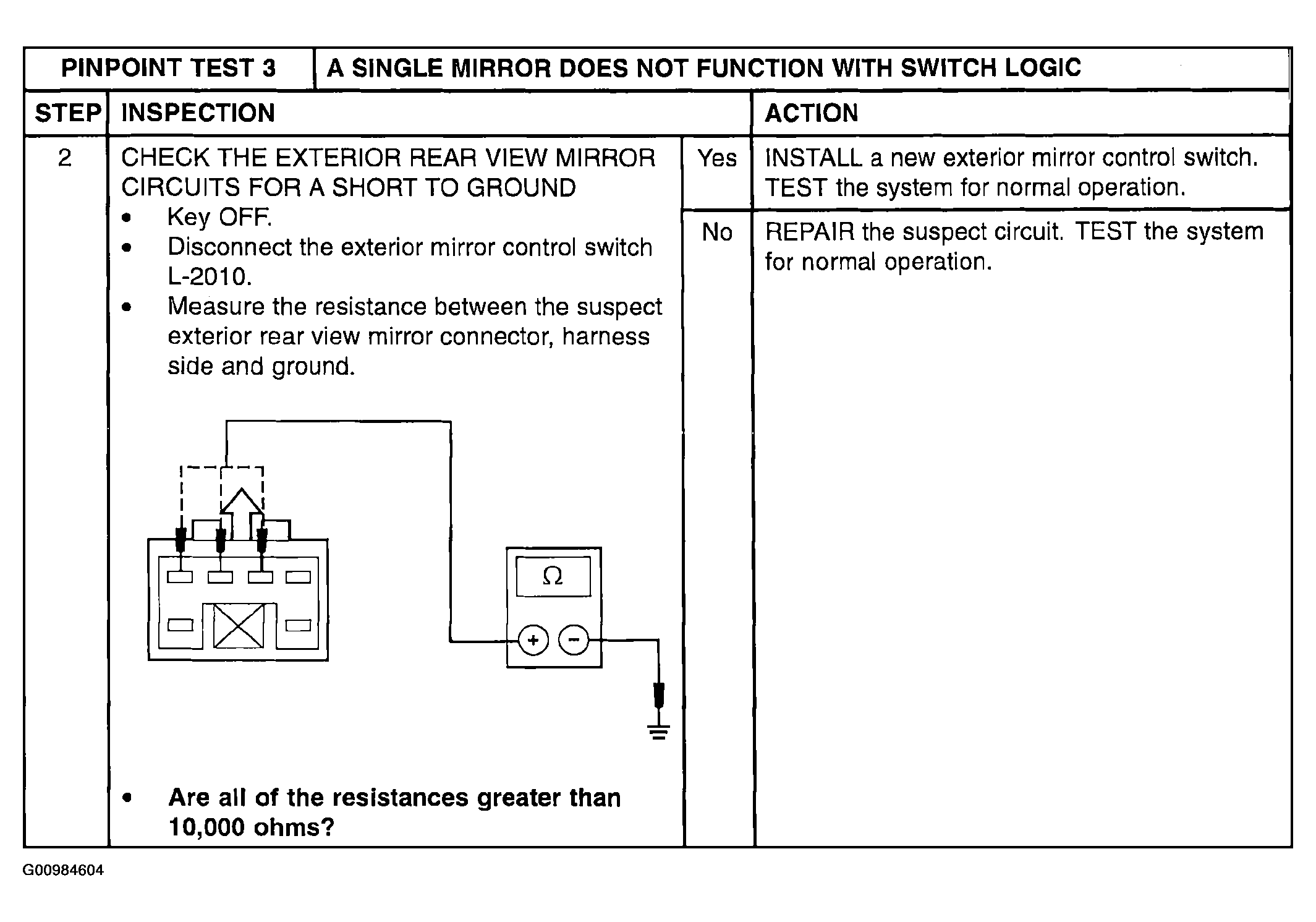

Fig 2: Pinpoint Test 3: A Single Mirror Does Not Function With Switch Logic - Inspection Procedure Chart (Step 2)

Courtesy of MAZDA MOTORS CORP.

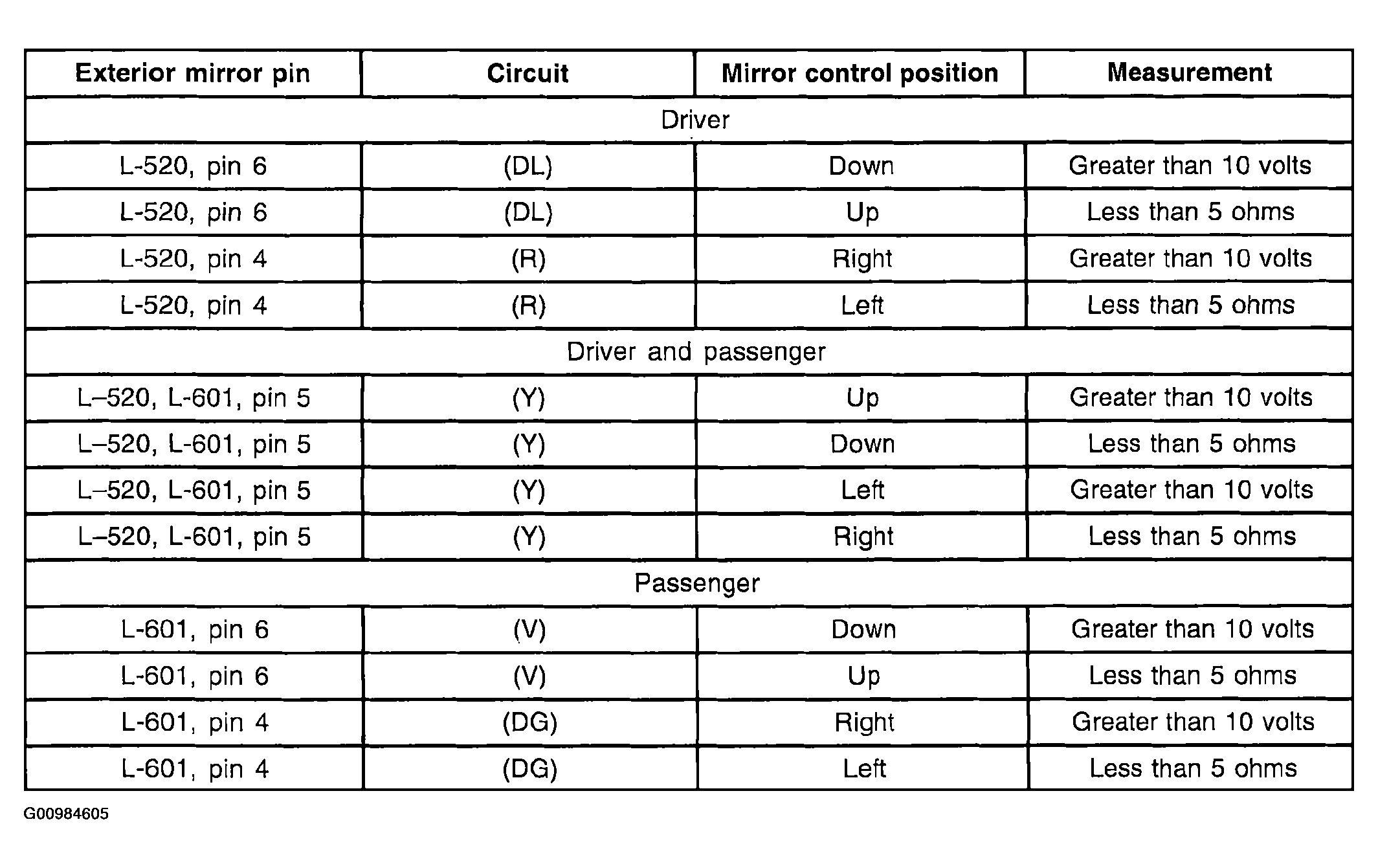

Fig 3: Exterior Mirror Pin Specification Chart

Courtesy of MAZDA MOTORS CORP.

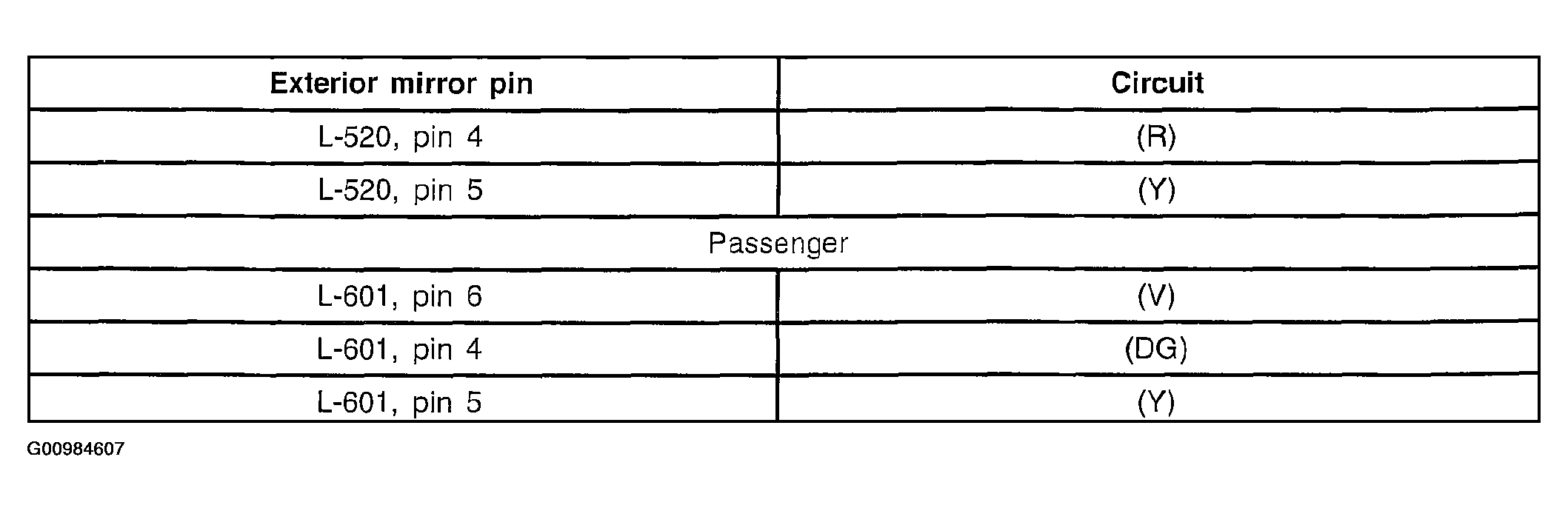

Fig 4: Exterior Mirror Pin - Circuit Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Exterior Mirror Pin - Circuit Chart (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
