Removal & Installation

  1. Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .
  2. Remove the function selector switch knob.
    Fig 1: Identifying Function Selector Switch Knob
    G00986095Courtesy of MAZDA MOTORS CORP.
  3. Remove the function selector switch.
    1. Push in the locking tab on one side of the function selector switch.

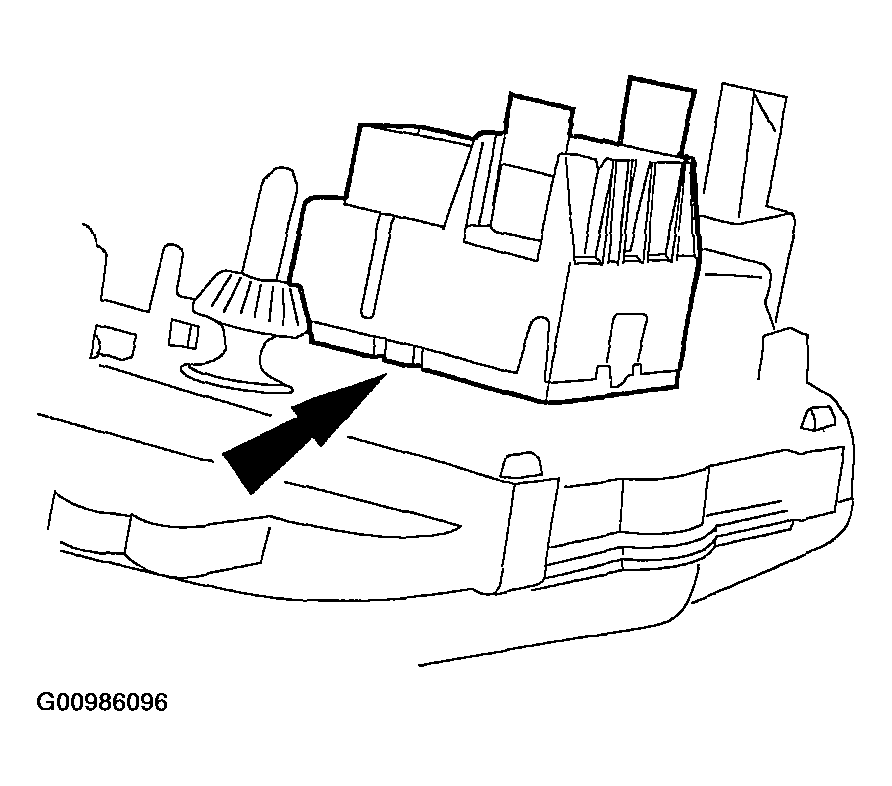

    Fig 2: Identifying Locking Tab On One Side Of Function Selector Switch
    G00986096Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.
  4. To install, reverse the removal procedure.
