Speed Control DEACTIVATOR Switch: Removal

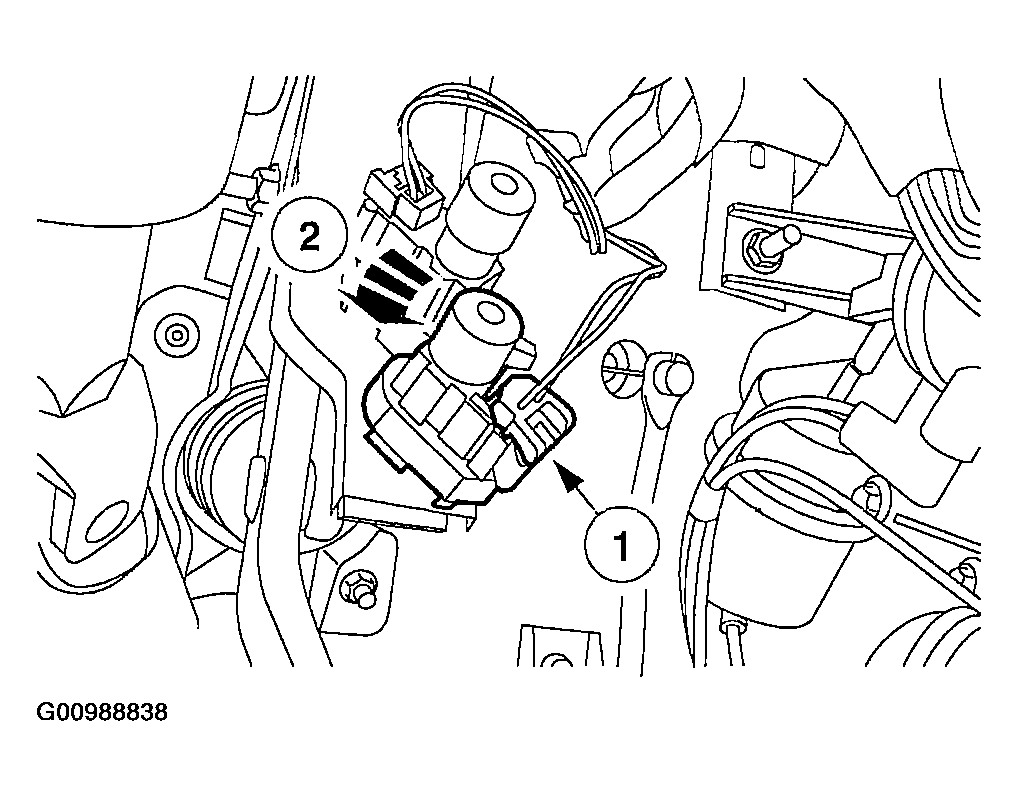

Fig 1: Locating Removal Procedure Of Deactivator Switch
G00988838Courtesy of MAZDA MOTORS CORP.
  1. Remove the deactivator switch.
    1. Disconnect the electrical connector.
    2. Rotate counterclockwise 45 degrees and remove the deactivator switch.
