Removal & Installation

Remove the wheel and tire.
Detach the grommet from the body and pull the connector through the hole.

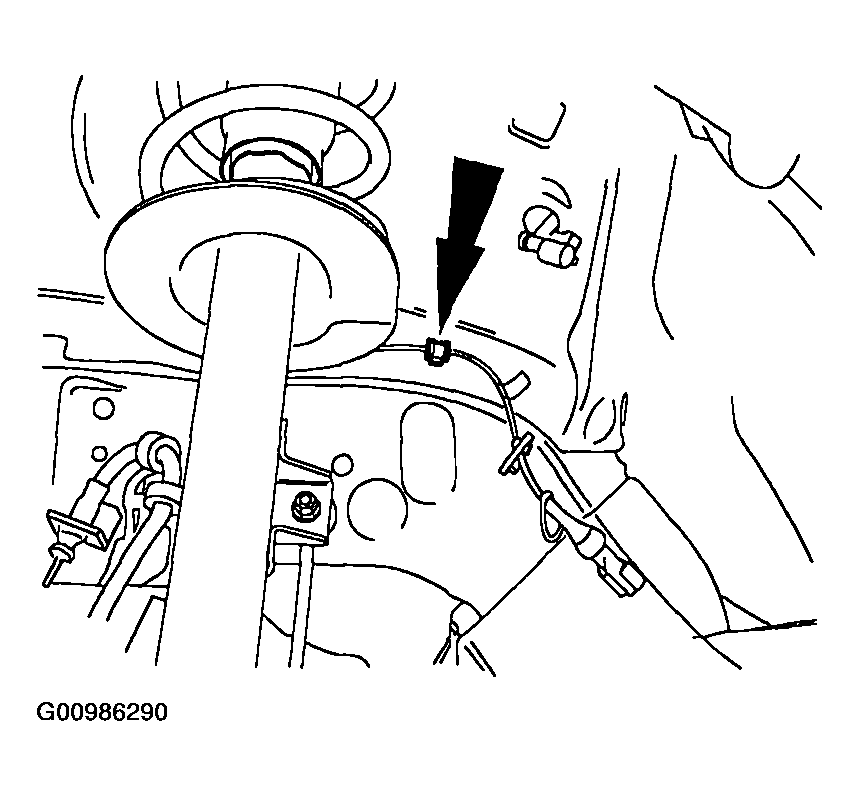

Fig 1: Locating Connector Grommet - Front Sensor
Courtesy of MAZDA MOTORS CORP.
Disconnect the sensor wiring.

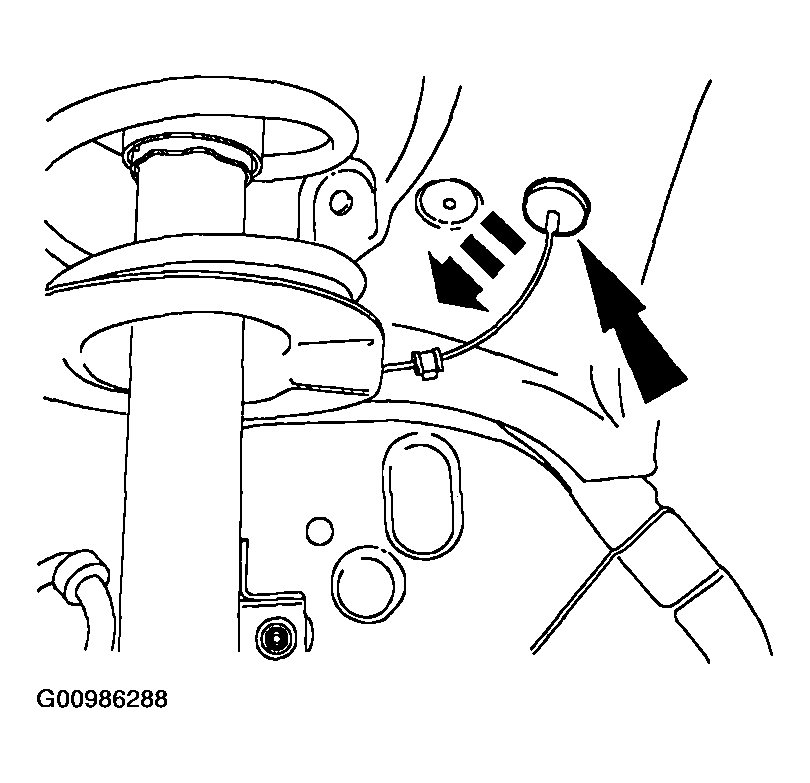

Fig 2: Disconnect Sensor Wiring - Front Sensor
Courtesy of MAZDA MOTORS CORP.
Detach the retainer.

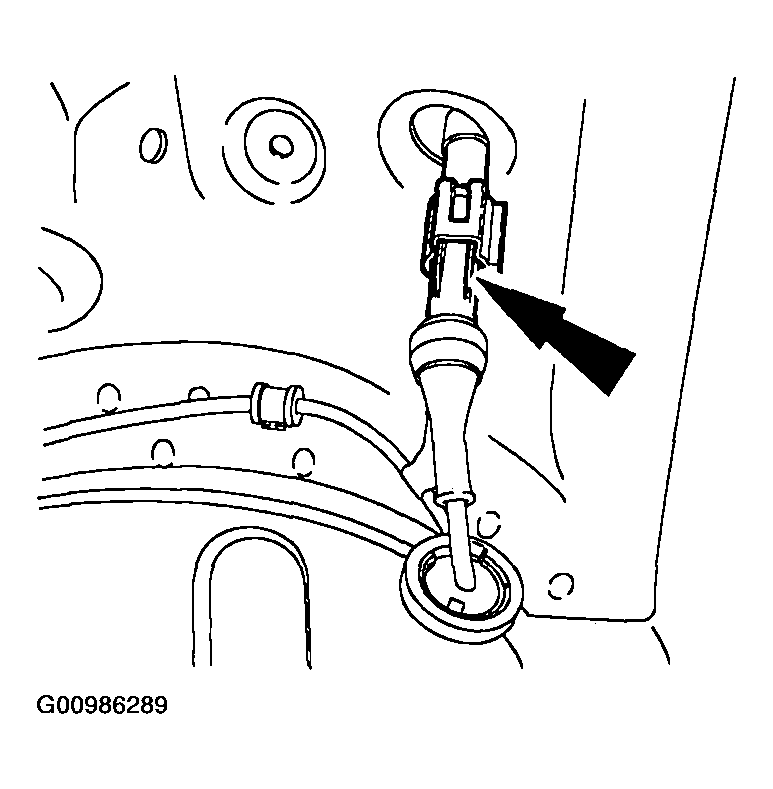

Fig 3: Locating Retainer - Front Sensor
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

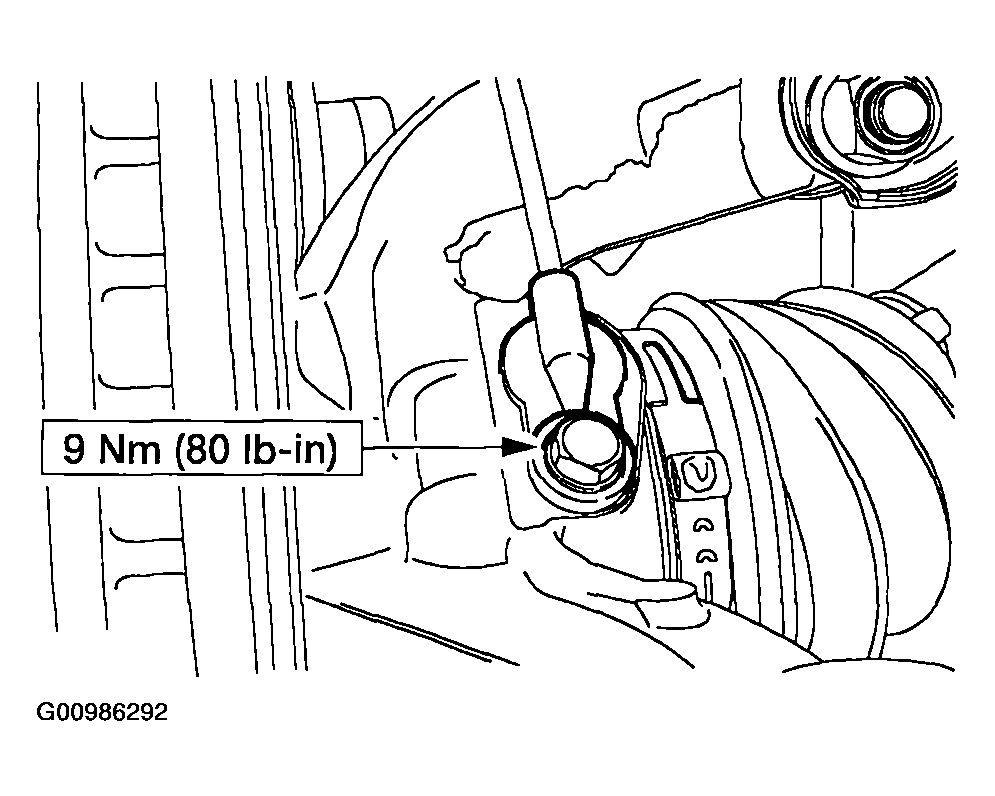

Fig 4: Locating Bolt - Front Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Clean off any dirt that may have collected around the sensor before removal.
Remove the bolt and the sensor.

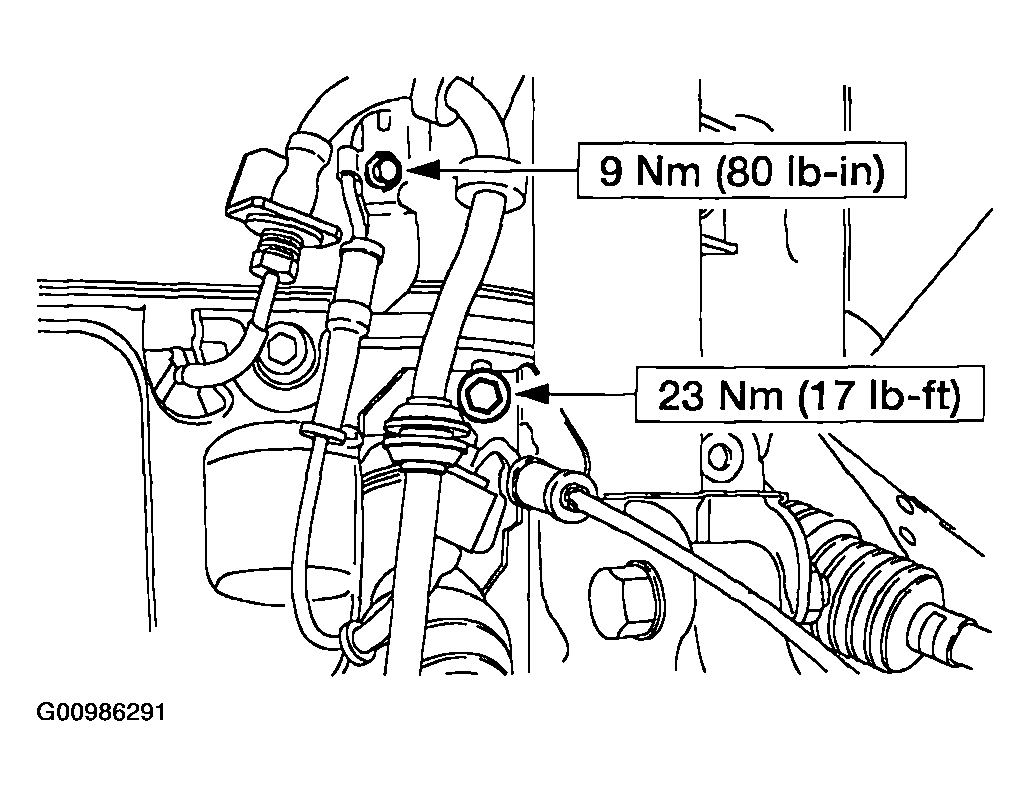

Fig 5: Locating Sensor Bolt - Front Sensor
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Thoroughly clean the mounting surface.
To install, reverse the removal procedure.
