Removal & Installation

  1. Remove the camshaft position (CMP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the sensor.

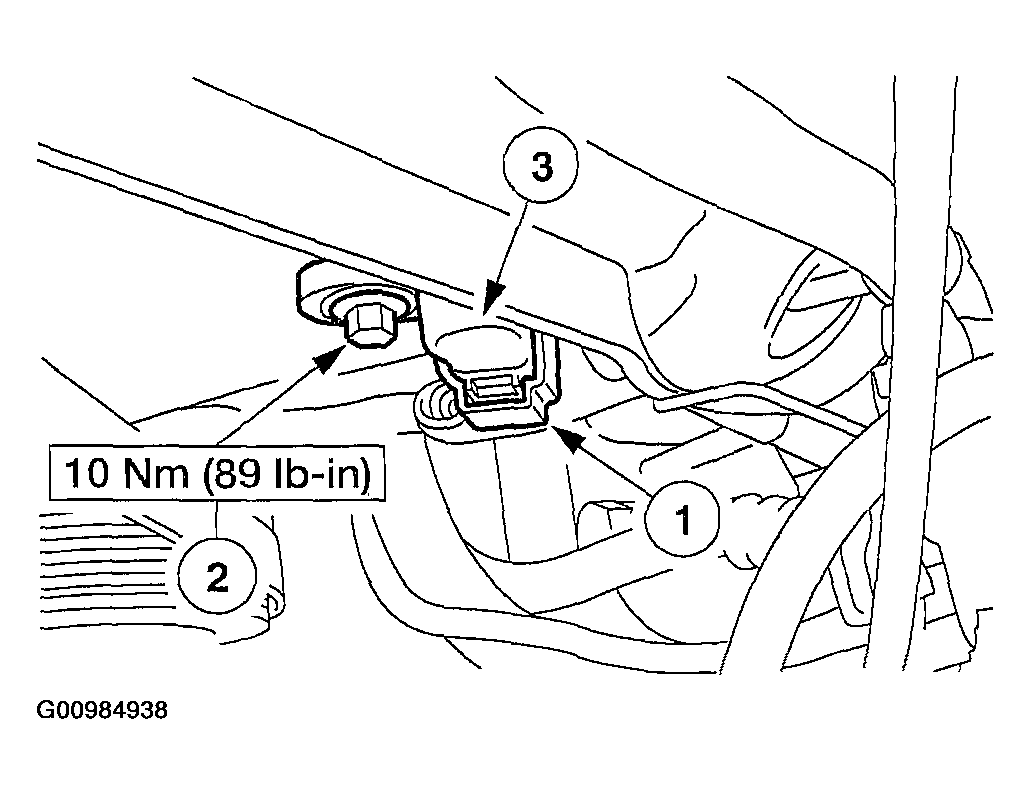

      4. Fig 1: Identifying CMP Sensor Electrical Connector, Bolt & Sensor (3.0L)
      G00984938Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.
