Removal & Installation

  1. Remove the catalytic converter. Refer to CATALYTIC CONVERTER -- 2.0L ZETEC .
  2. Remove the crankshaft position (CKP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the bolt.
    3. Remove the sensor.

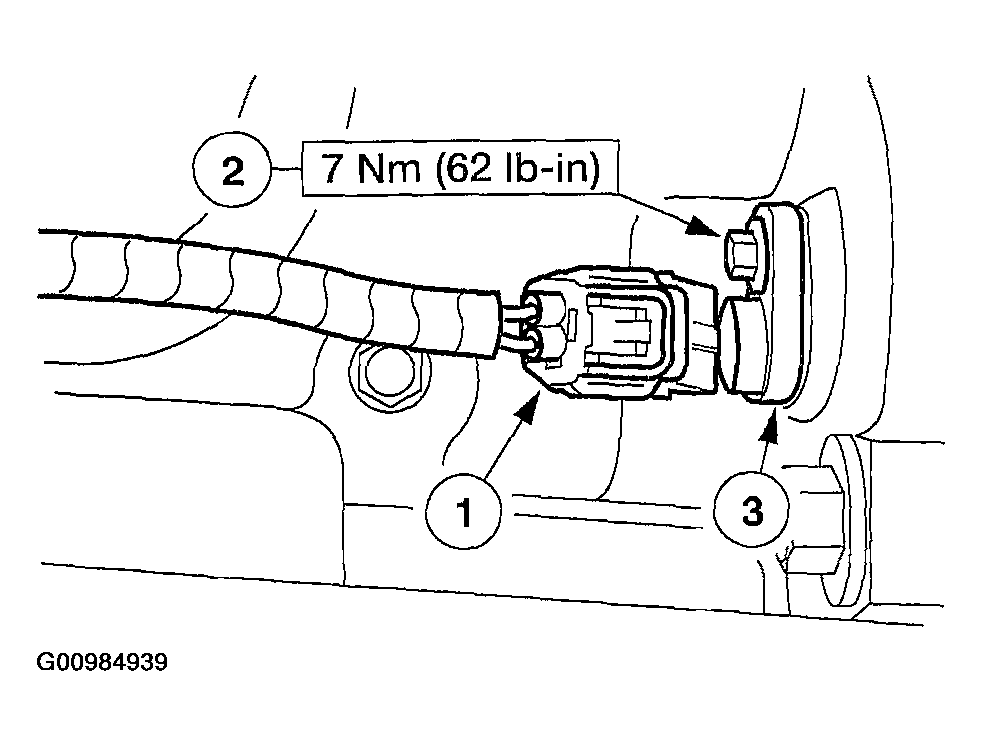

      4. Fig 1: Identifying CKP Sensor Electrical Connector, Bolt & Sensor (2.0L)
      G00984939Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
