Removal & Installation

NOTE:
  • Air cleaner outlet tube is removed for clarity.
  1. Remove the throttle position (TP) sensor.
    1. Disconnect the electrical connector.
    2. Remove the screws.
    3. Remove the sensor.

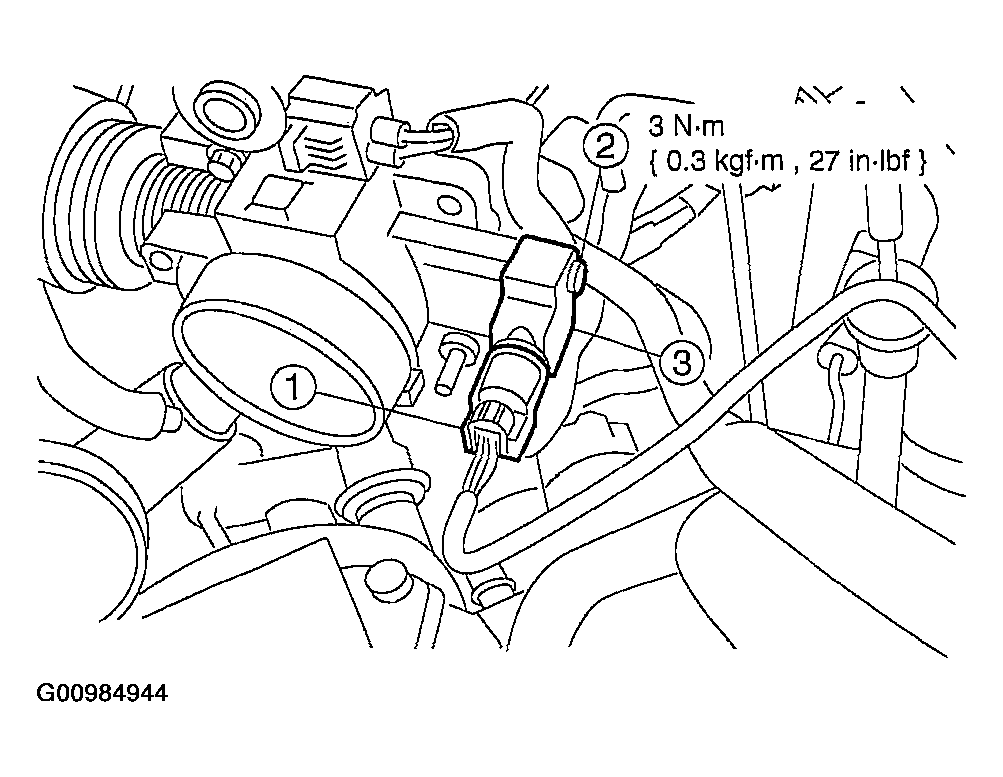

    Fig 1: Identifying TP Sensor Electrical Connector, Screws & Sensor (3.0L)
    G00984944Courtesy of MAZDA MOTORS CORP.
  2. To install, reverse the removal procedure.
