Speed Control Actuator: Removal

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

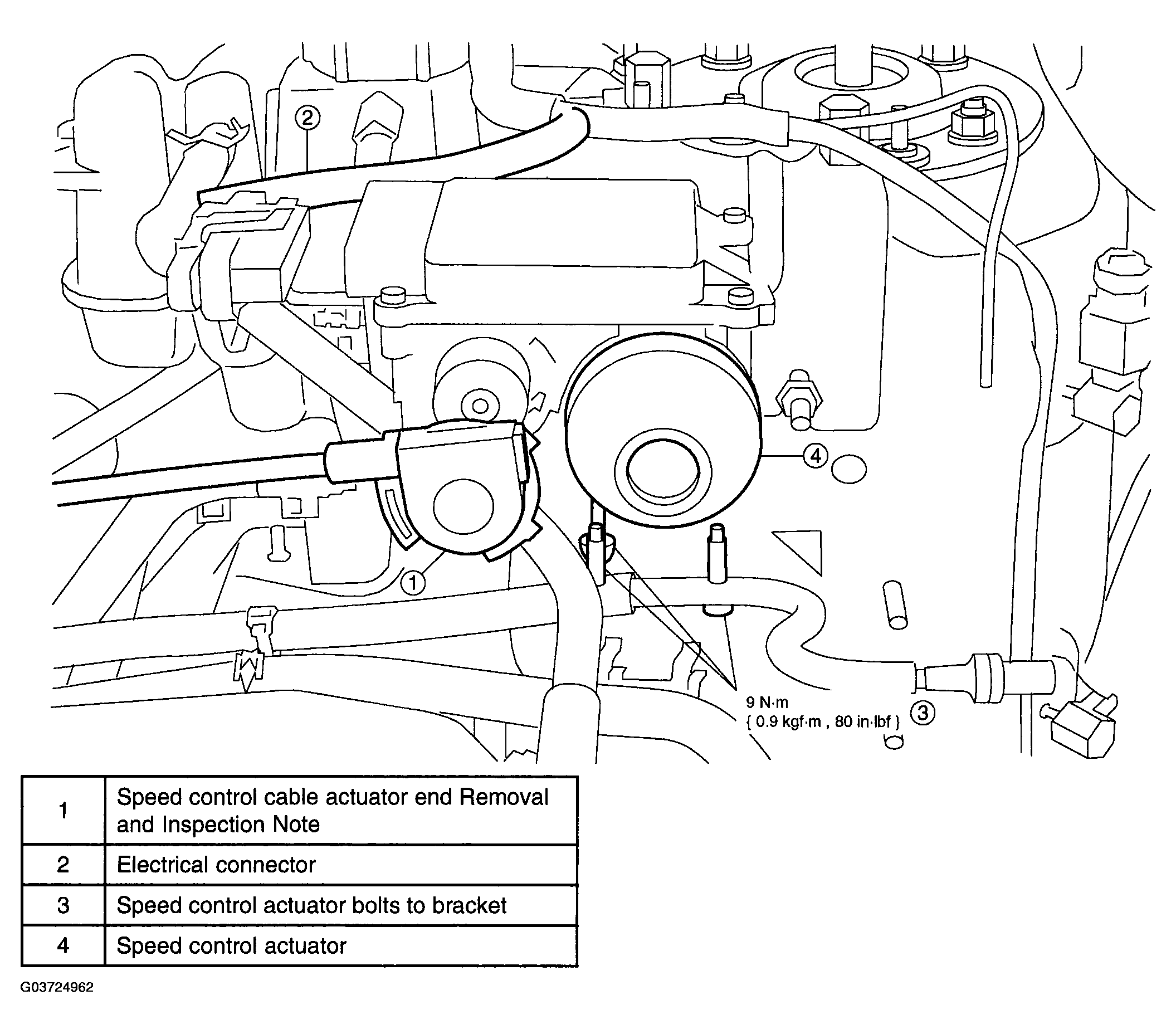

Fig 1: Speed Control Actuator With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

Disconnect the battery ground cable. See BATTERY DISCONNECT .
Press the locking tab and rotate the cruise control cable cap to remove.

Fig 2: Removing Cruise Control Cable Cap
Courtesy of MAZDA MOTORS CORP.
Disconnect the cruise control cable from the cruise control actuator pulley.
1. Gently push the retaining spring.
2. Disconnect the cruise control cable slug from the cruise control actuator pulley.
Fig 3: Disconnecting Cruise Control Cable
Courtesy of MAZDA MOTORS CORP.
Remove the cruise control actuator assembly.
1. Disconnect the electrical connector.
2. Separate the wire harness from the bracket.
3. Remove the nuts.

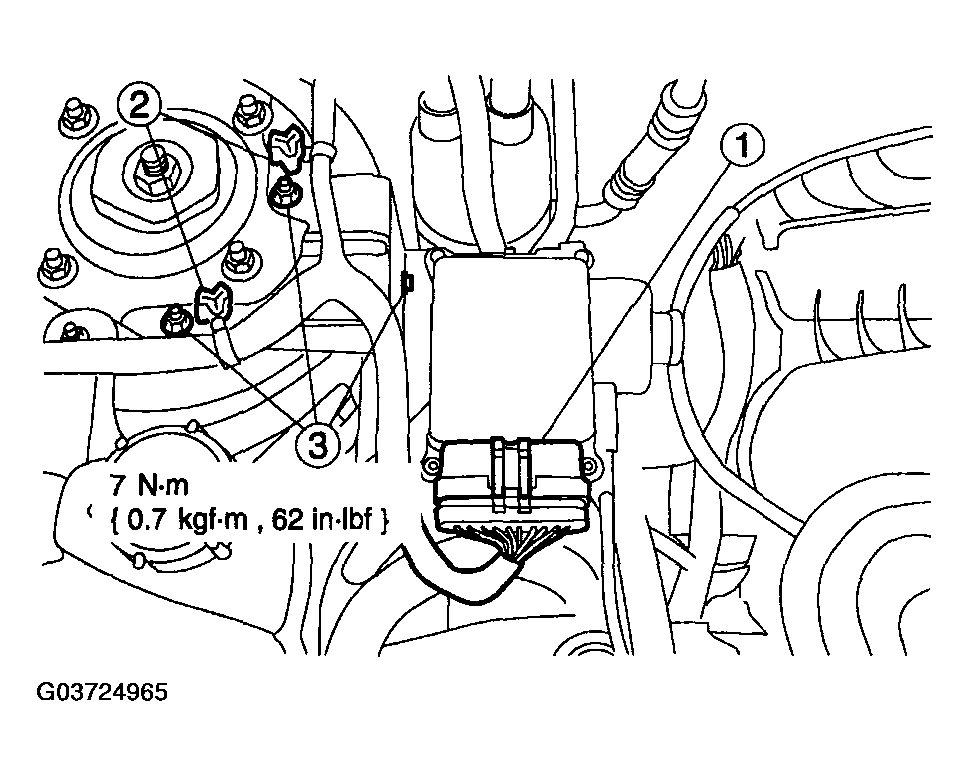

Fig 4: Removing Cruise Control Actuator Assembly & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and separate the cruise control actuator from the bracket.

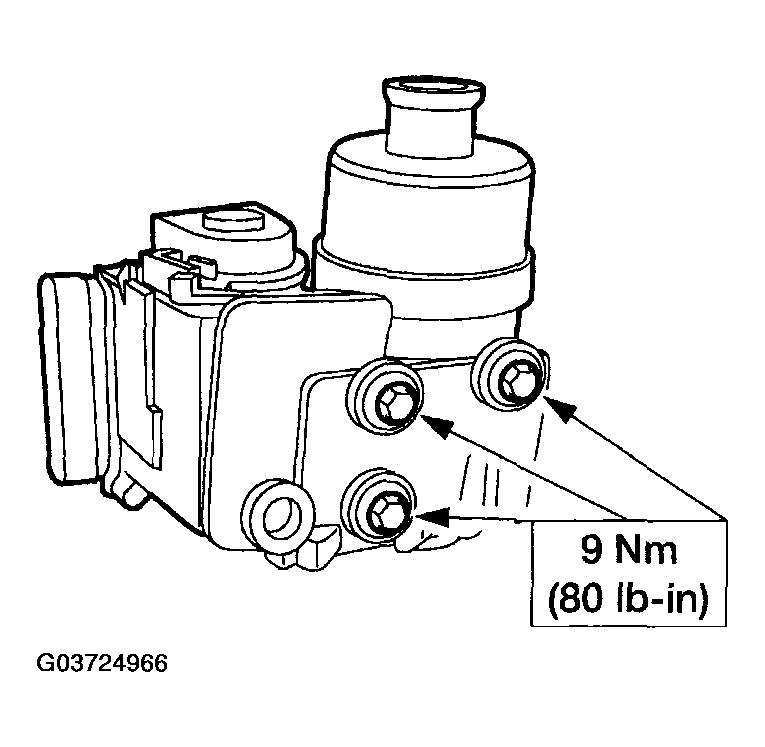

Fig 5: Removing Cruise Control Actuator From Bracket & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
