Center Register Duct: Notes
WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Center Register Duct (Items 1-3)
Courtesy of MAZDA MOTORS CORP.

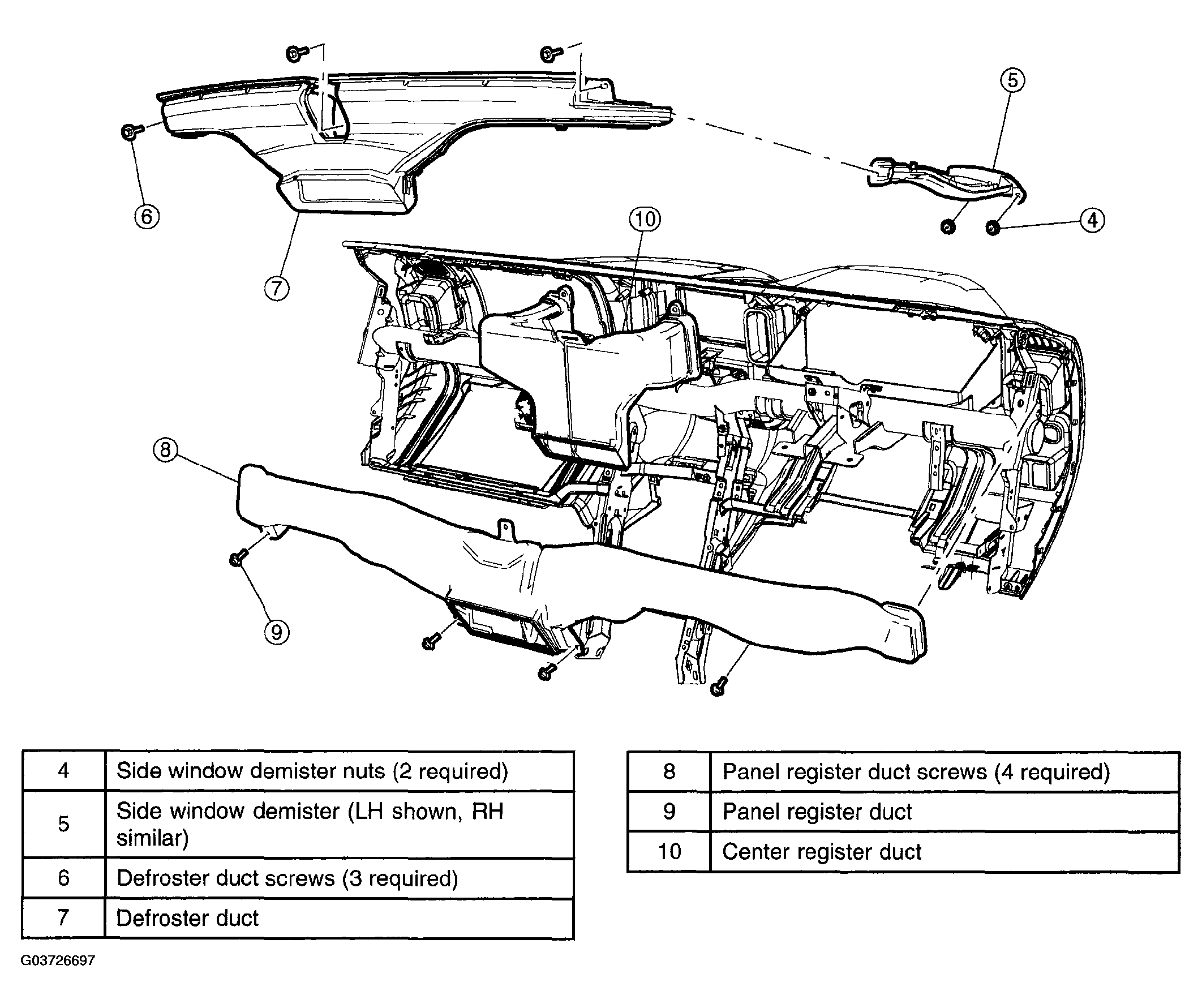

Fig 2: Identifying Center Register Duct (Items 4-10)
