Suction Accumulator To Compressor Line - 2.3L: Notes

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

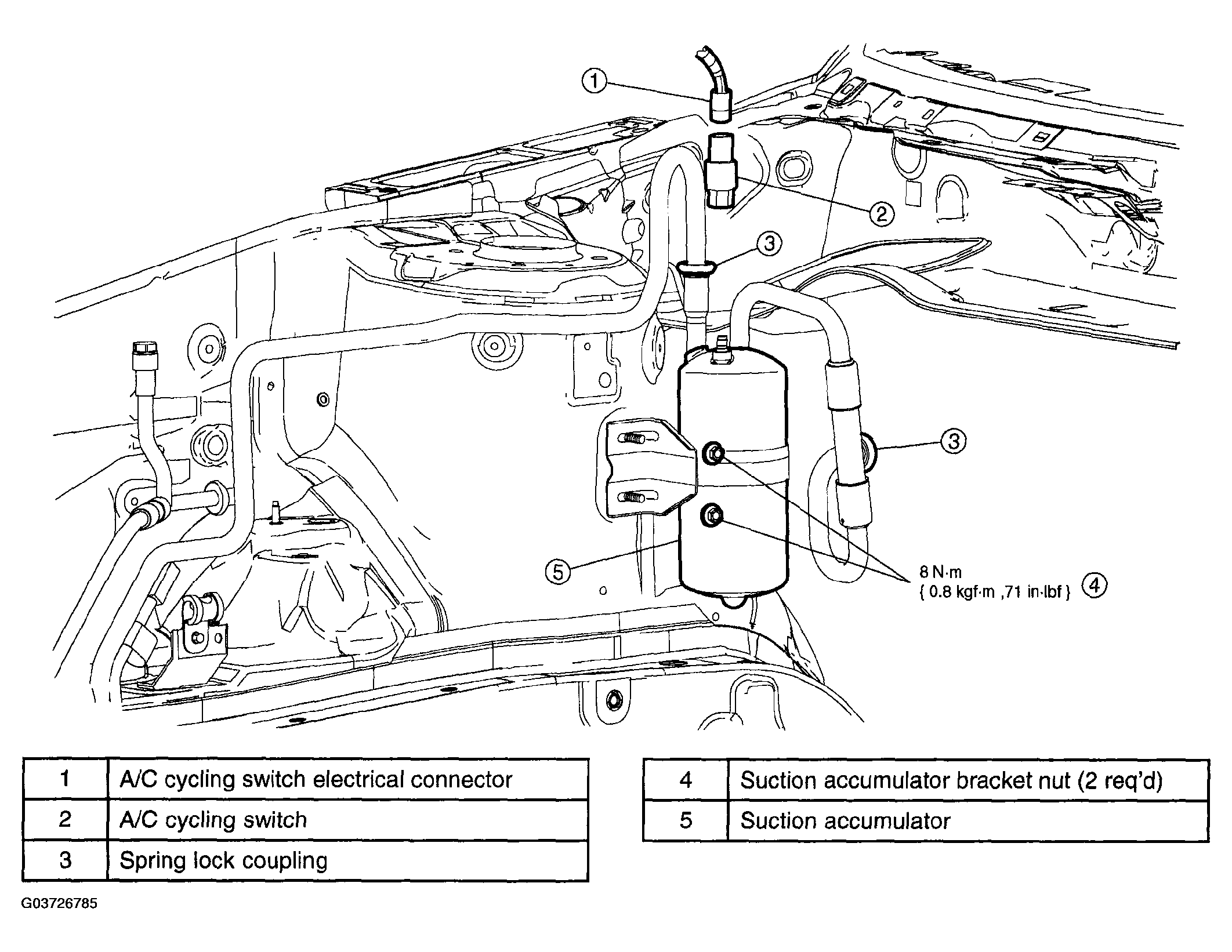

Fig 1: Suction Accumulator To Compressor Line -- 2.3L -- With Torque Specifications
G03726785Courtesy of MAZDA MOTORS CORP.
