Removal and Installation

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel center finish panel. See INSTRUMENT CLUSTER FINISH PANEL .

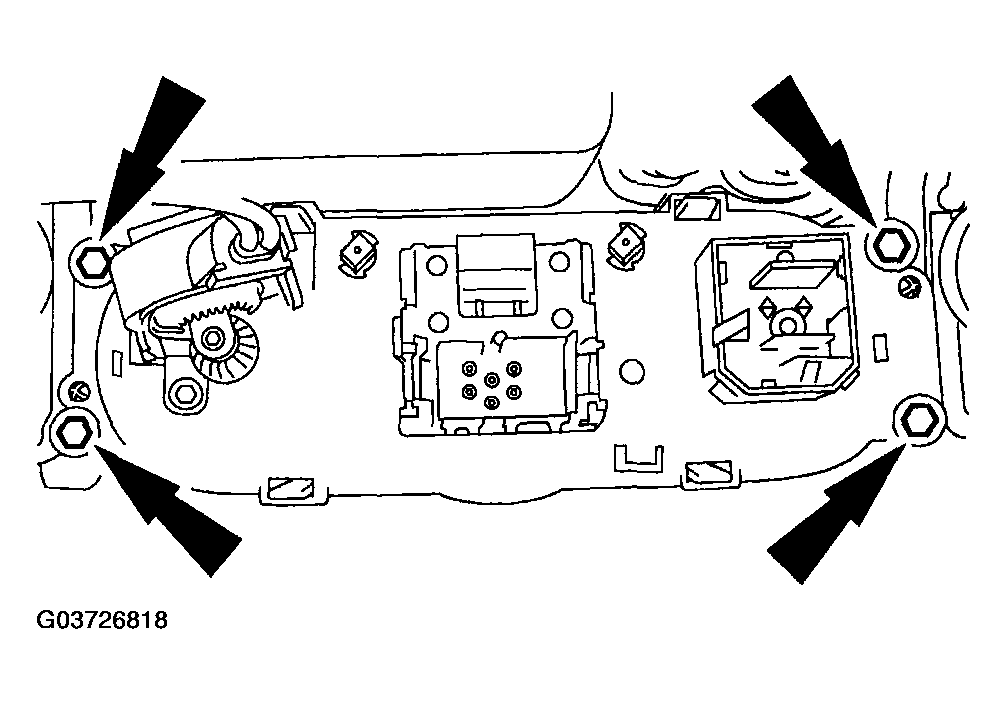

    2. Fig 1: Removing Screws And Climate Control Assembly
    G03726818Courtesy of MAZDA MOTORS CORP.
  2. Remove the four screws and the climate control assembly.
  3. To install, reverse the removal procedure.
