Transaxle Support Insulator - Lower, Front: Installation

Install a new rubber mount.

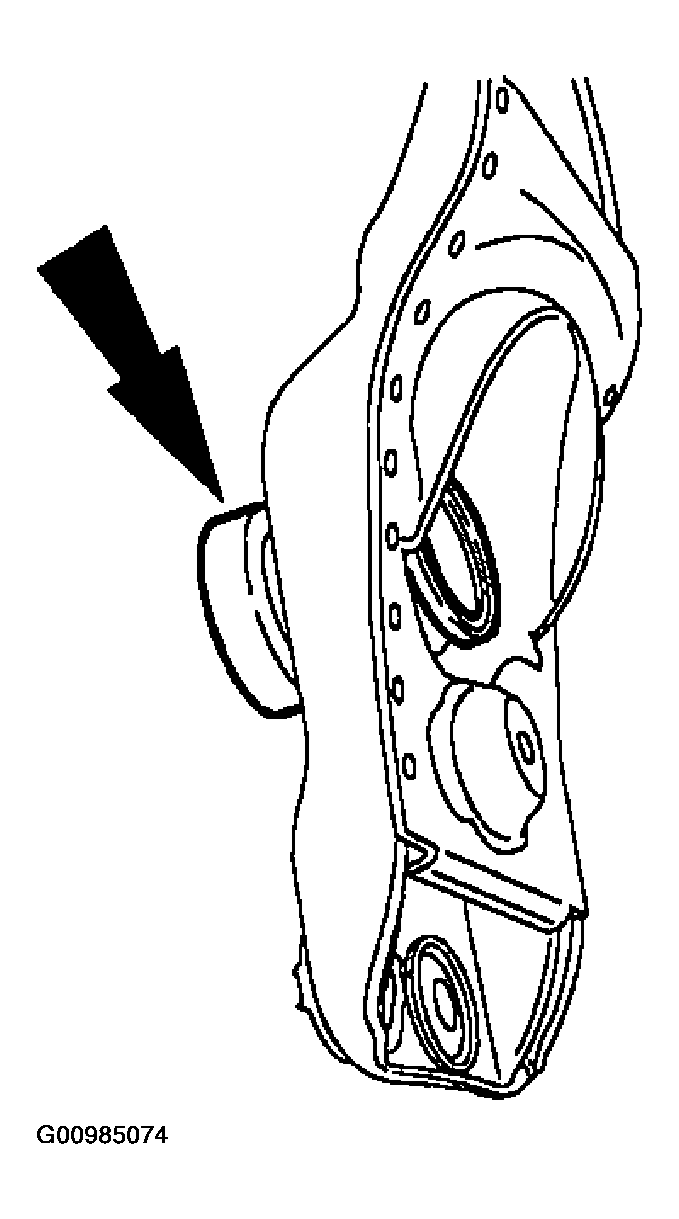

Fig 1: Identifying New Rubber Mount
Courtesy of MAZDA MOTORS CORP.
Install the top and bottom mount cups.

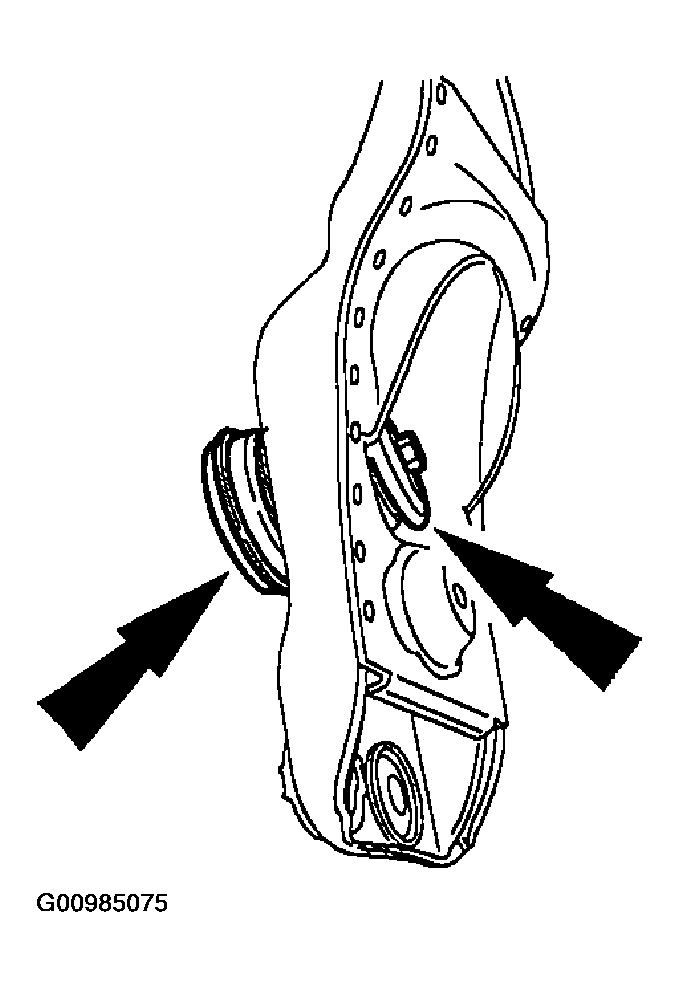

Fig 2: Identifying Top & Bottom Mount Cups
Courtesy of MAZDA MOTORS CORP.
Install the cross brace.

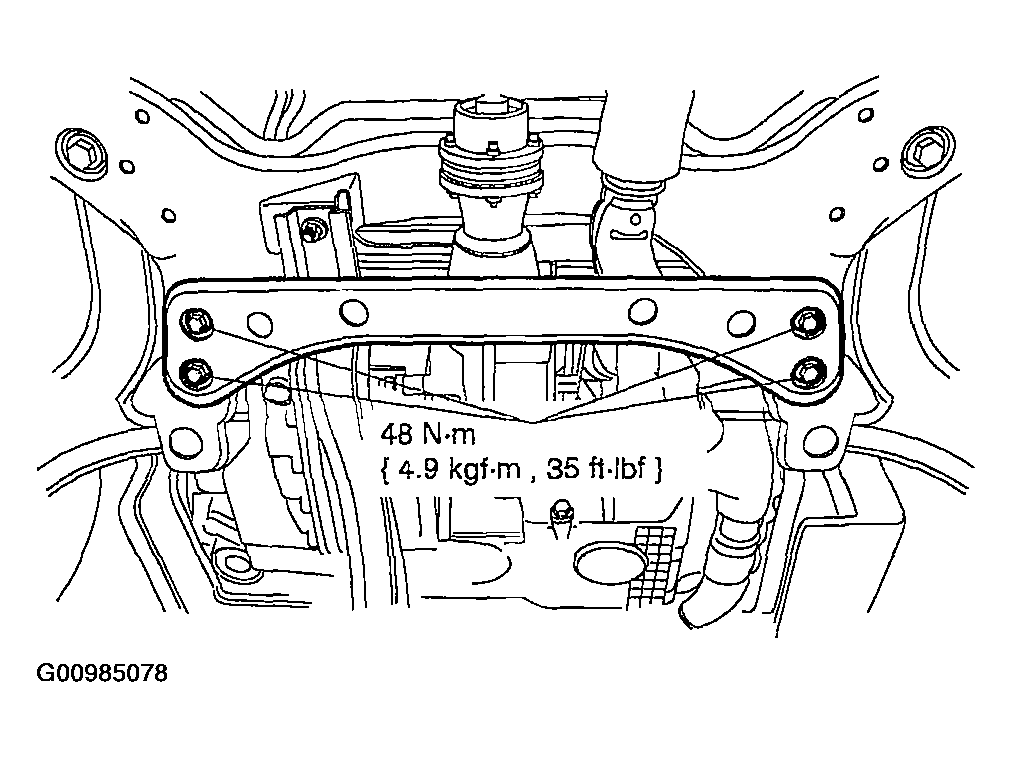

Fig 3: Installing Cross Brace
Courtesy of MAZDA MOTORS CORP.
Install the lower vibration dampener.

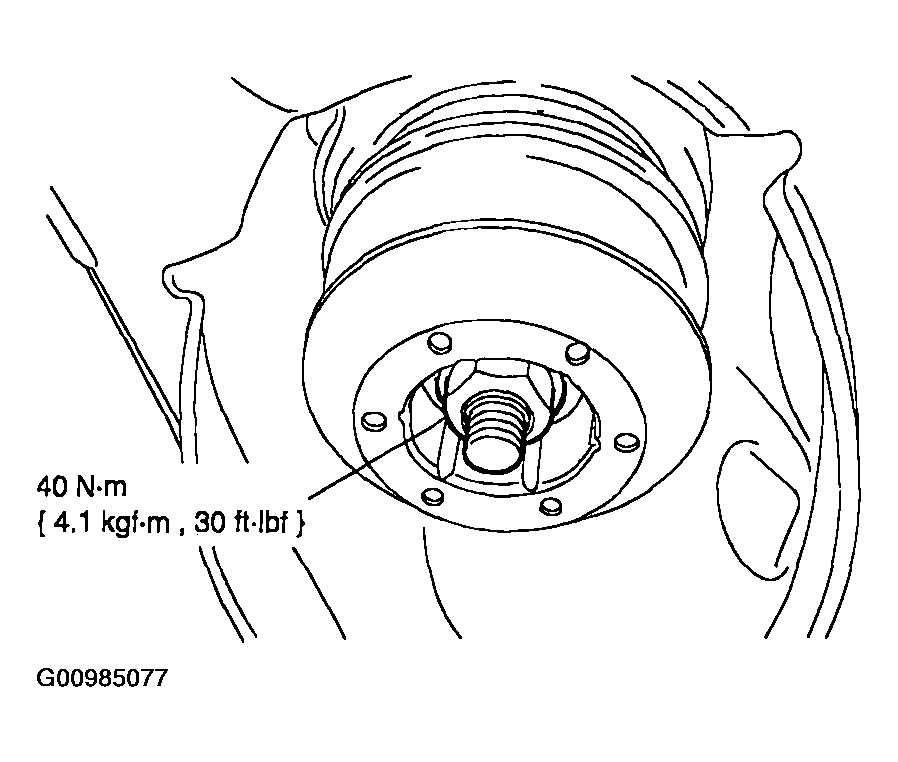

Fig 4: Installing Lower Vibration Dampener Nut
Courtesy of MAZDA MOTORS CORP.
Install the cross brace.

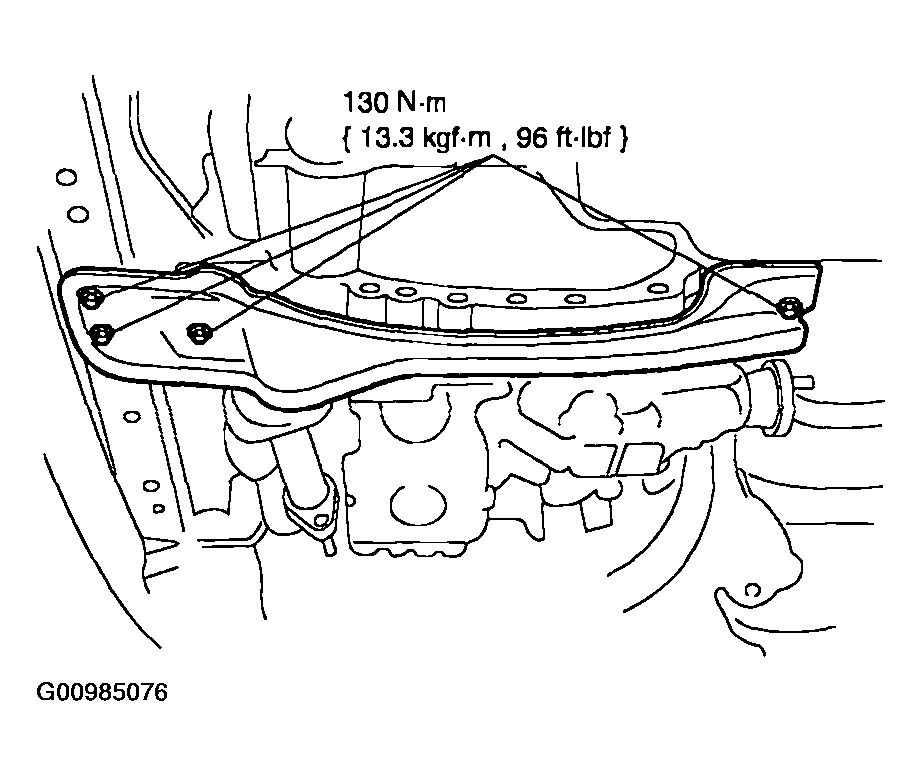

Fig 5: Installing Cross Brace Nuts
Courtesy of MAZDA MOTORS CORP.
Install the splash shield.

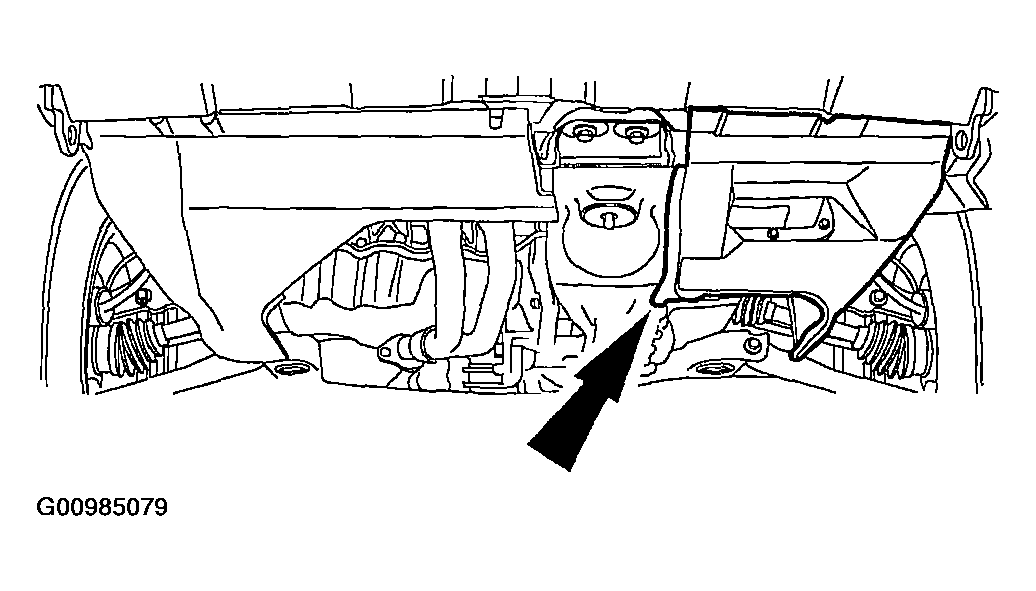

Fig 6: Identifying Splash Shield
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
