Wheel Alignment Angles: Caster

WARNING: This page is about a different car, the 2005 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Caster is the tilting of the steering axis either forward or backward from vertical.

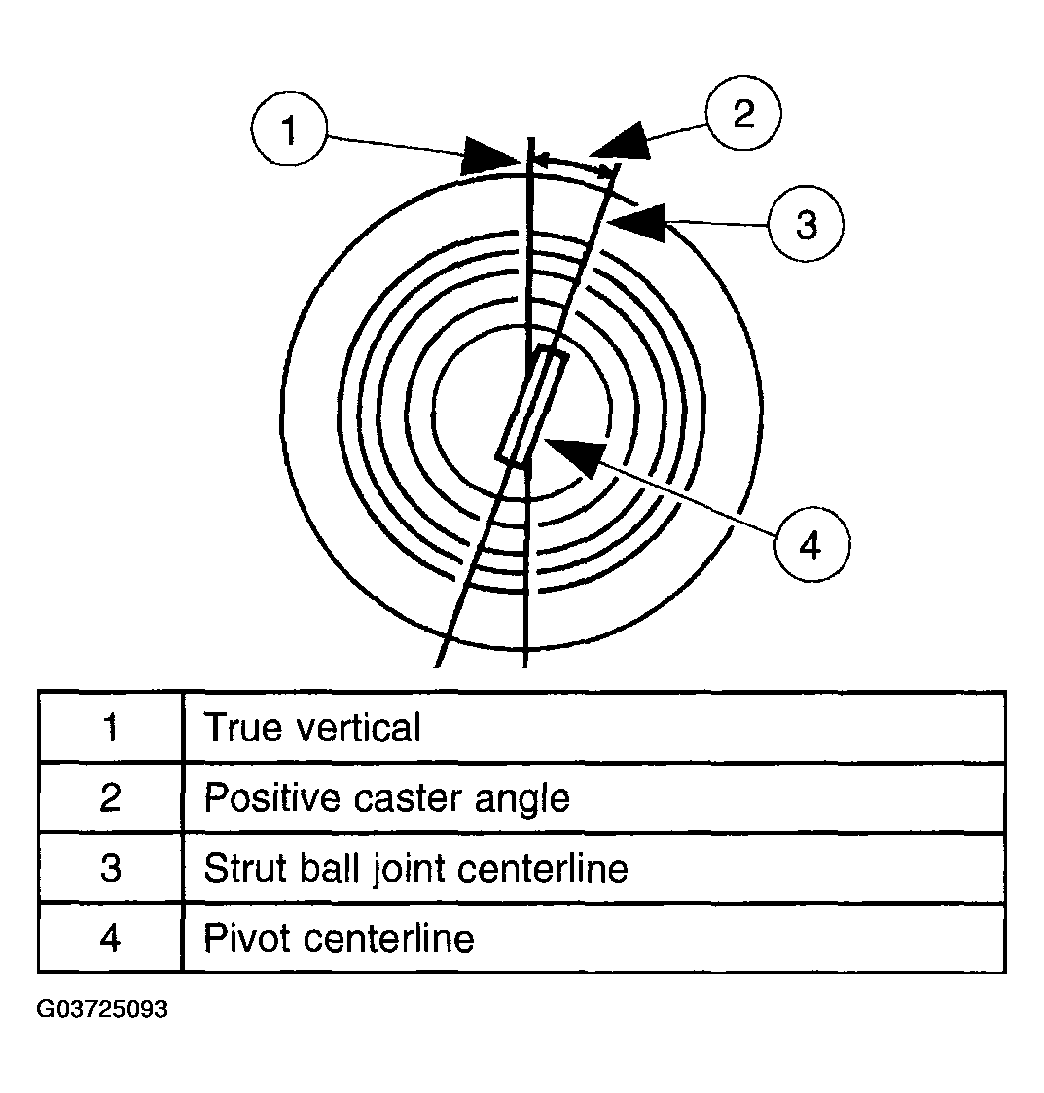

Fig 1: Identifying Caster Is Tilting Of Steering Axis Either Forward Or Backward From Vertical

Courtesy of MAZDA MOTORS CORP.

A backward tilt is positive (+) and a forward tilt is negative (-). Front caster adjustment is not a separate procedure on this vehicle. Front caster should fall within specification when the front camber is adjusted.
