Heating and Air Conditioning: Locations

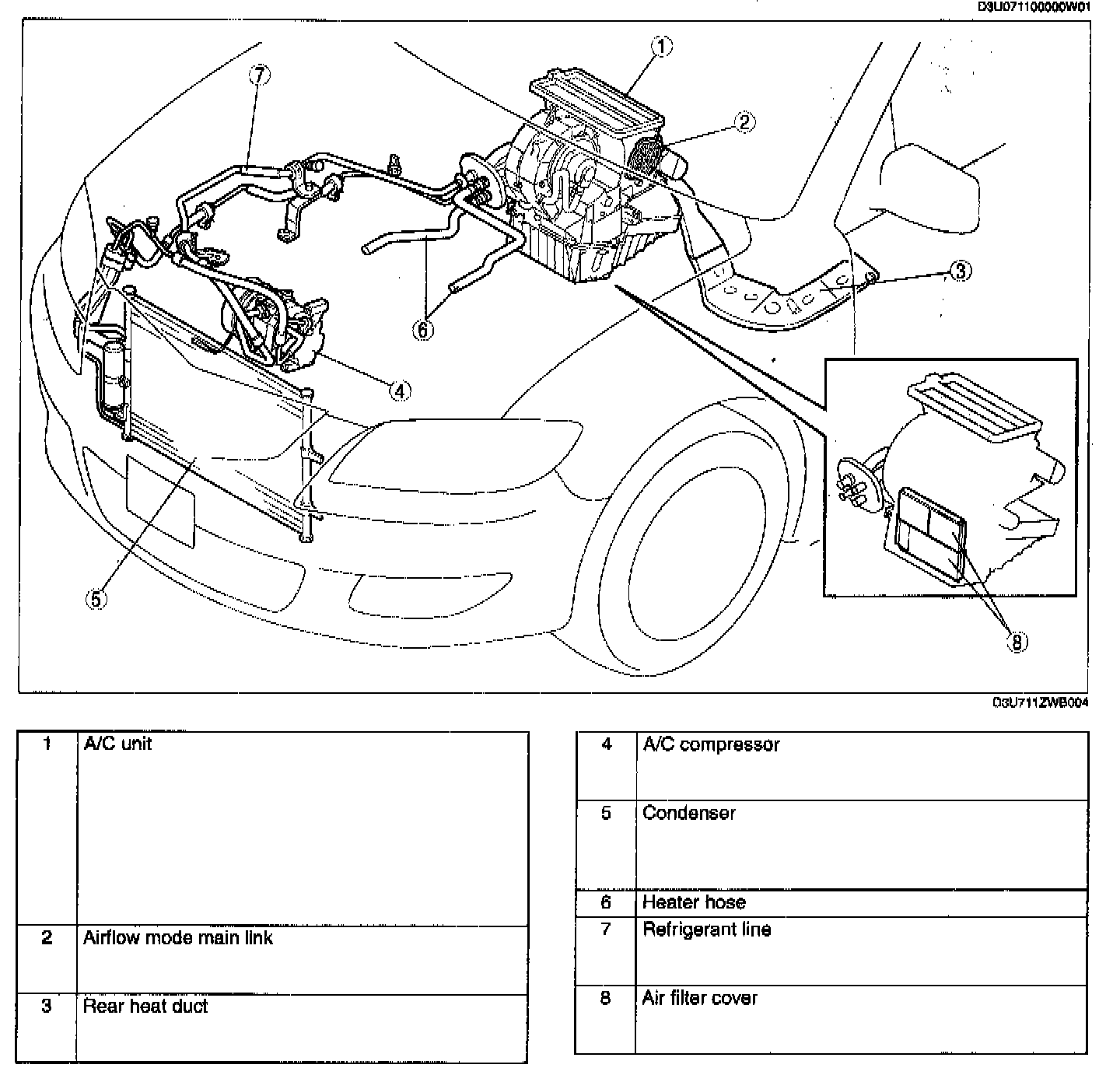

HVAC Basic System Location Index:



HVAC Control System Location Index:
