Troubleshooting Index

FOREWORD

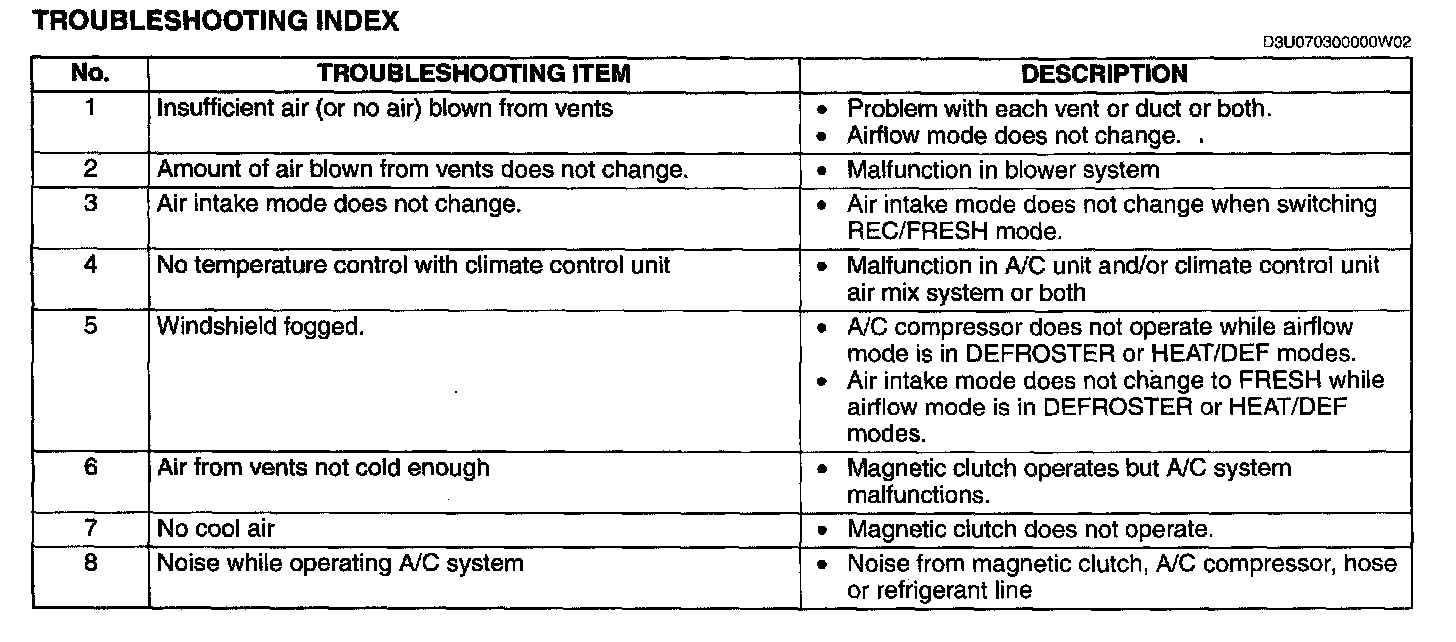

Troubleshooting Index:




- The areas for inspection (steps) are given according to various circuit malfunctions. Use the following chart to verify the symptoms of the trouble in order to diagnose the appropriate area.
