Evaporative Emissions System: Diagrams

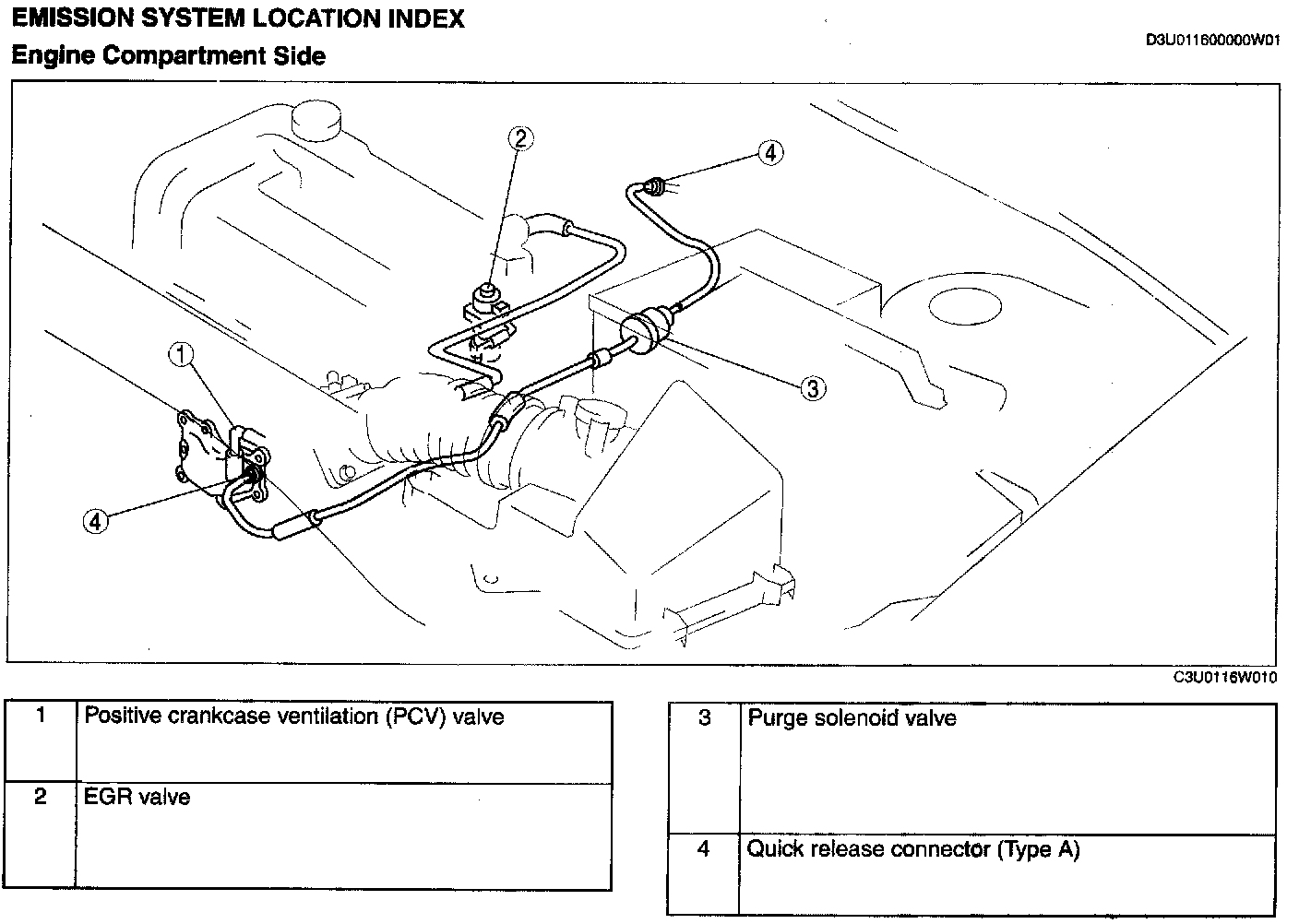

Emission System Location Index - Engine Compartment Side:



Emission System Location Index - Exhaust System:

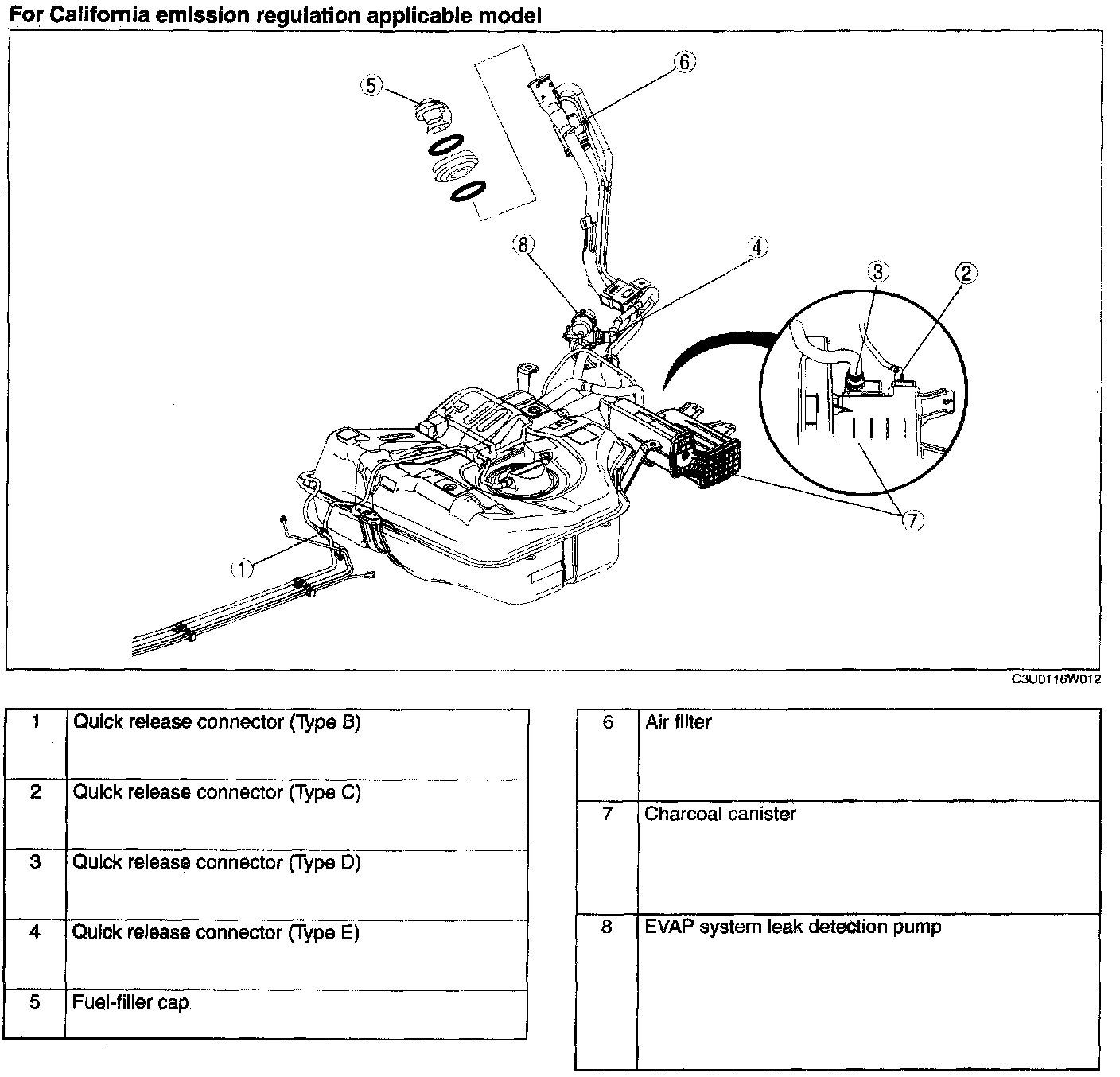

Emission System Location Index - Fuel Tank Side:

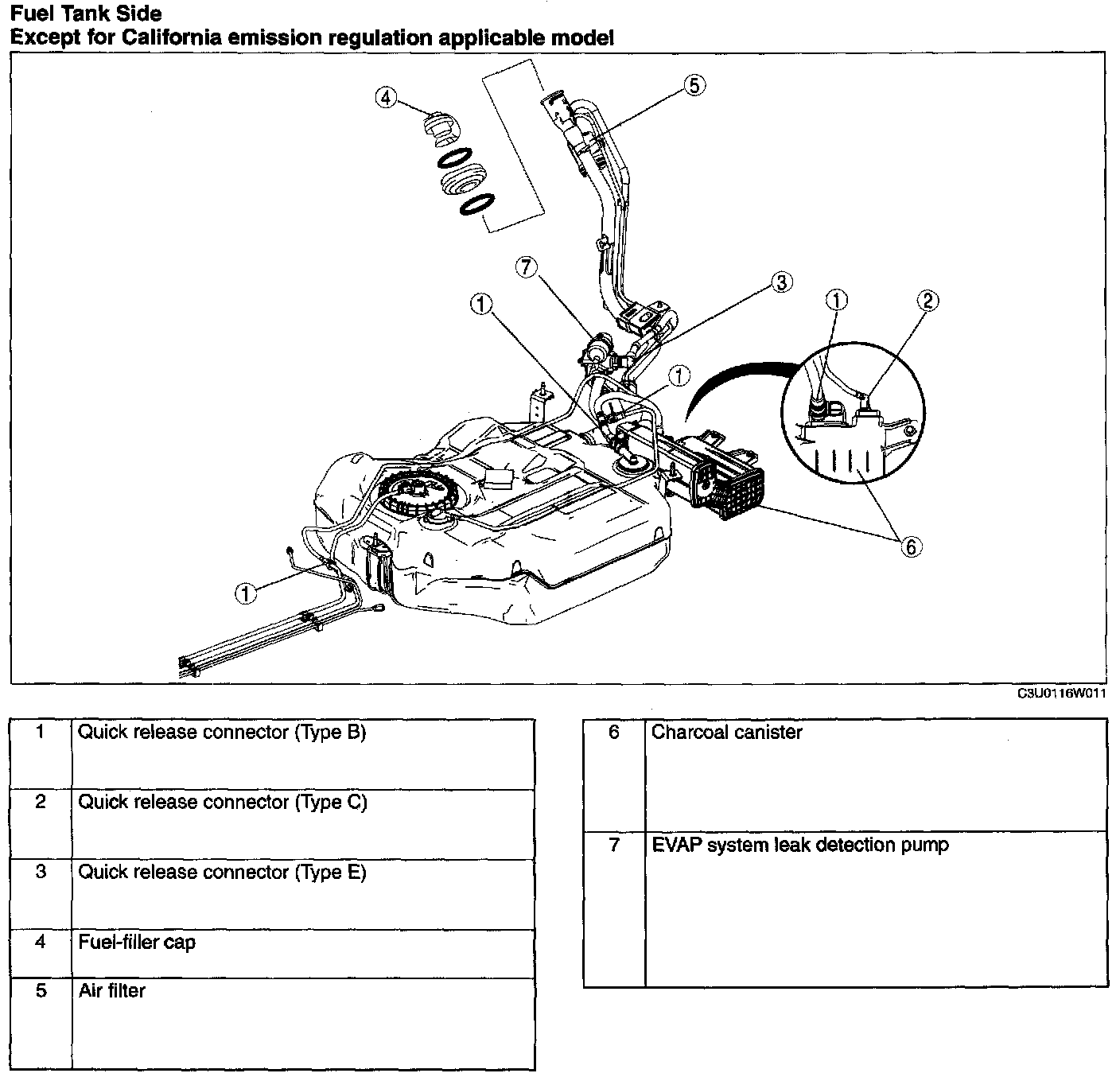

Emission System Location Index - Fuel Tank Side:

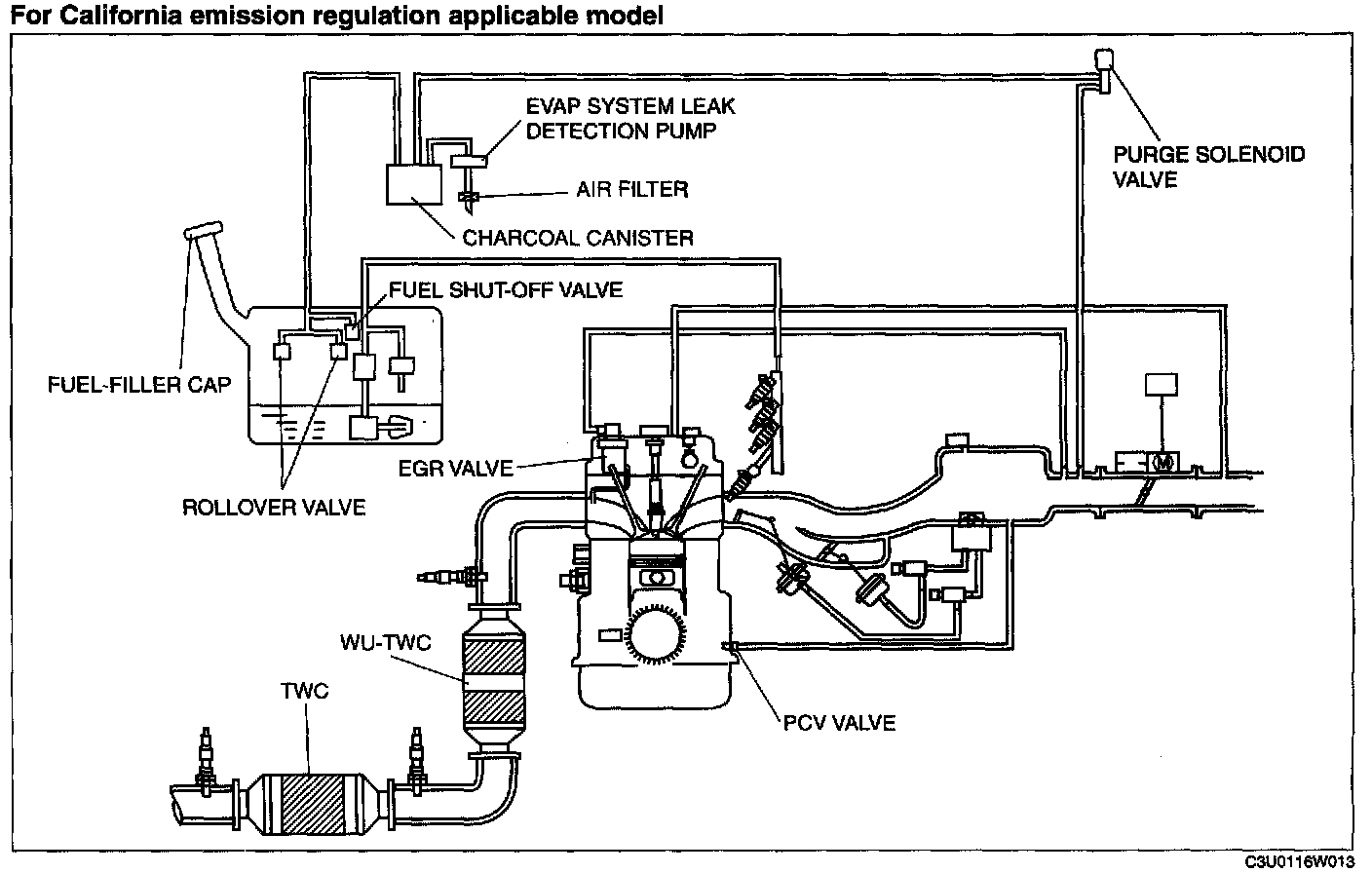

Emission System Diagram:

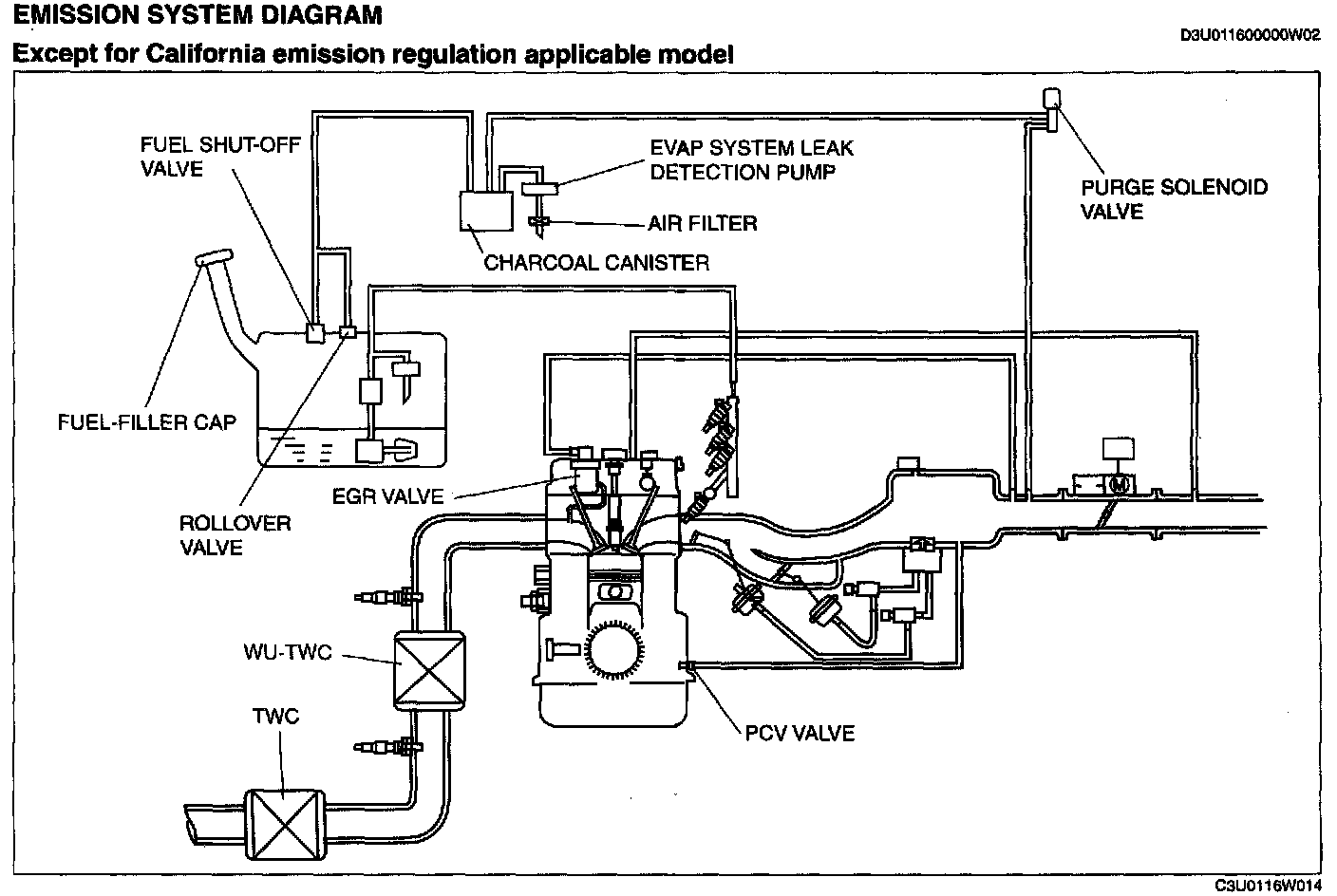

Emission System Diagram:
