ABS HU/CM

ABS HU/CM INSPECTION
1. Disconnect the ABS HU/CM connector.
2. Connect the negative battery cable.
3. Attach the tester lead to the ABS HU/CM wiring harness-side connector, then inspect the voltage, continuity, or resistance according to the standard (reference) on the table.

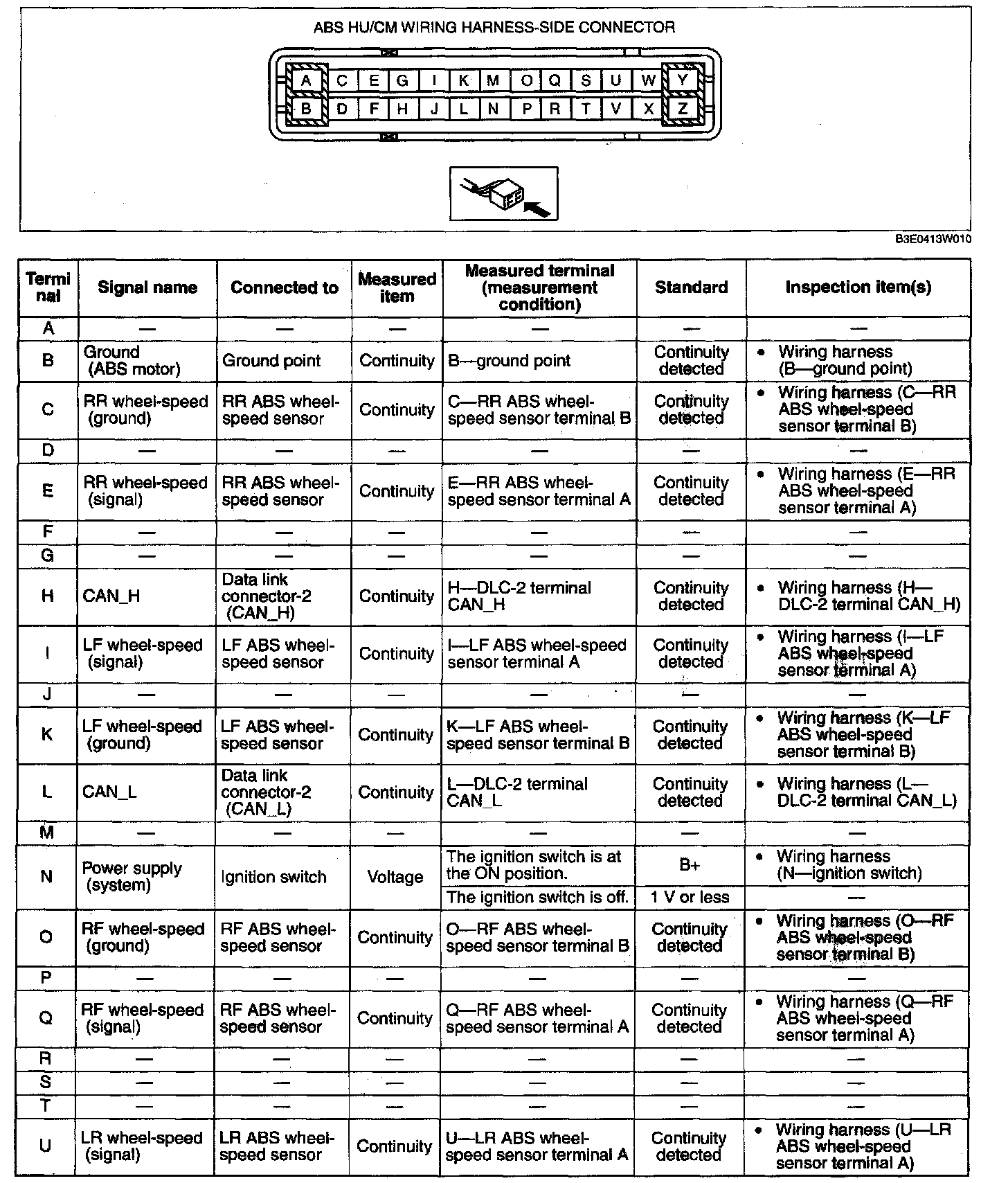

Terminal Voltage Table (Reference)
