For California Emission Regulation Applicable Model: Notes

  1. Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION )
  2. Disconnect the negative battery cable.
  3. Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION )
  4. Remove in the order indicated in the table.

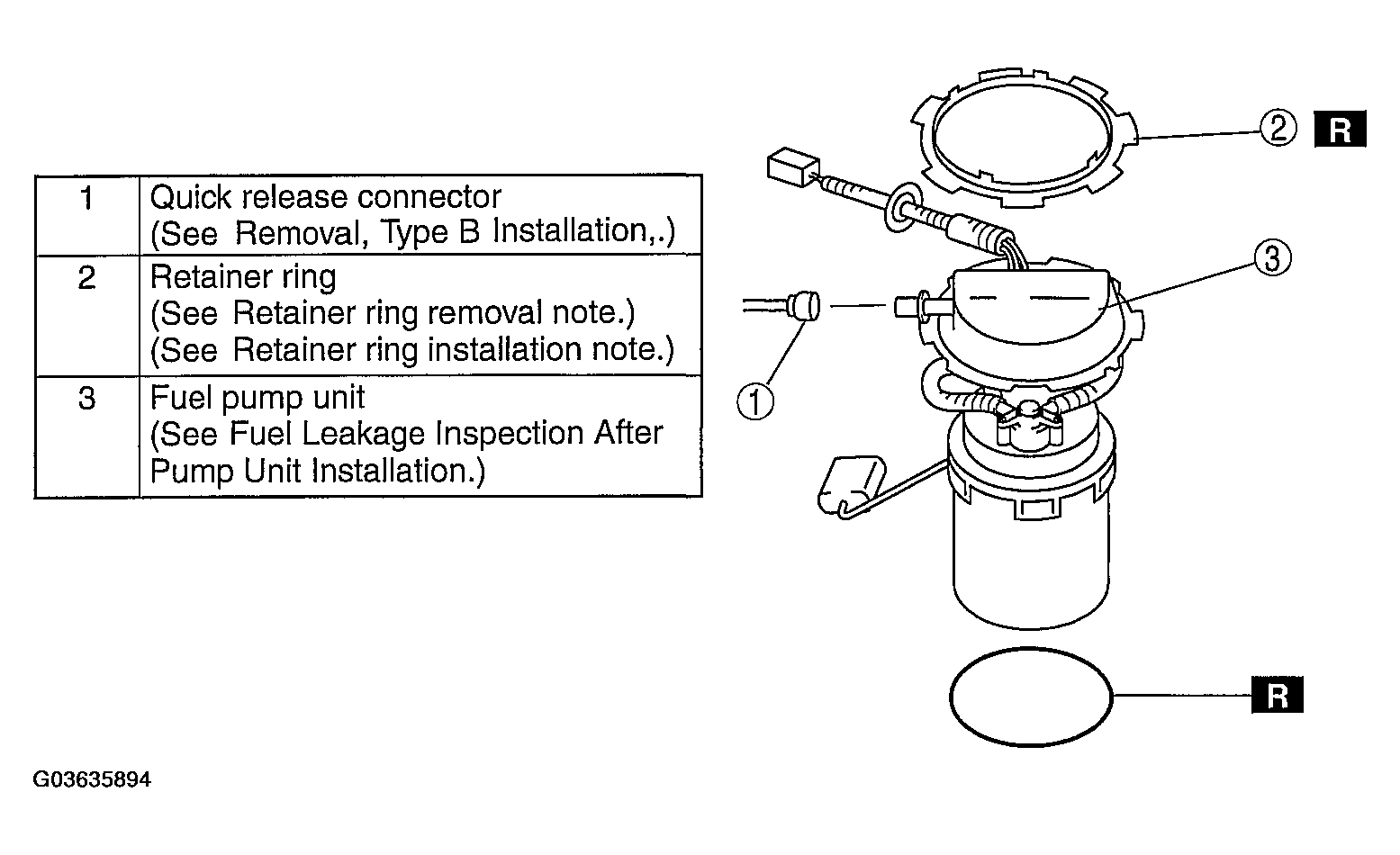

    Fig 1: Removing Fuel Pump Unit
    G03635894Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION )
