Connector Removal Note

  1. Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.
  2. Pull the connector toward the vehicle front and remove it.

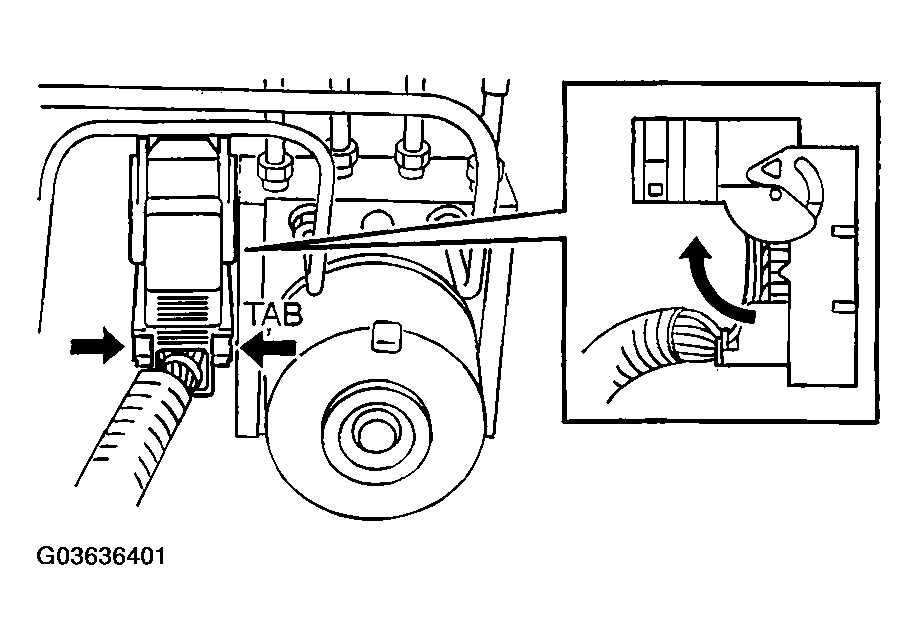

    Fig 1: Removing ABS HU/CM Connector
    G03636401Courtesy of MAZDA MOTORS CORP.
