Brake Pipe Removal Note

  1. Place an alignment mark on the brake pipe and ABS HU/CM.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Remove the brake pipe.

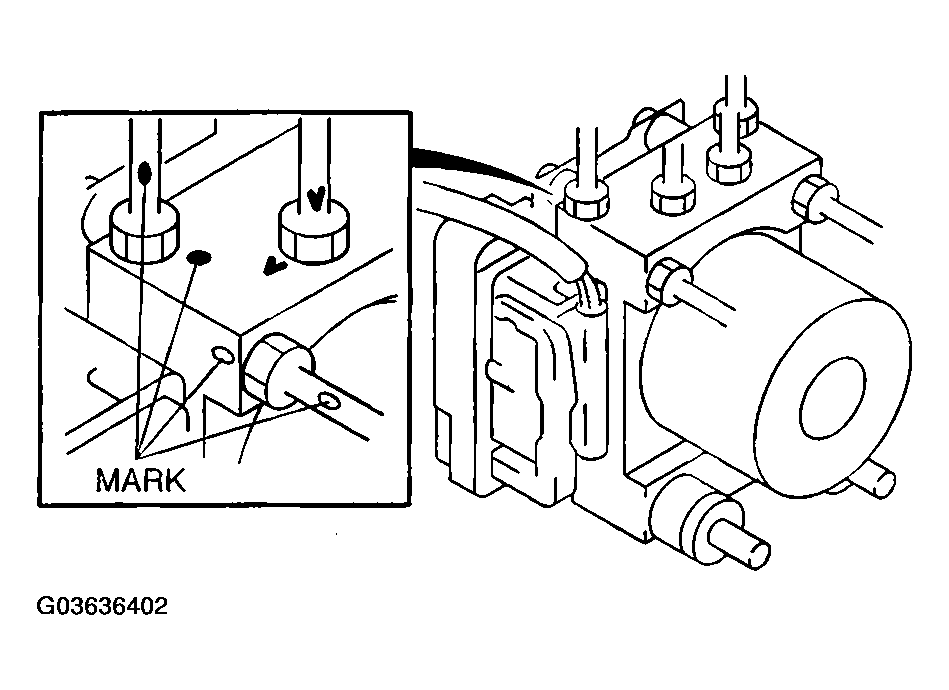

    Fig 1: Placing Alignment Marks On Brake Pipe And ABS HU/CM
    G03636402Courtesy of MAZDA MOTORS CORP.
