California Emission Regulation Applicable Model

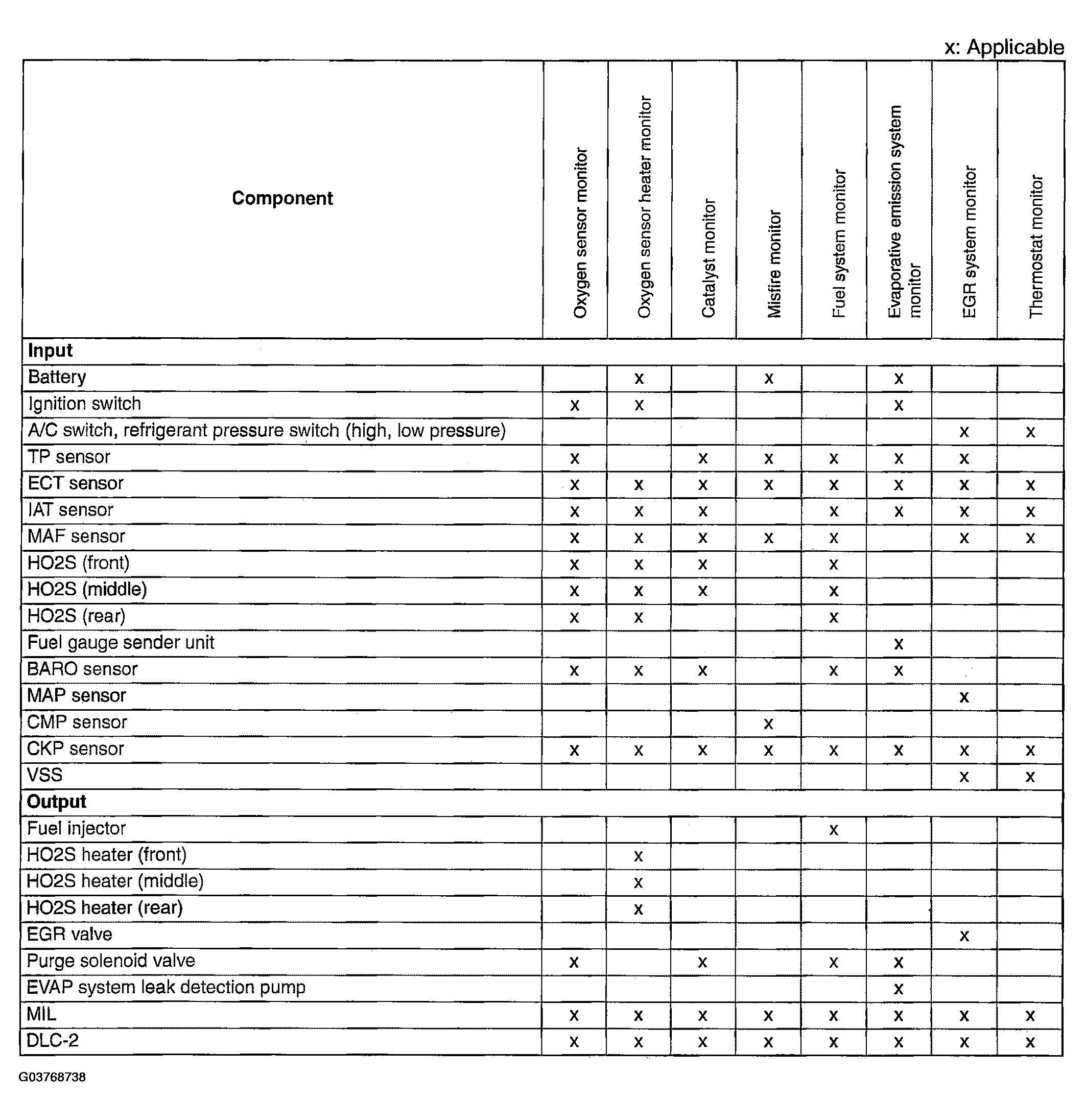

Fig 1: Monitoring System And Control System Device Relationship Chart - California
G03768738Courtesy of MAZDA MOTORS CORP.
