Computers and Control Systems: Description and Operation

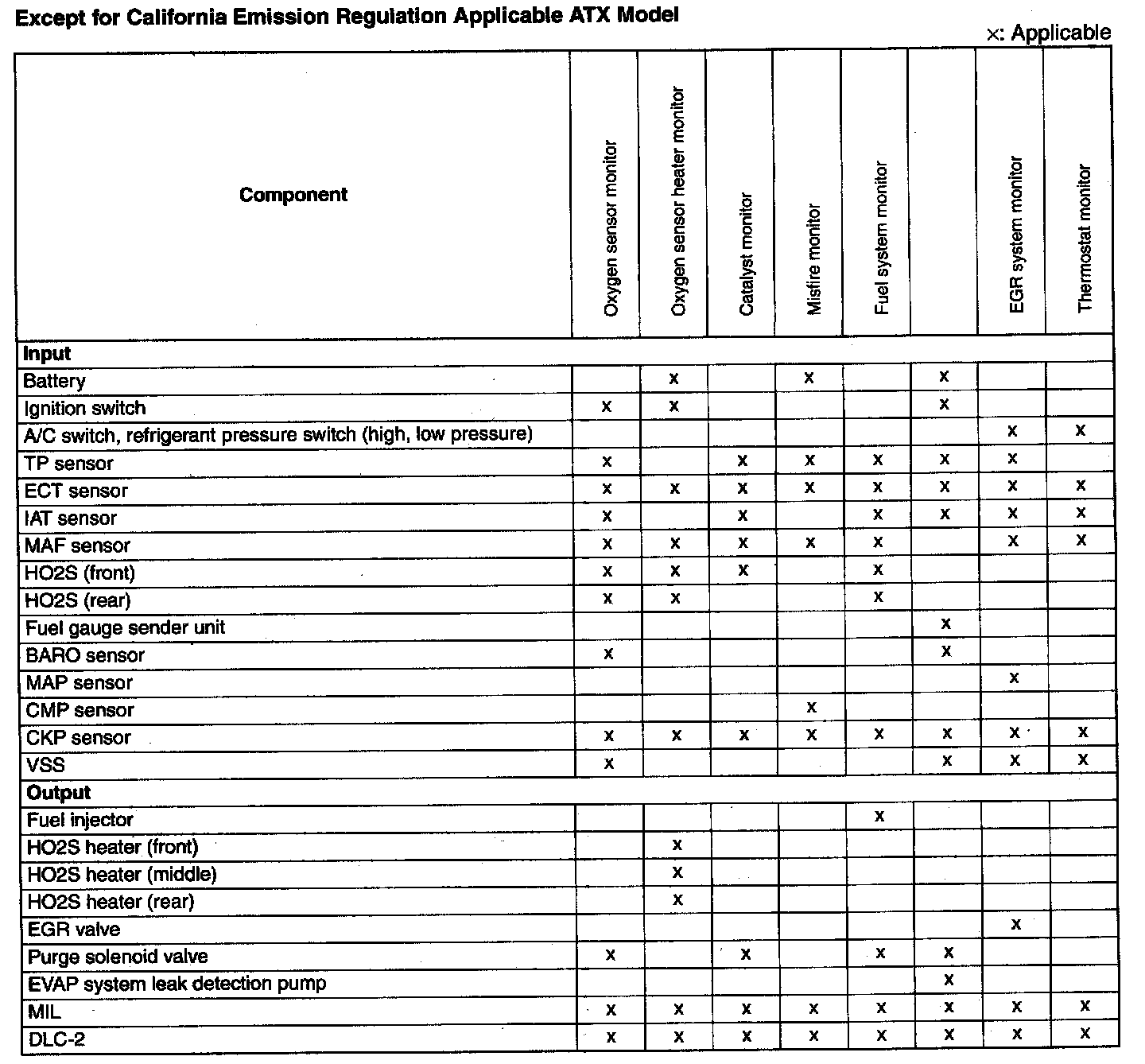

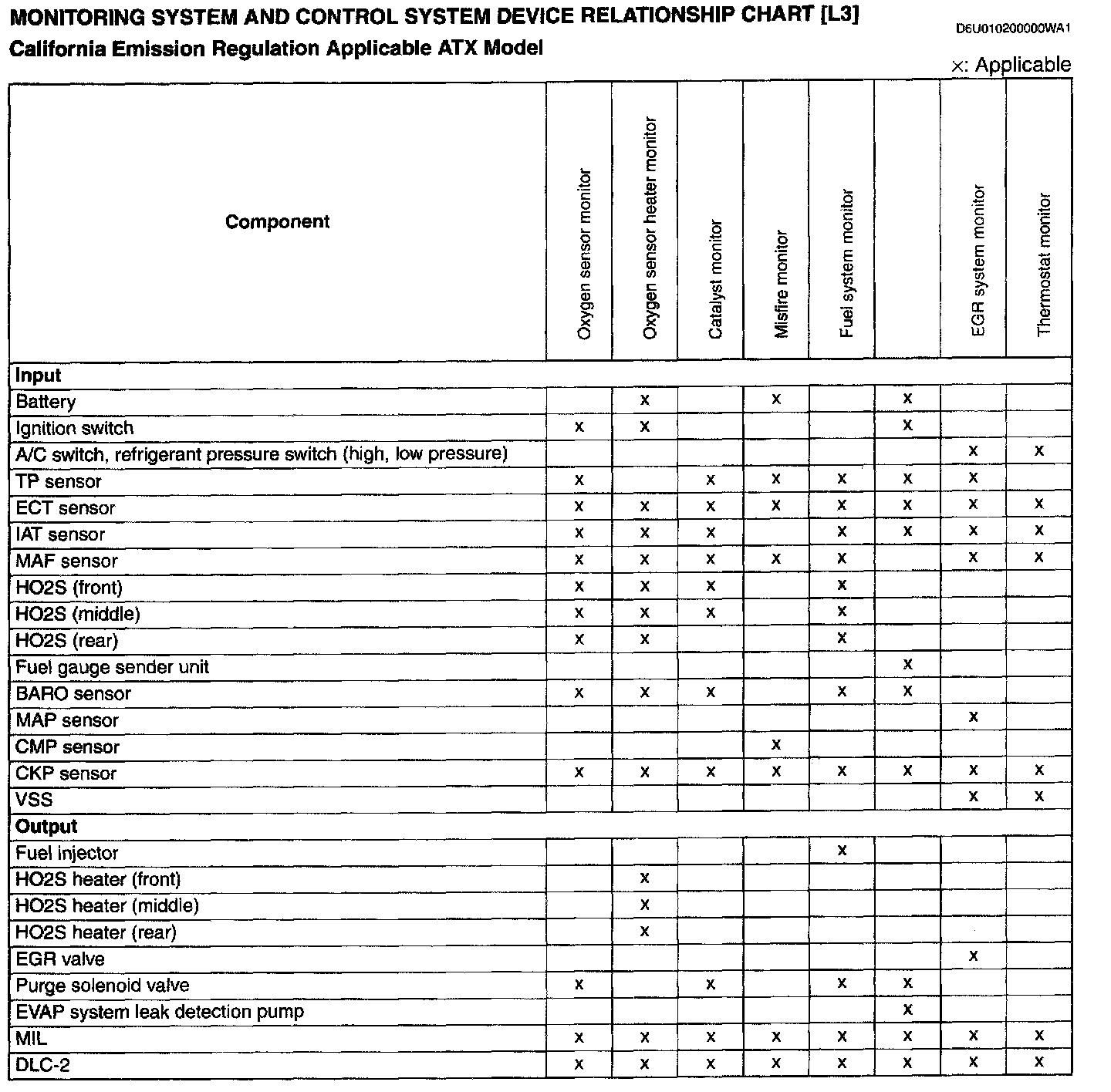

Monitoring System And Control System Device Relationship Chart:



Monitoring System And Control System Device Relationship Chart:
