Monitoring System And Control System Device Relationship Chart

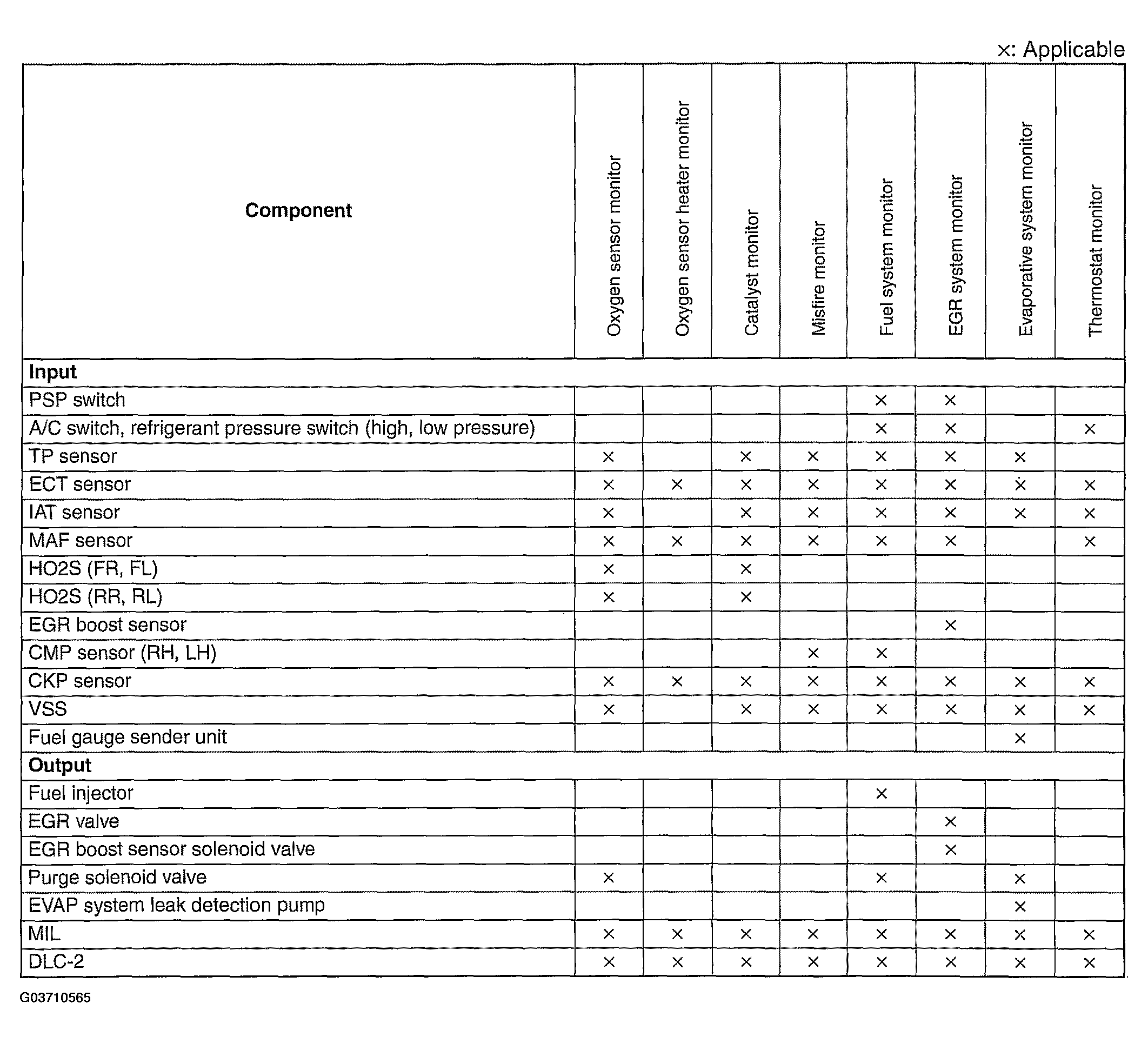

Fig 1: Monitoring System And Control System Device Relationship Chart [AJ]
Courtesy of MAZDA MOTORS CORP.
