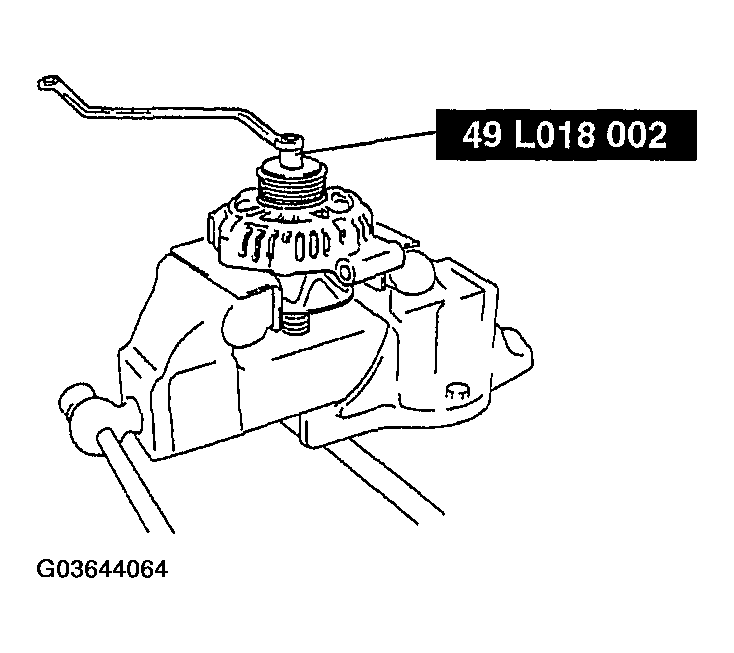

Pulley disassembly/assembly note
- Disassembly/assembly the pulley using the SST.
Tightening torque
60-85 N.m {6.1-8.7 kgf.m, 45-62 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
