Home >> Mazda >> 2005 >> B2300 L4-2.3L VIN D >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Pinpoint Tests >> Communications Network >> Pinpoint Test 1
April 5, 2026: LEMON Manuals is launched! Read the announcement.

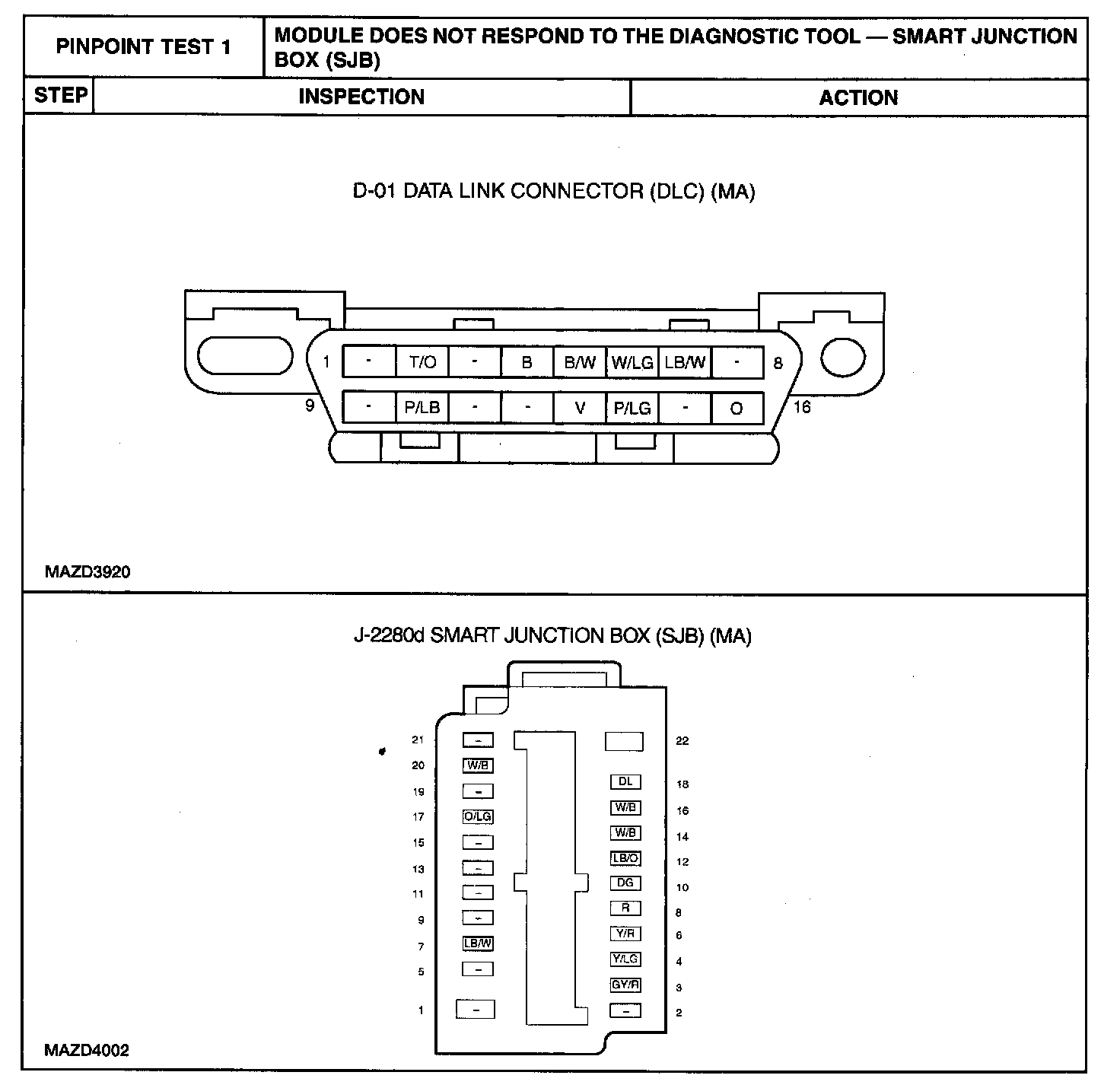

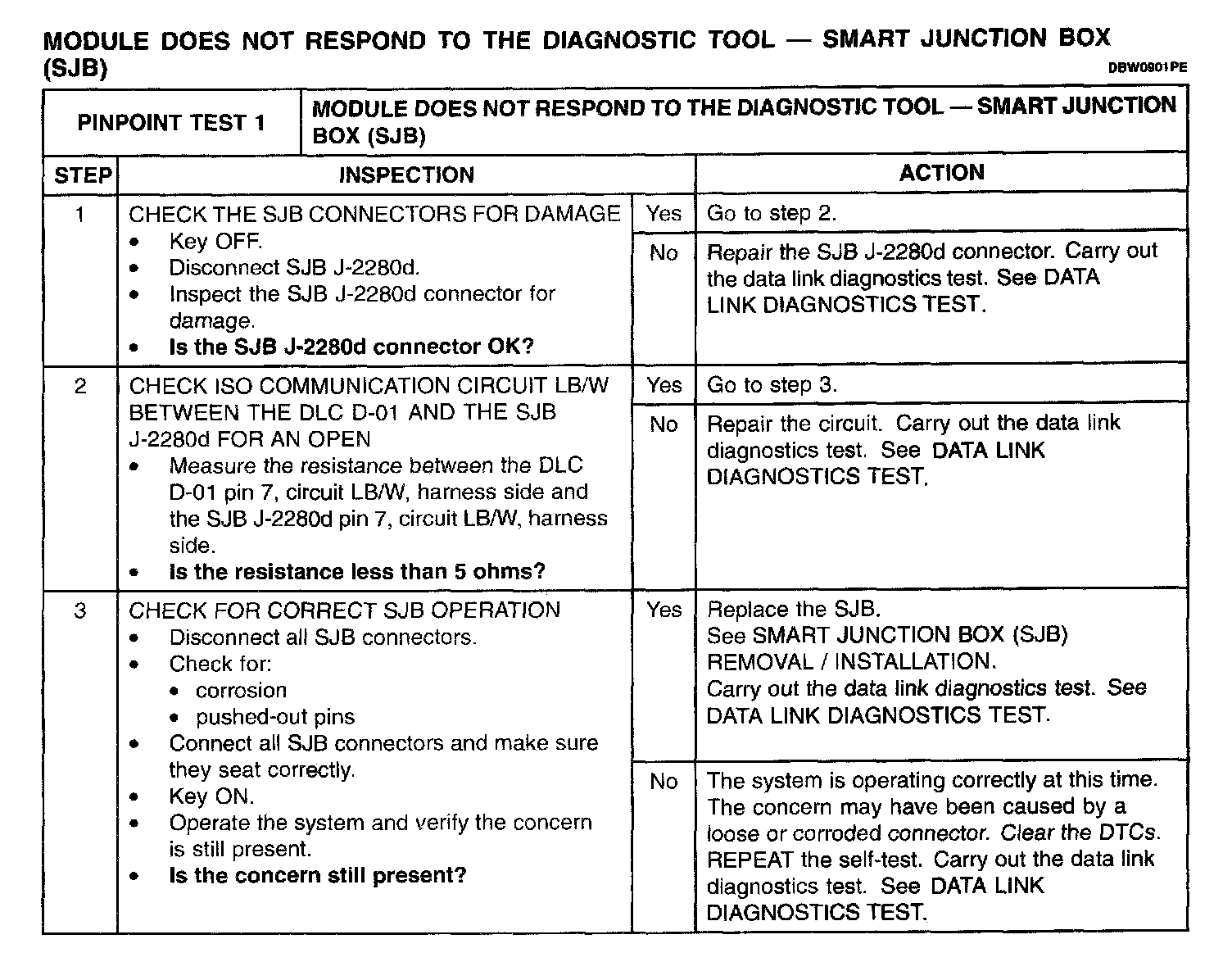

Pinpoint Test 1

Step 1 - 3:
