Manual Transmission/Transaxle

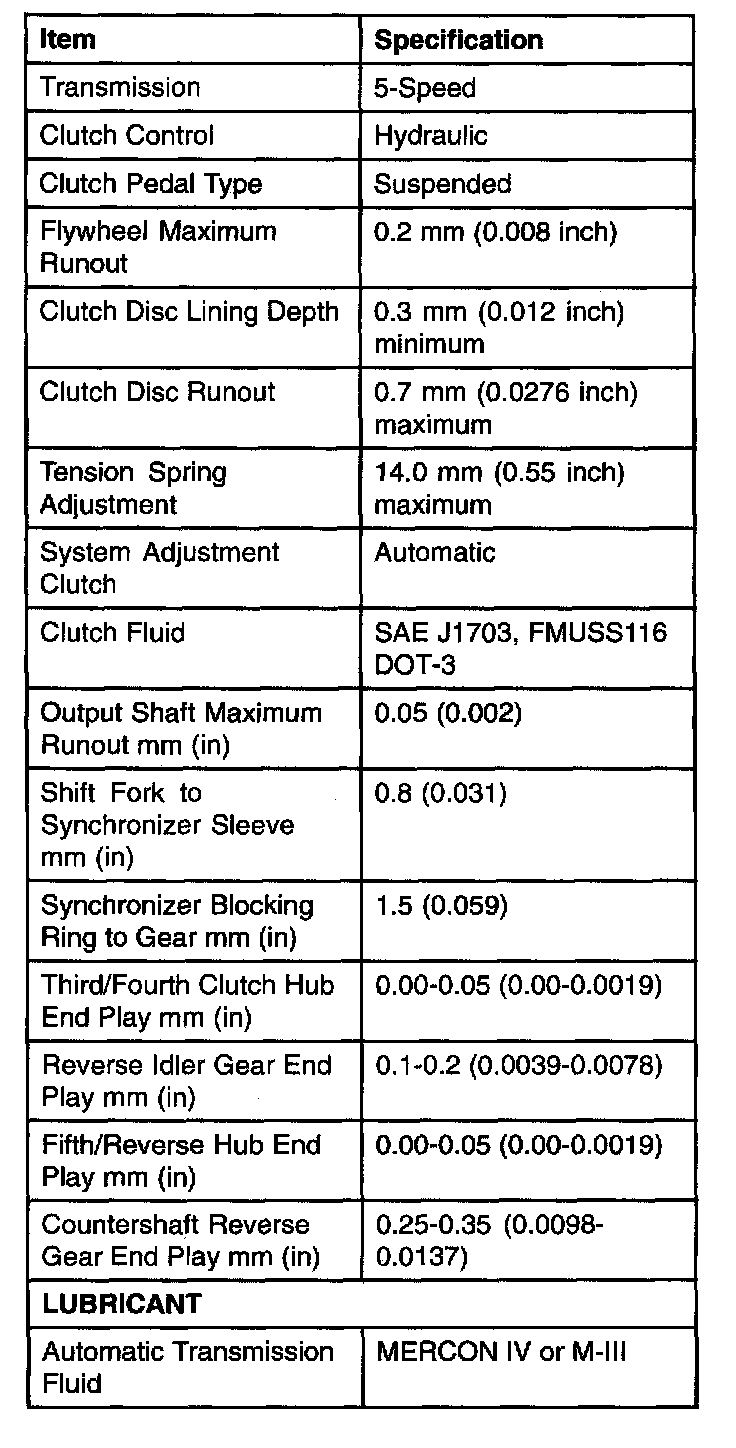

General Specifications





Manual Transmission Specifications 5 Speed Overdrive (2.3L and 3.0L)








Manual Transmission Specifications 5 Speed Overdrive (4.0L)








Clutch Specifications (2.31L and 3.01L)





Clutch Specifications (4.01L)


Oil Pan





Tighten the oil pan bolts.
Use a crisscross sequence to tighten the oil pan bolts.
