2.3L engine

Remove the bolts and the accelerator control splash shield.

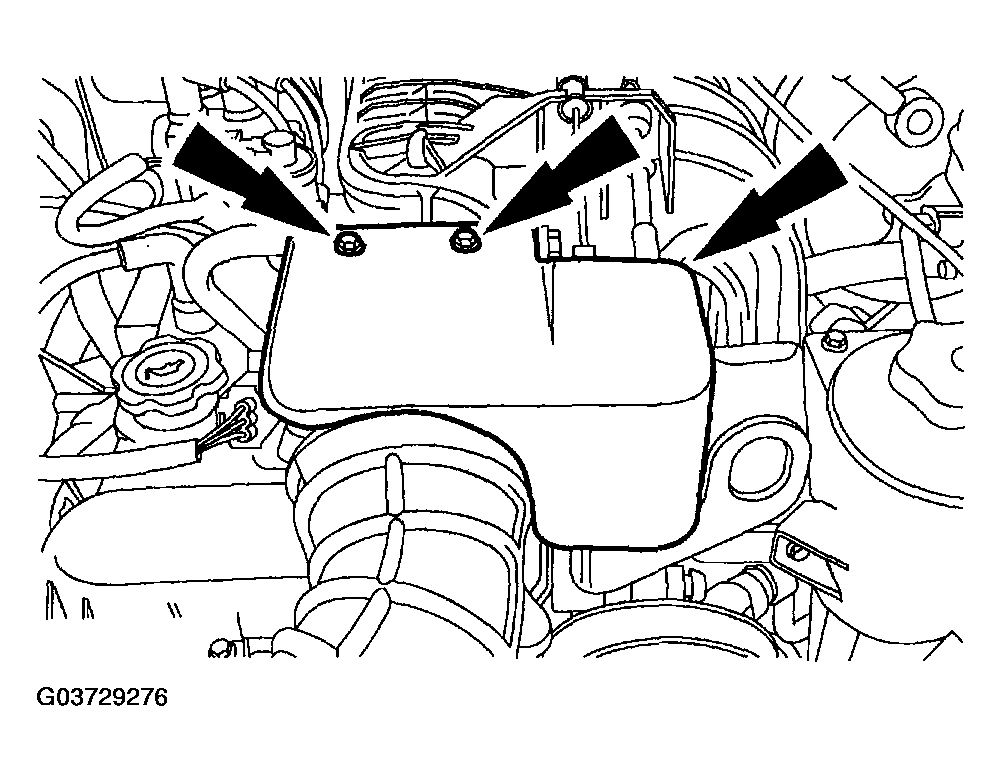

Fig 1: Removing Bolts And Accelerator Control Splash Shield (2.3L Engine)
Courtesy of MAZDA MOTORS CORP.
Disconnect the cruise control cable.
- Disconnect the cable from the throttle lever.
- Press the tabs and separate the cruise control cable from the intake manifold.

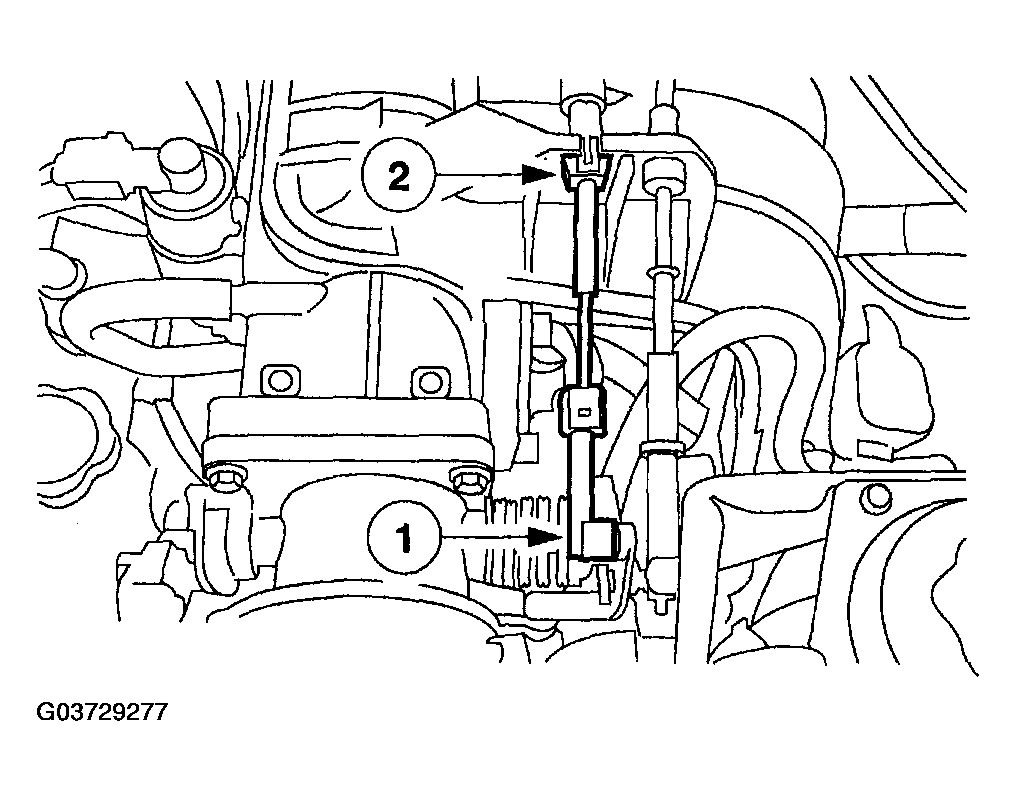

Fig 2: Disconnecting Cruise Control Cable
Courtesy of MAZDA MOTORS CORP.
