Audio Unit Removal/Inspection

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
  2. Using the special tool, remove the audio unit.

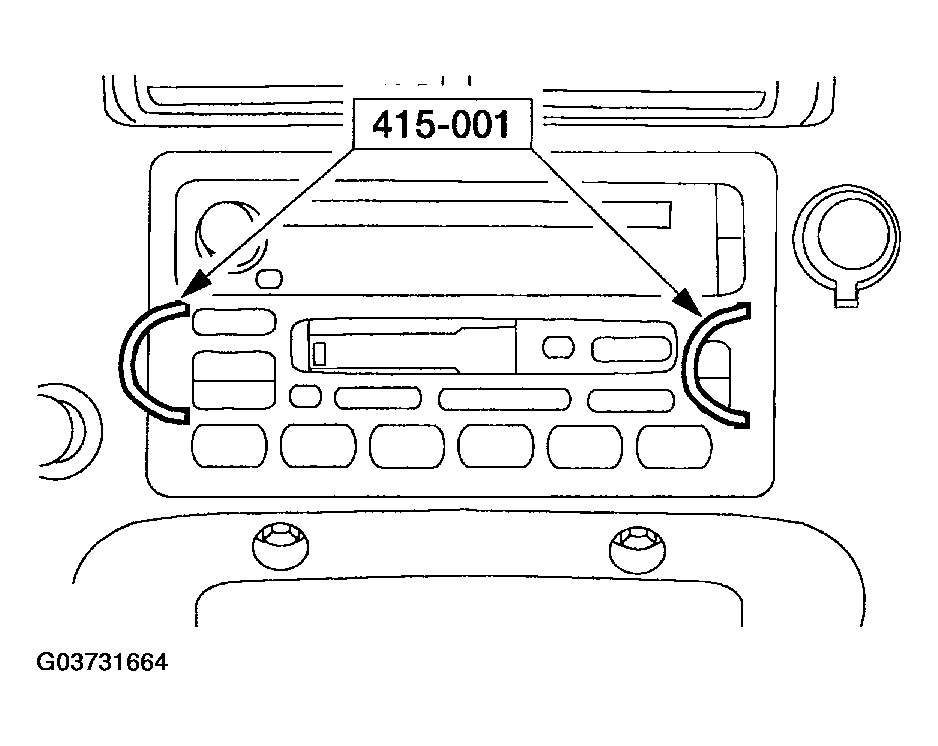

    3. Fig 1: Removing Audio Unit Using Special Tool
    G03731664Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the connectors.

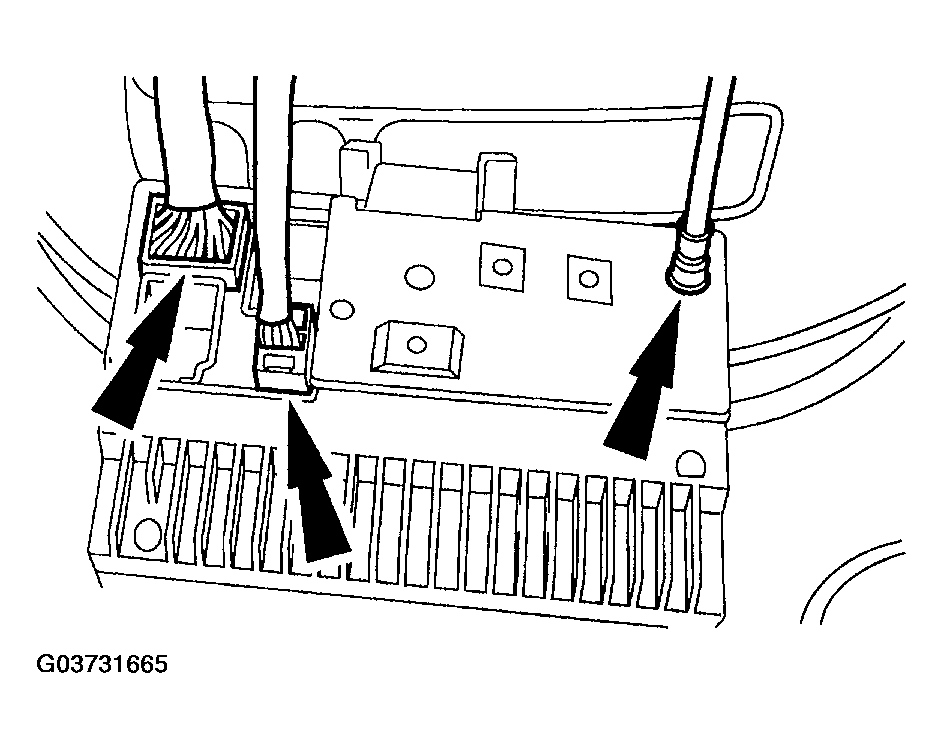

    4. Fig 2: Disconnecting Connectors
    G03731665Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
